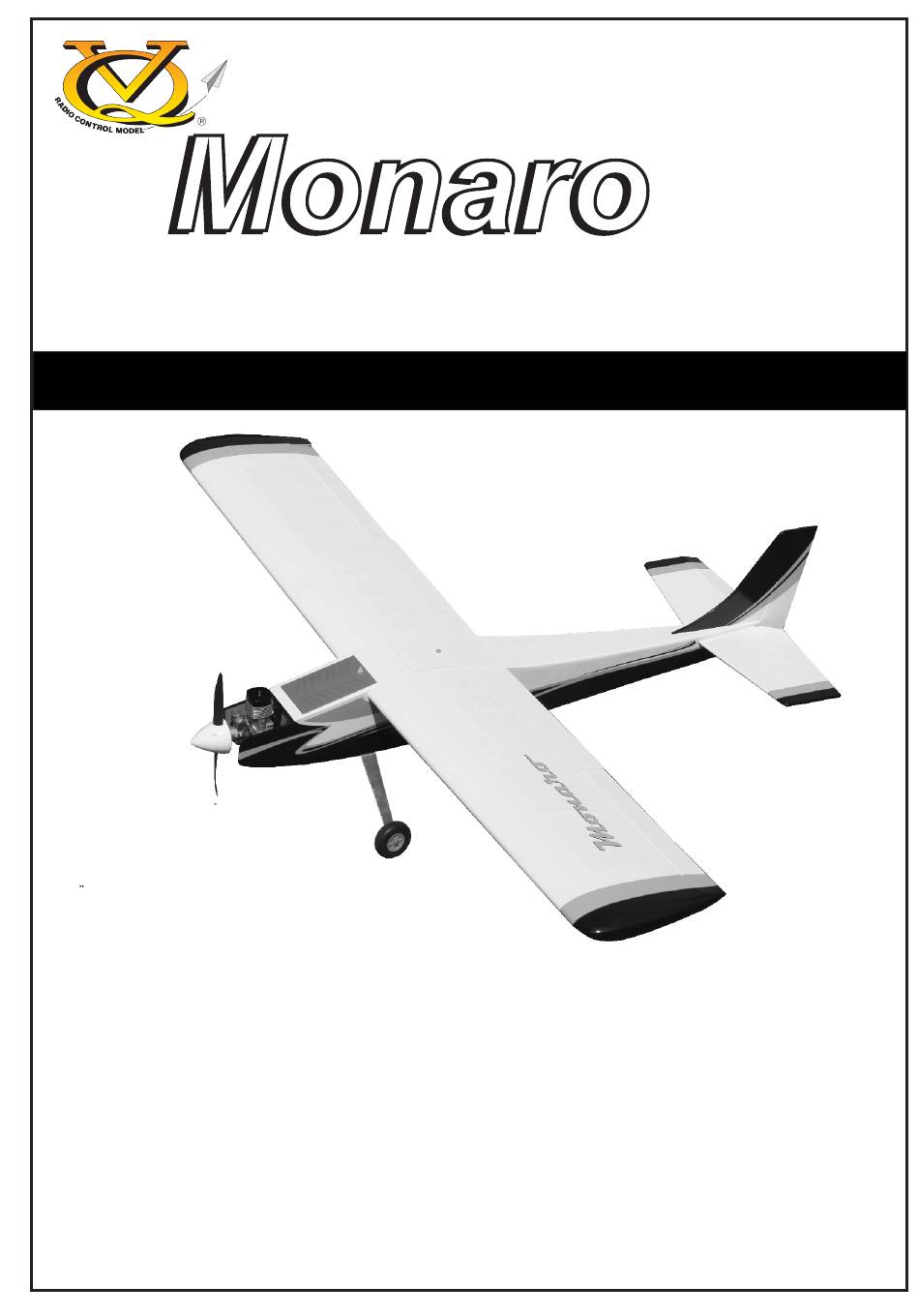

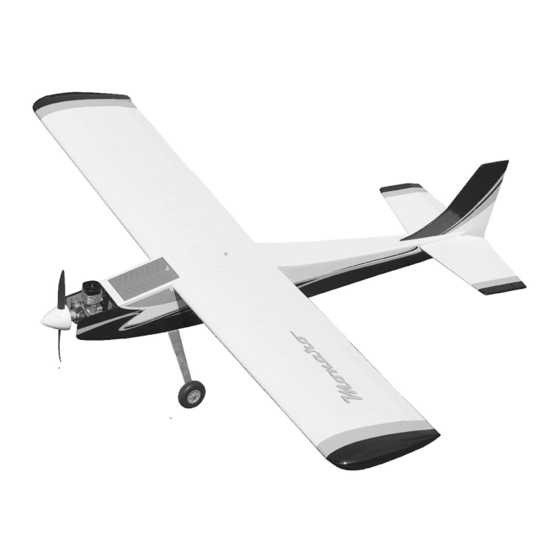

INSTRUCTION MANUAL / Montageanleitung
TECHNISCHE DATEN
Spannweiter
Lange
Elektroantrieb
1000 Watt (BOOST 90)
Verbrennerantrieb
Fernsteuerung
SPECIFICATIONS
Wingspan
Length
Electric Motor
1000 Watt (BOOST 90)
Glow Engine
Radio
5 Channel / 5 Servos
WARNING! This radio controlled model is NOT a toy. If modified or flown carelessly it could go out of controll and
cause serious human injury or property damage. Before flying your airplane, ensure the air field is spacious enough.
Always fly it outdoors in safe areas and seek professional advice if you are unexperienced.
ACHTUNG! Dieses ferngesteuerte Modell ist KEIN Spielzeug! Es ist für fortgeschrittene Modellflugpiloten bestimmt,
die ausreichende Erfahrung im Umgang mit derartigen Modellen besitzen Bei unsachgemäßer Verwendung kann
hoher Personen- und/oder Sachschaden entstehen. Fragen Sie in einem Modellbauverein in Ihrer Nähe um
professionelle Unterstützung, wenn Sie Hilfe im Bau und Betrieb benötigen. Der Zusammenbau dieses Modells ist
durch die vielen Abbildungen selbsterklärend und ist für fortgeschrittene, erfahrene Modellbauer bestimmt.
Radio control model - RC Flugmodell
1710mm
1030mm
60 2-T / 90 4-T
5 Kanal / 5 Servos
67.3 in.
51.1 in.
60 2-T / 90cc 4-T
SPORT
60 Class - 2 Cycle engine
90 Class - 4 Cycle engine
Or electric equivalent
60

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VQA128 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for VQ Models VQA128

Summary of Contents for VQ Models VQA128

  • Page 1 Radio control model - RC Flugmodell SPORT 60 Class - 2 Cycle engine 90 Class - 4 Cycle engine Or electric equivalent INSTRUCTION MANUAL / Montageanleitung TECHNISCHE DATEN Spannweiter 1710mm Lange 1030mm Elektroantrieb 1000 Watt (BOOST 90) Verbrennerantrieb 60 2-T / 90 4-T Fernsteuerung 5 Kanal / 5 Servos SPECIFICATIONS...
  • Page 2 REQUIRED FOR OPERATION (Purchase separately) Extension for aileron servo. 70A Regler 1000w Brushless Motor .60 - 2 cycle .90 - 4 cycle Minimum 5 channel radio for airplane with 5 servos .Motor control x1 .Aileron x2 .Elevator x1 .Rudder x1 Li-Po Battery, 22.2V, 5300mAH Silicone tube GLUE...

  • Page 3: Landing Gear

    1- Landing gear IN CASE OF NOSE GEAR USING 3x15mm screw ...4 Cut away only the covering 3x15mm screw * WARNING: When removing any covering from the airframe, please ensure that you secure the cut edge with CA or similar cement. This will ensure the covering remain tight.
  • Page 4 2- Nose gear 65mm wheel 3x15mm screw ...4 1-Securely attach the nose gear mount to the fire-wall using the four 3x15mm screws 2-Insert the white plastic tube into the fuselage, through the firewall. 3-Insert the Z-bend of the nose gear control push-rod into the hole on the nose gear control horn. 4-Insert the pus-hrod into the plastic tube 5-Position the nose gear control horn on the center of the nose gear mount.

  • Page 5: Electric Motor

    4- Engine Remove the magnetic top hatch from the fuselage 4x30mm screw 3x25mm screw 4x30mm screw ...4 3x25mm screw ....4 5- Electric Motor 5x80mm..4 5mm washer...16 5mm nut..12...

  • Page 6: Horizontal Stabilizer

    6- Electric Motor 7- Horizontal stabilizer Remove the covering material from over both the foot of the vertical stabilizer hole. Cut away only the covering Pull the left and right elevator out of the horizontal stabilizer.
  • Page 7 Trial fit the horizontal stabilizer in place on the 8- Horizontal stabilizer fuselage. Check the alignment of the horizontal stabilizer by measuring from a fixed point along the center line of the fuselage to the leading edge on each side of the horizontal stabilizer. The distance must be equal on both sides.

  • Page 8: Vertical Stabilizer

    9- Vertical stabilizer Full the rudder out of the vertical stabilizer. Trial fit the vertical stabilizer in place on the fuselage. Check the alignment of the vertical stabilizer. Using the pencil trace around the right and left of the stabilizer where it meets the fuselage. Remove the vertical stabilizer from the fuselage.
  • Page 9 10- Rudder and Elevator Apply thin CA to both side of the hinge STABILIZER Hinge Securely glue together. If coming off during flight, you lose control of your air plane. Control horn ...1 Cut away only the covering...

  • Page 10: Control Horn

    11- Control horn Cut away only the covering Control horn ...2 12- Tail wheel Piece of fuel tube (not included) Collar Horn ....1 Tail gear mount 2.2mm collar..1 Vis 3x12mm..2 Horn 3x12mm screw Tail wheel..1 Tail gear mount ....1 Tail wheel mount Gear Horn 5/64”...
  • Page 11 14- Wing -Remove the magnetic wing hatch from the fuselage. -Slide the aluminum tube throughout the fuselage. -Secure the wings in place using two nylon bolts FUSELAGE - TOP VIEW 15- Servo Rudder push rod Elevator push rod Throttle push rod ..3 ..1 2x900mm ( Rudder and elevator push rod)

  • Page 12: Control Surface

    16- Balance The recommended C.G (Center of Gravity) location for the Monaro is 89 ~ 92mm Adjust the location of the battery pack as required to achieve this C.G location. If necessary , add weight to either the tail or nose until the correct balance is achieve. 89 ~ 92mm WARNING ! Securely install the receiver and power pack, ensuring they will not come loose or rattle during flight.
