11
11A
Cut away only
the covering
11B

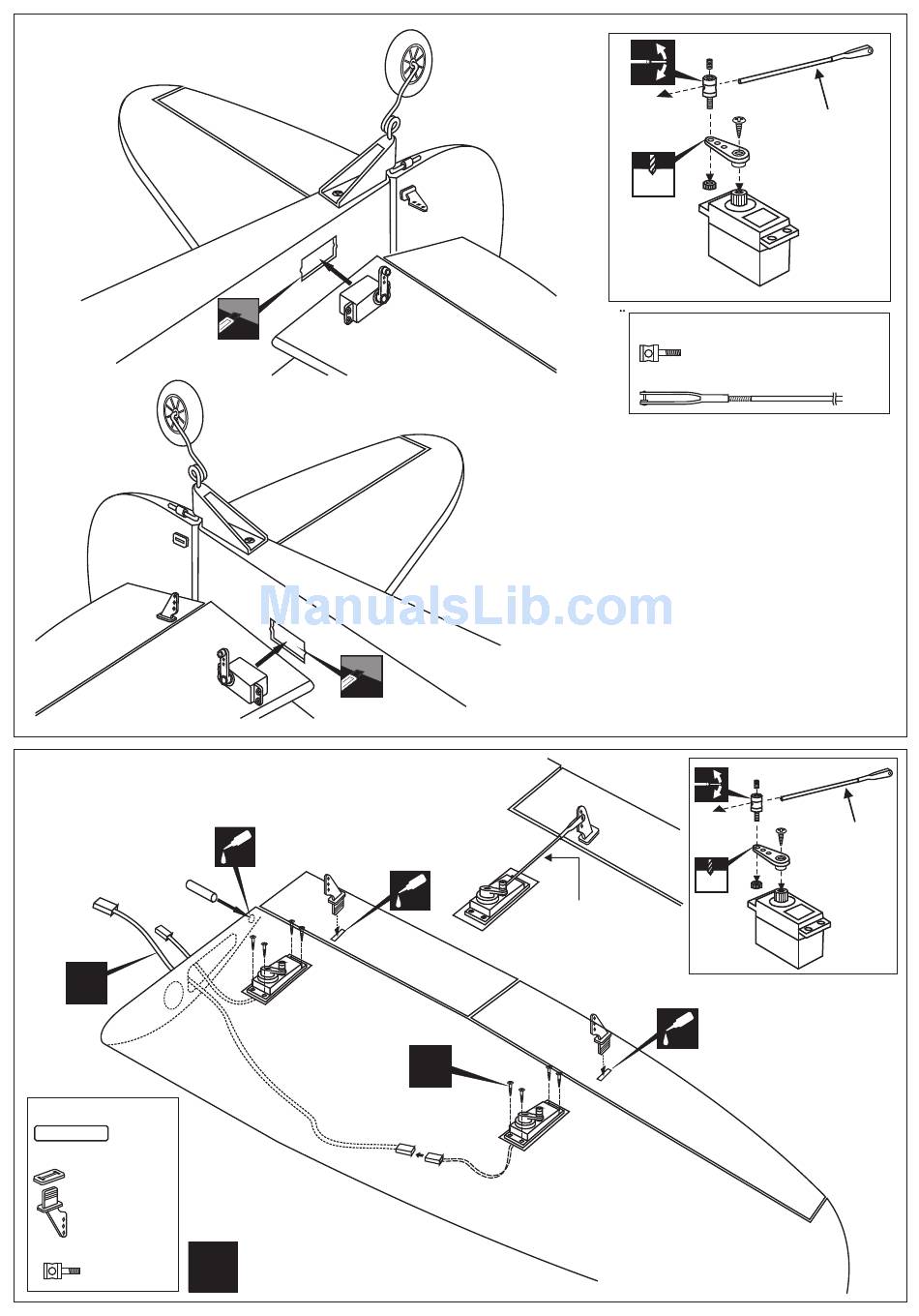

Elevator servo
12
6x22mm
wooden dowel
Aileron extension
cord
X
6x22mm dowel
........1
Plastic control horn
.....................2
Linkage Stopper set
L/R
.................2
Rudder servo
Cut away only
the covering
CA
Wing - bottom view
CA
Aileron pushrod
X
3mm set Screw
Elevator and rudder
pushrod
D=5/64"(2mm)
2 mm
Elevator and
Rudder servo
Linkage Stopper set
.................21
175mm pushrod
3mm set Screw
2 mm
CA
......2
Aileron and flap
pushrod
Elevator and
Rudder servo
