VQ Models SCOOTER Instruction Manual page 7

5
Control horn
...........2
6
6A
6C

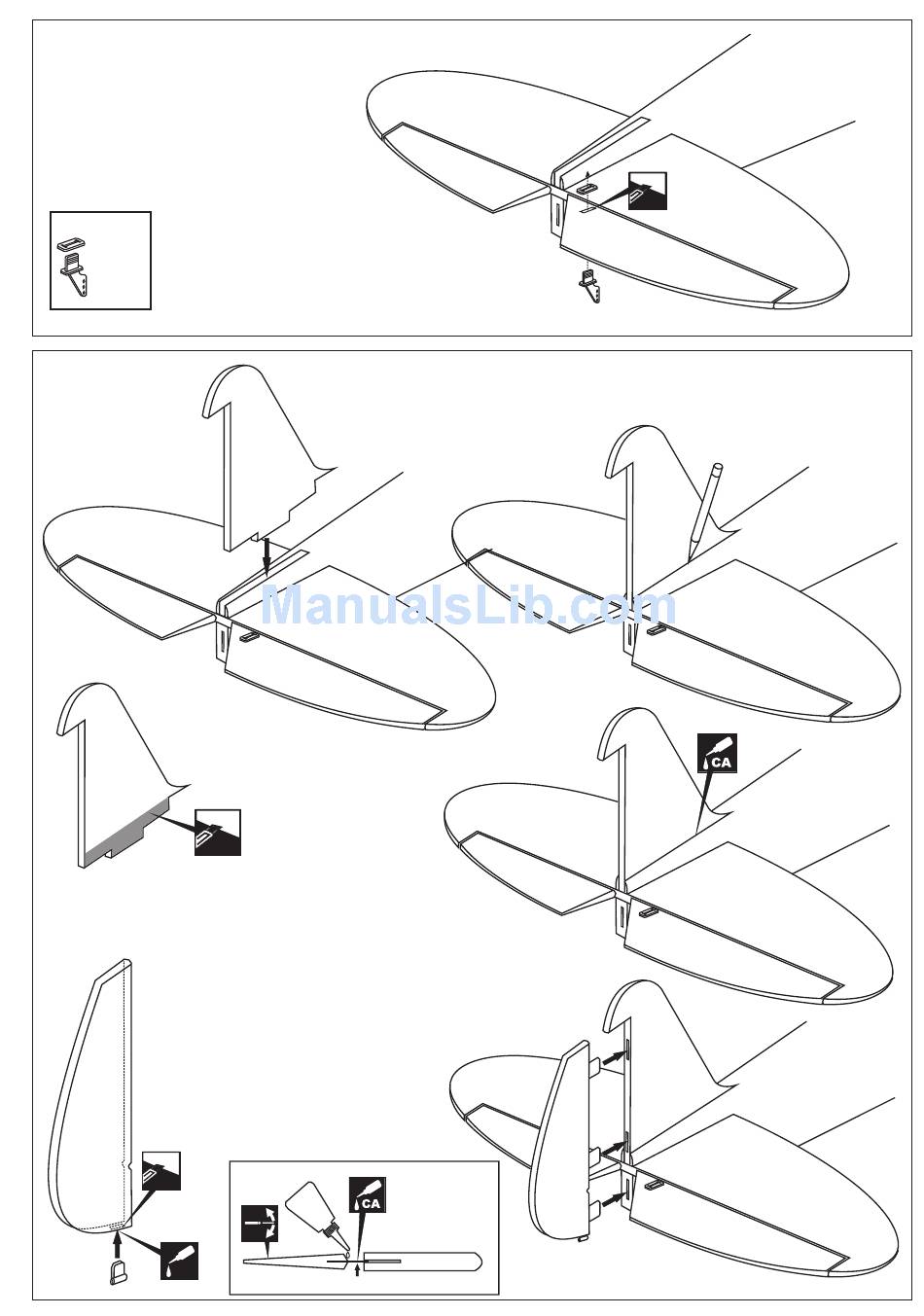

Carefully, cut away only the
covering inside the line, both
side of the vertical fin.
* WARNING: When removing any covering from the airframe,
please ensure that you secure the cut edge with CA or similar
cement. This will ensure the covering remain tight.
6E
Carefully, cut a slot on the
bottom of the rudder for the
tail gear horn installation.
CA
Note: The slots for the control horn
installation are pre- cut at factory.
Again, push the vertical fin onto the fuselage,
when you are satisfied with the alignment,
secure the vertical fin in place using CA glue
! Securely glue together If coming off during
fly, you lose control of your air plane.
Petroleum jelly
Thin CA glue
STABILIZER
Hinge
Cut away only
the covering.
When you are satisfied with the alignment, use a pencil to
trace around the right and left of the stabilizer where it
meets the fuselage.
6B
6F
Thin CA glue
6D
