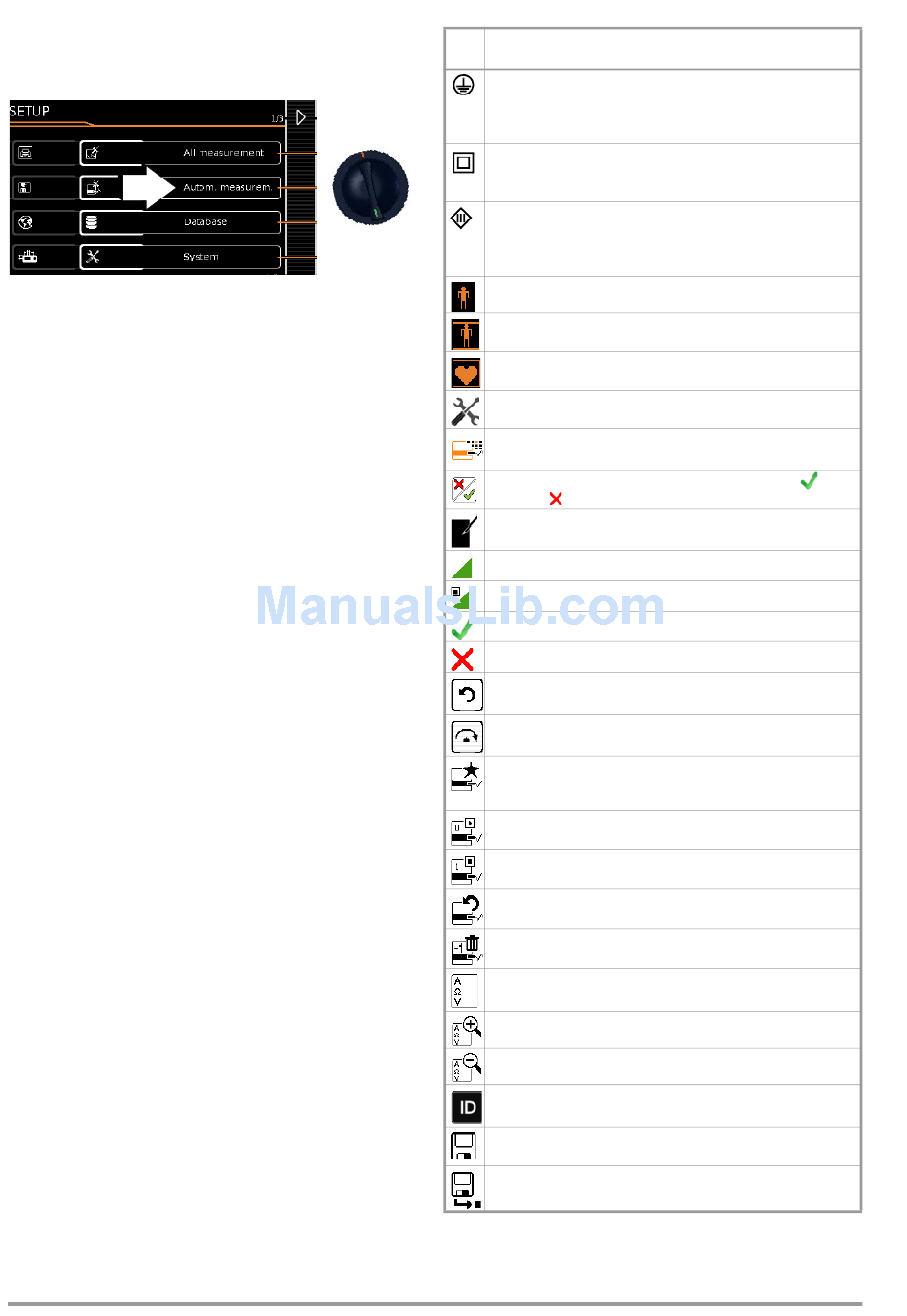

General Settings (Setup: auto measurements parameter)
The following settings can be entered for all test sequences in the
SETUP switch position on menu page 1/3 under the auto measure-
ments parameter:
❑ At the End of the Sequence
At the end of a sequence, either the save symbol appears in
order to prompt storage ("memory screen" parameter), or the
results list ("results list" parameter) is displayed.
❑ Considering Measuring Uncertainty
If Yes is selected, measuring uncertainty is taken into consider-
ation when the measurement results are displayed. The final
result which appears at the display is downgraded by an
amount equal to measuring uncertainty.
❑ Auto Measuring Point
If Yes is selected, the test instrument detects whether or not
the protective conductor is contacted with the probe during
the protective conductor resistance measurement and auto-
matically starts recording a new measuring point. Statuses are
indicated by various, continuous acoustic signals. The protec-
tive conductor test can thus be conducted without using the
keys on the instrument.
❑ Initial Window Style
Selection can be made here between a tree view and a detail
view for the first page of the test sequence (see section 10.2).
❑ Limit Value Mode
If you want to use the limit values specified in the standards to
evaluate the measurements, set the parameter to Normal.
When set to Expert, the LIMIT softkey appears next to the
"measurement failed" popup if the measurement has not been
passed. This key makes it possible to enter a user-defined
limit value (as a rule a limit value specified by the manufacturer
which deviates from the standard), in order to allow the test to
be passed under these new conditions.
52
Meaning of Symbols in the User Interface – Test Sequence
Sym-
Softkey Variants, Test Sequence
bol
Test for Protection Class I Devices
Exposed, conductive parts are connected to the protec-
tive conductor so that they are not charged with voltage if
the basic insulation should fail.
SETUP
Test for Protection Class II Devices
These devices are equipped with double insulation or
reinforced insulation.
Test for Protection Class III Devices
These devices are supplied with safety extra-low voltage
(SELV). Beyond this, no voltages are generated which
exceed SELV.
Type B applied parts (body)
Type BF applied parts (body float)
Type CF applied parts (cardiac float)
Configure sequence parameters (see page 54)
Set classification parameters
Assess visual inspection or function test with OK
or not OK
Enter a comment, e.g. for the visual inspection or function
test
Continue test, next test step in the test sequence
Stop continuous measurement, next test in test sequence
Accept changed parameter, return to memory view
Stop test sequence
– Repeat inspection (if it has been failed).
– Repeat test step
– Skip inspection test step
– Skip individual tests within the test sequence
Start evaluation – record measured value. Each time this
softkey is pressed, an additional measured value is saved
and the number is increased by one.
Start evaluation sequence during a continuous measurement.
The number blinks.
Record measured value during the evaluation sequence of a
continuous measurement.
Repeat measured value recording
Delete measured value
Display measured values
Display details from the results list
Hide details from the results list
The ID number to which the measurement(s) will be stored
can be entered here.
Valid measured values have been obtained for a test
sequence. This measurement can be saved.
Save measurement data as (with display of directory path
/ ID or new entry of an ID other than the preselected one)
(toggle key)
