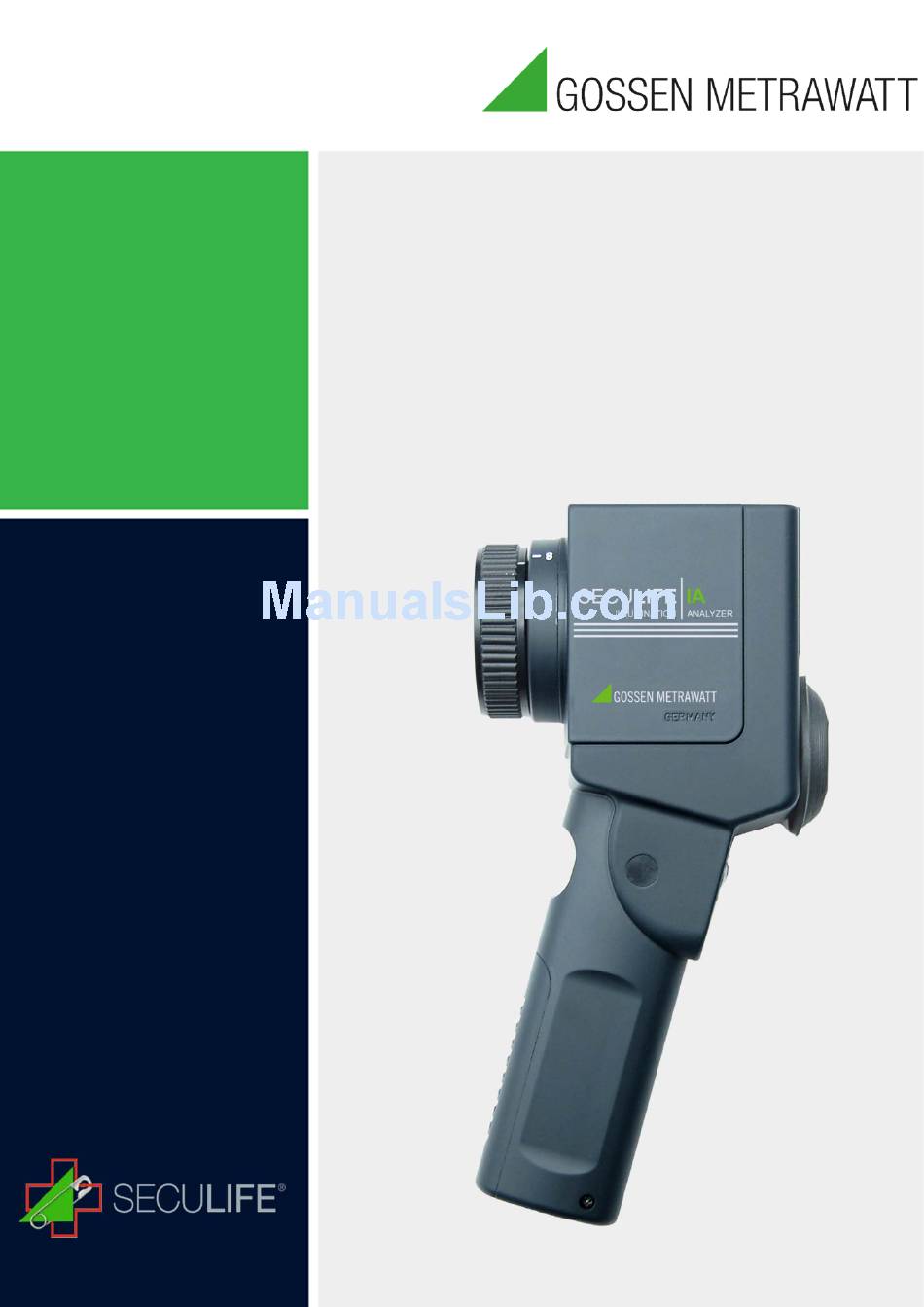

- Page 1 QUICK SETUP GUIDE SECULIFE IA...

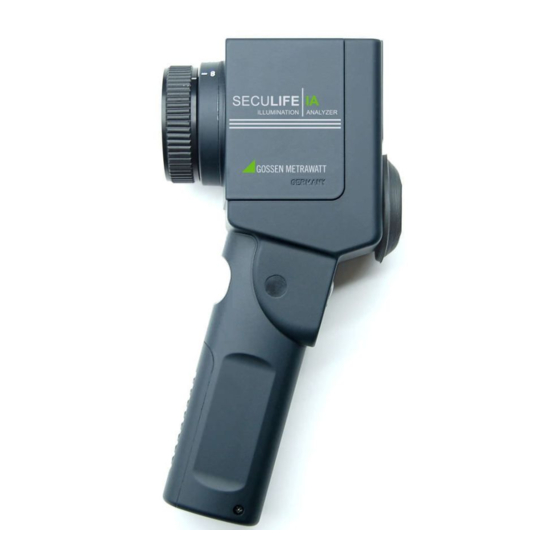

- Page 2 The SECULIFE is a high-precision measuring instrument with a measuring angle of 1°. Luminance measurements at distances of 1 meter to infinity can be performed with the instrument. The SECULIFE features mirror reflex optics with a 15° field of view, a sharply marked 1° measuring circle at the center and a focusing mechanism.
- Page 3 Your SECULIFE will be delivered in an aluminum case, including USB-Cable, Battery, GLUX2 Software for Data recording and the Instruction book. Tripod socket Close-Up Lens 1 (51 to 100cm) Close-Up Lens 2 (34 to 50cm) Probe for contact measurement incl. Adapter disc Reflectance standard for indirect illuminance measurement Carrying strap...
- Page 4 The display panel and its elements 1 Memory location display 2 Measured value and memory display 3 Unit of measure 4 Symbol for correction factors 1 and 2 5 Difference symbol 6 Ratio symbol 7 Percentage deviation symbol 8 Calculated value, memory group 9 Plus or minus sign for calculated value 10 Low battery warning display 11 USB indicator...
- Page 5 The Protective Filter Screw the included protective filter or one of the close-up lenses or the attachment for contact measurements (optional accessory) onto the lens of your SECULIFE IA. Either the protective filter, a close-up lens or the attachment for contact...
- Page 6 Lumi function. Look through the eyepiece on the SECULIFE IA, and sharply focus your measuring field with the focusing mechanism at the lens. Now align the measuring circle reflected into the viewfinder to the point to be measured. This point should be uniformly illuminated, and as large as possible relative to the measuring circle.
- Page 7 Lumi function. Look through the eyepiece on the SECULIFE IA, and sharply focus your measuring field with the focusing mechanism at the lens. Now align the measuring circle reflected into the viewfinder to the point to be measured. This point should be uniformly illuminated, and as large as possible relative to the measuring circle.
- Page 8 Memory Functions In addition to its display memory, the SECULIFE is also equipped with a measured value memory with 1000 memory locations. This function allows you to perform measurements on-site, and to read them out at a later point in time. Stored values are retained when the instrument is switched off, as well as when the batteries are replaced.
- Page 9 Editing Measured Values (Mem Edit): Stored measured values can be overwritten with the Mem function. • Select the memory location to be edited with the MFK. • Press the key in order to freeze the memory location. “Edit” and the selected memory location is shown in the display Indicating that you are up to overwrite the current mem-cell •...
- Page 10 Setting Correction Factors: As many as two different correction factors can be entered to the SECULIFE IA. As default values, Corr1 is set to a factor of 1.000 (no correction) and Corr2 to a factor of 3.142.
- Page 11 Qubyx (PerfectLum) Software: Calibration of high demanding professional displays The SECULIFE is integrated into the software and can be used for comprehensive testing and automatic adjustment of medical monitors, in order to assure constant and consistent image reproduction. PerfectLum include a medical monitor QA application which checks displays for conformity with medical standards such as AAPM TG18, DIN 6868-57, DIN 6868-157, JESRA X-0093 and IEC 62563-1.
- Page 12 GMC-I Messtechnik GmbH Südwestpark 15 □ 90449 Nürnberg □ Germany TEL +49 911 8602-111 □ FAX +49 911 8602-777 www.gossenmetrwawatt.com □ info@gossenmetrwawatt.com...
