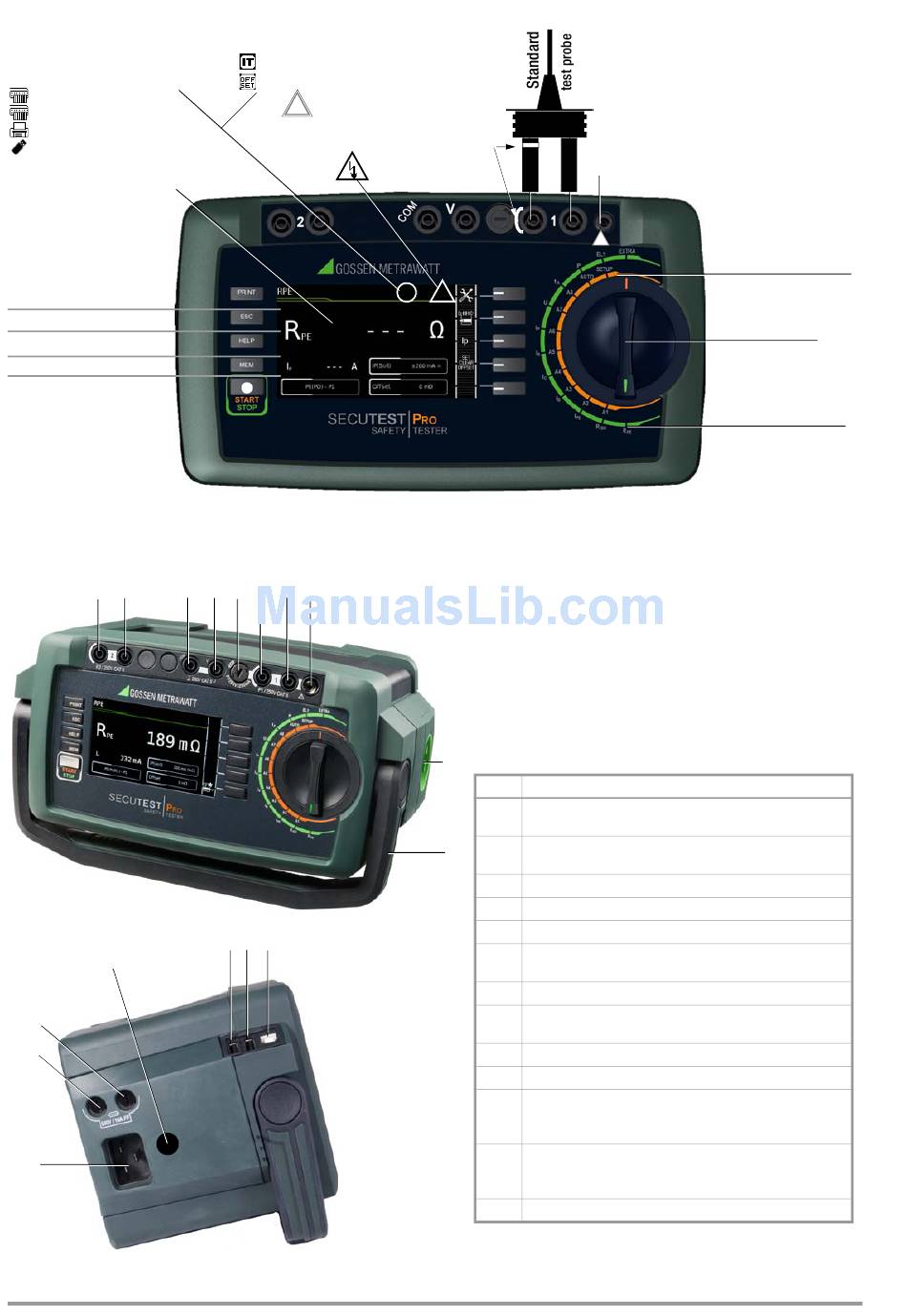

Controls
Display of symbols for
devices connected to the
USB master interface (see below)
– For keyboard *
– For barcode/RFID scanner *
– For printer
– For USB drive
LCD panel
Fixed Function Keys
PRINT: Print via USB
ESC:
Return
HELP: Help images
MEM: Database functions
START: Start/stop
– Single meas.
– Test sequence
Finger contact
* The receiver must be plugged in here for wireless entry devices.
Connections
1
1
11
10
9
8
These operating instructions describe an instrument with software version 1.5.0.
2
Display of special symbols:
– Measurement at IT system active
– Offset for RPE active
!
Lightning symbol:
mains to test socket
2
2
3 4
4
5
12
13
White identified
and fused high
current path
Softkeys
6
No.
Meaning
nd
1
2
test probe for 2-pole measurement
SECUTEST PRO only (or device with feature H01)
2
Voltage measuring inputs
7
SECUTEST PRO only (or device with feature I01))
3
Fuse link for the probe input
4
Test probe connection (P1)
5
Connection (jack socket) for service plug only!
6
Country-specific standard socket (test socket)
for connecting devices under test
7
Carrying handle and tilt stand
8
Country-specific socket for mains power via inlet
plug
9
Fuse link 1 for the mains connection
10
Fuse link 2 for the mains connection
11
Fuse link for 10 A protective conductor test
(additionally with SECUTEST BASE10 (feature G01) or
SECUTEST PRO)
12
USB master for connecting keyboard, barcode/
RFID scanner*, printer and USB flash drive (FAT
formatted, not NTFS)
13
USB slave for connection to a PC
* A list of suitable devices is included in the appendix (see section 14).
Connection for
service plug only
!
Sequences A1 ... A8, AUTO
(automatic test sequences)
Rotary switch level:
Rotary
selector switch
Single measurements
Rotary switch level:
GMC-I Messtechnik GmbH
