- Page 1 Operating Instructions SECULIFE | 15161 Luminance Monitoring 1/7.04 GMC-I Messtechnik GmbH...

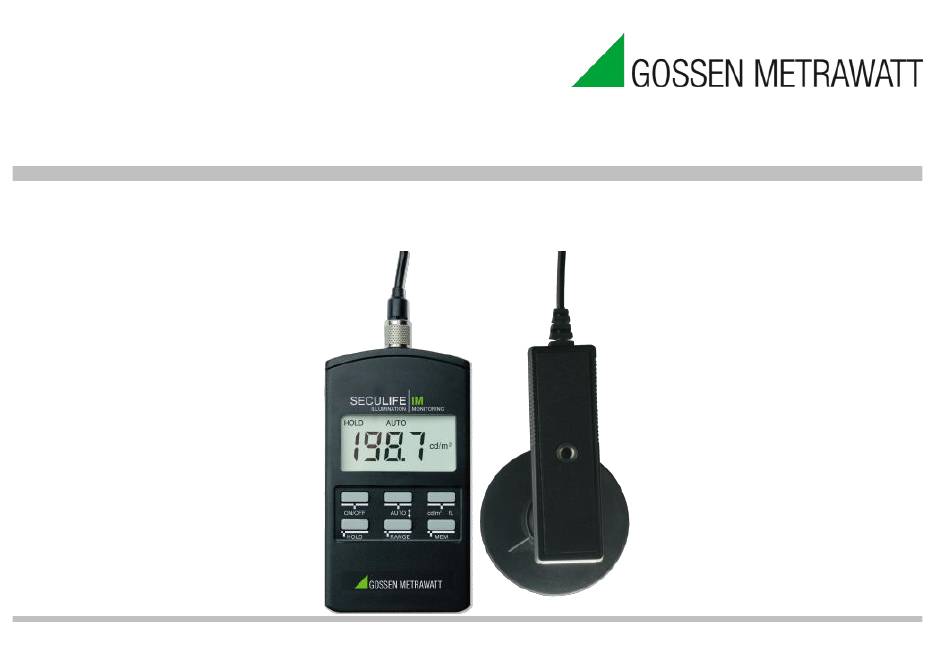

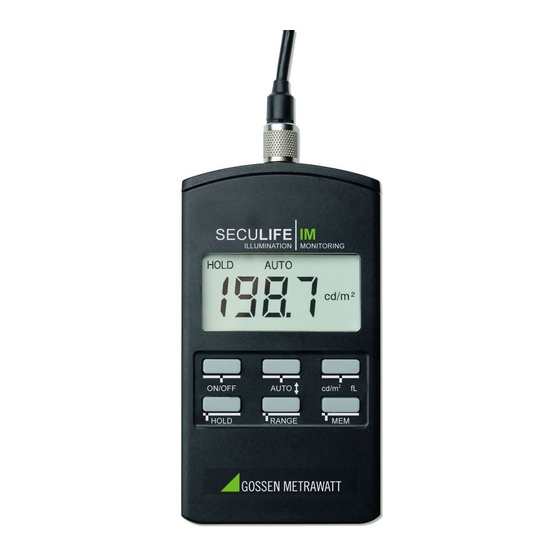

- Page 2 Light measuring probe USB Port Display Light sensor Key pad SECULIFE GMC-I Messtechnik GmbH...
-
Page 3: Table Of Contents
Preparation..........6 Optional accessories....13 Duration of display - Calibration Certificate....13 Continuous operation......6 Servicing and Repairs....14 Functioning of the SECULIFE IM..Switching on – Making Measurement..7 Specifications......14 Selecting the desired measuring unit – cd/m or fL ......... 7 Declaration of conformity...17... -
Page 4: Applications
Applications The SECULIFE Luminance Meter is a handy, easy to use and high precision measuring instrument. It allows the accurate measurement of the luminance in cd/m² or fL. The SECULIFE is ideally suited for contact measurements with the light measuring probe placed direct on luminous or backlighted surfaces (monitors, TV sets,light boxes, light panels). -
Page 5: Display
Display Description of display Key pad Display of measured value and Switching on/off Range key – Memory/Measuring range Memory indication Measurement Unit cd/m fL- Select measurement unit Display „HOLD„ indication Hold - Function Range key – Memory/Measuring range Multiplying factor for measurement value Auto ranging –... -
Page 6: Preparation
Functioning of the SECULIFE Preparation First remove the snap-on cover and open the battery compartment at the back of the meter. Insert the battery included with the meter (1.5 V size AA, IEC LR6) in the battery compartment. Care should be taken to place the battery correctly according to the polarity indications “+“... -
Page 7: Switching On - Making Measurement
Using the SECULIFE Switching on – Making Measurement Press the on/off key and the SECULIFE is immediately in the measuring mode and is measuring at the rate of 2 times per second. The instrument is in the function „AUTO“, i.e. the SECULIFE will select the best suited measuring range for the existing light level. -
Page 8: Memory Functions
Memory Functions is provided in addition to the „Display Hold“ also with a memory for data up to 100 The SECULIFE measurement values. This function allows several measurement operations in the field and read-out at a later time. The data stored in the memory will be maintained, even when the instrument is turned off or the battery is changed. -
Page 9: Mem" - Storing Measurement Value
„Mem“ – Storing measurement value in memory 4.4.2 The measurement value to be memorized is locked by the Hold Hold key in the display. By pressing the key Mem you will enter the value to be stored in the next free memory location. An acoustic signal confirms „value stored in memory“. -
Page 10: Mem Edit" - Deleting A Value In Memory
„Mem-Edit“ – Deleting a value in memory and entering a new value 4.4.3 The Mavolux offers the function „Mem Edit“ for correcting a Hold value stored in the memory. Measure again, press the Hold key and the new value is locked. Then by pressing one of the range keys, you can browse through the memory. -
Page 11: Mem Recall" -Data Memory Recall
„Mem Recall“ –Data memory Recall 4.4.4 Start in the function „Measuring“ and press the key Mem. The last memory location filled will be indicated first. Press one of the range keys to browse through the data memory. The current memory location is indicated in the display alternating with the measurement value stored in the memory. -
Page 12: Mem Clear" - Clear Memory
„Mem-Clear“ – Clear memory 4.4.5 must be in function „HOLD“. The SECULIFE When pressing simultaneously the Range keys, you clear the complete measuring data memory. The cancelling is confirmed by an acoustic signal and three dashes in the display. USB Port – Standard Software The SECULIFE is equipped with a USB Port which allows the meter to be connected to a PC with the USB cable (supplied). -
Page 13: Accessories
Accessories Standard Equipment Leather carrying case Battery Standard Software on CD-ROM USB-cable Instruction Manual Optional Accessories SECULIFE (ordering no. M688D) For precision spot metering of the luminance, non contact, at a distance from 34 cm to , with measuring angle of 1 degree. The ambient light is being taken into consideration in the measurement. -
Page 14: Servicing And Repairs
Calibration reference: Scientific Standard Lamps, type Wi 41G of the PTB (Physikalische Technische Bundesanstalt Braunschweig – National Standard Institute of Germany). Depending on how the instrument is being used we recommend a recalibration interval between 12 and 18 months. For this purpose please contact our Calibration Service Department (telephone +49 911 8602 172). - Page 15 Read-out 7 segments, 3 digits, 13 mm „OL“ in the display Overload signal 100 memory locations, display indication „FLL“ = memory full Memory for measurement values Port USB 1.1 Power Supply one 1.5 V alkaline – manganese cell, size AA (IEC LR 6) or suitable rechargeable Battery battery approx.
- Page 16 The SECULIFE meets the Specifications 89/336/EWG dt. 01.01.1996 Characteristics SECULIFE Meas. Quantity Measuring Range Resolution Resolution in Candela/m (cd/m in footLambert (fL) in cd/m in fL Luminance 0.01... 19.99 0.001... 1.999 0.01 0.001 0.1... 199.9 0.01... 19.99 0.01 1... 1 999 0.1...
-
Page 17: Declaration Of Conformity
EG - KONFORMITÄTSERKLÄRUNG DECLARATION OF CONFORMIT Dokument-Nr./ Document.No.: 103/2004 GOSSEN Foto- und Lichtmesstechnik GmbH Hersteller/ Manufacturer: Anschrift / Address: Thomas-Mann-Str.16-20 90471 Nürnberg Leuchtdichtemessgerät/Luminance Meter Produktbezeichnung/ Product name: MAVO-MONITOR USB Typ / Type: Bestell-Nr / Order No: M504G / M506G Das bezeichnete Produkt stimmt mit den Vorschriften folgender Europäischer Richtlinien überein, nachgewiesen durch die vollständige Einhaltung folgender Normen: The above mentioned product has been manufactured according to the regulations of the following European directives proven through complete compliance with the following standards: Nr. - Page 18 GMC-I Messtechnik GmbH is also a leading provider for other interesting light measuring instrumemts: -SECULIFE 5032 C USB: Digital precision instrument for measuring the illuminance in lx or fc, classified acc. to DIN 5032, Part 7 and CIE 69 in Class C. Ideally suited for use in industry, trade institutes and inspection authorities, also for very high light intensities.
- Page 19 Notes GMC-I Messtechnik GmbH...
- Page 20 Product Support If required, please contact: GMC-I Messtechnik GmbH Product Support Hotline Phone +49 911 8602-0 +49 911 8602-709 E-Mail support@ gossenmetrawatt.com Edited in Germany • Subject to change without notice •A PDF version is available on the Internet Phone +49 911 8602-111 GMC-I Messtechnik GmbH +49 911 8602-777 Südwestpark 15...
