Creating a Test Structure in the Test Instrument, Navigating within the Structure and Displaying Measured Values

Overview of the Meanings of the Symbols for Creating Objects – Navigation within Test Structures
PRINT
ESC
HELP
MEM
PRINT
ESC
HELP
MEM
PRINT
ESC
HELP
MEM
PRINT
ESC
HELP
MEM

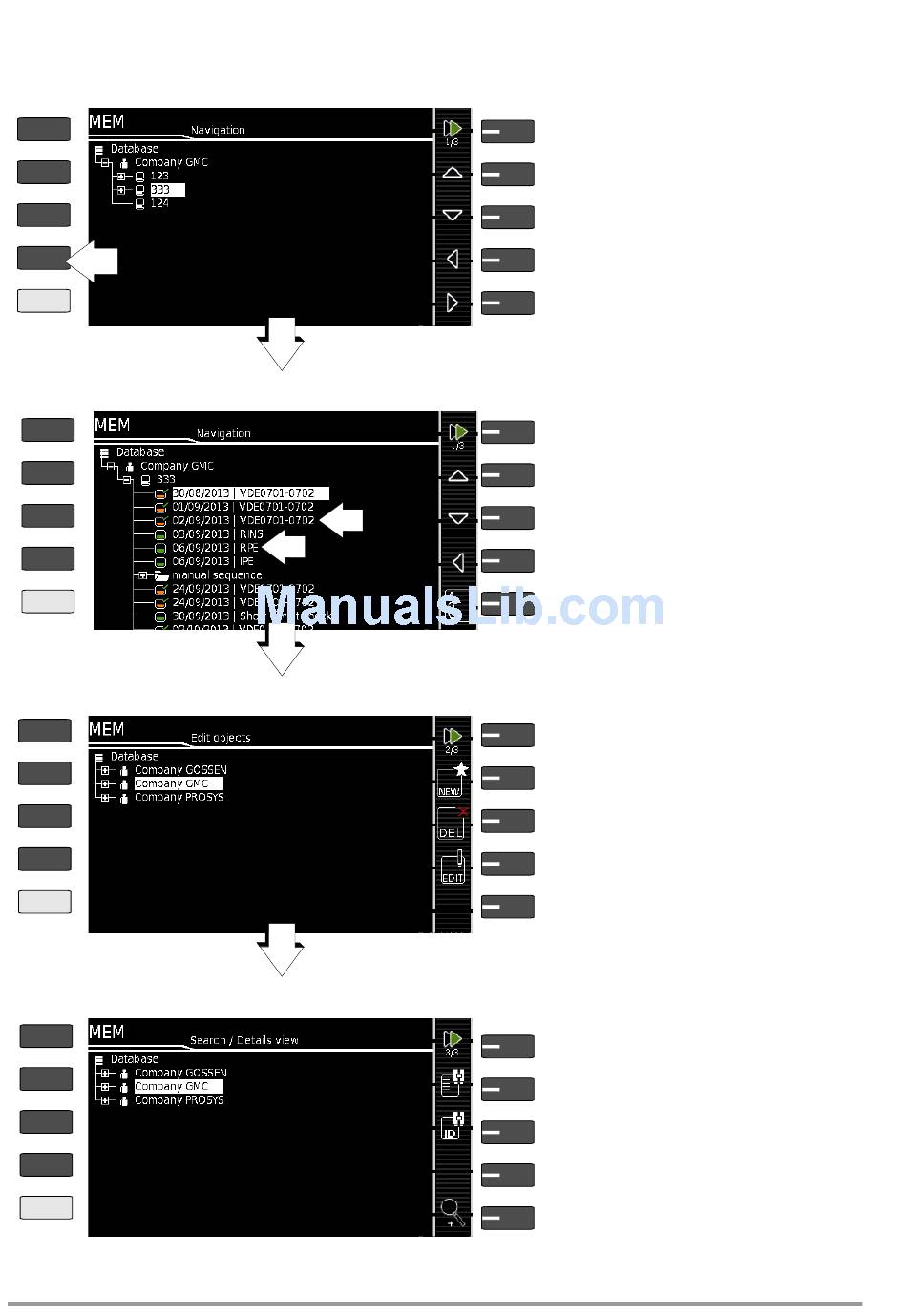

Figure 6: Overview of Navigation, Object Editing and Object Search in the Database
16
MEM 1/3
MEM 1/3
1
2
MEM 2/3
MEM 3/3
Object selection menu – page 1/3
Scroll to next menu (page 2/3)
Select customers or DUTs
Select customers or DUTs
Jump back (one hierarchical level higher)
or close opened branches
Select customers or DUTs
Measurement selection menu – page 1/3
Scroll to next menu (page 2/3)
Selection of measurements
Selection of measurements
Jump back (one hierarchical level higher)
or close opened branches
Display measured values for a selected test
1: Test sequence per standard (symbol: orange)
2: Single measurement (symbol: green)
Object editing menu – page 2/3
Scroll to next menu (page 3/3)
Add new DUT to a selected customer
Delete selected DUT or measurement
Edit DUT/customer
Object search menu – page 3/3
Scroll to next menu (page 1/3)
Search all database objects
in the ID and designation fields
Search for DUTs via ID
Display designation and ID
of the selected DUT
