Module for Mixed E1/T1 Outputs

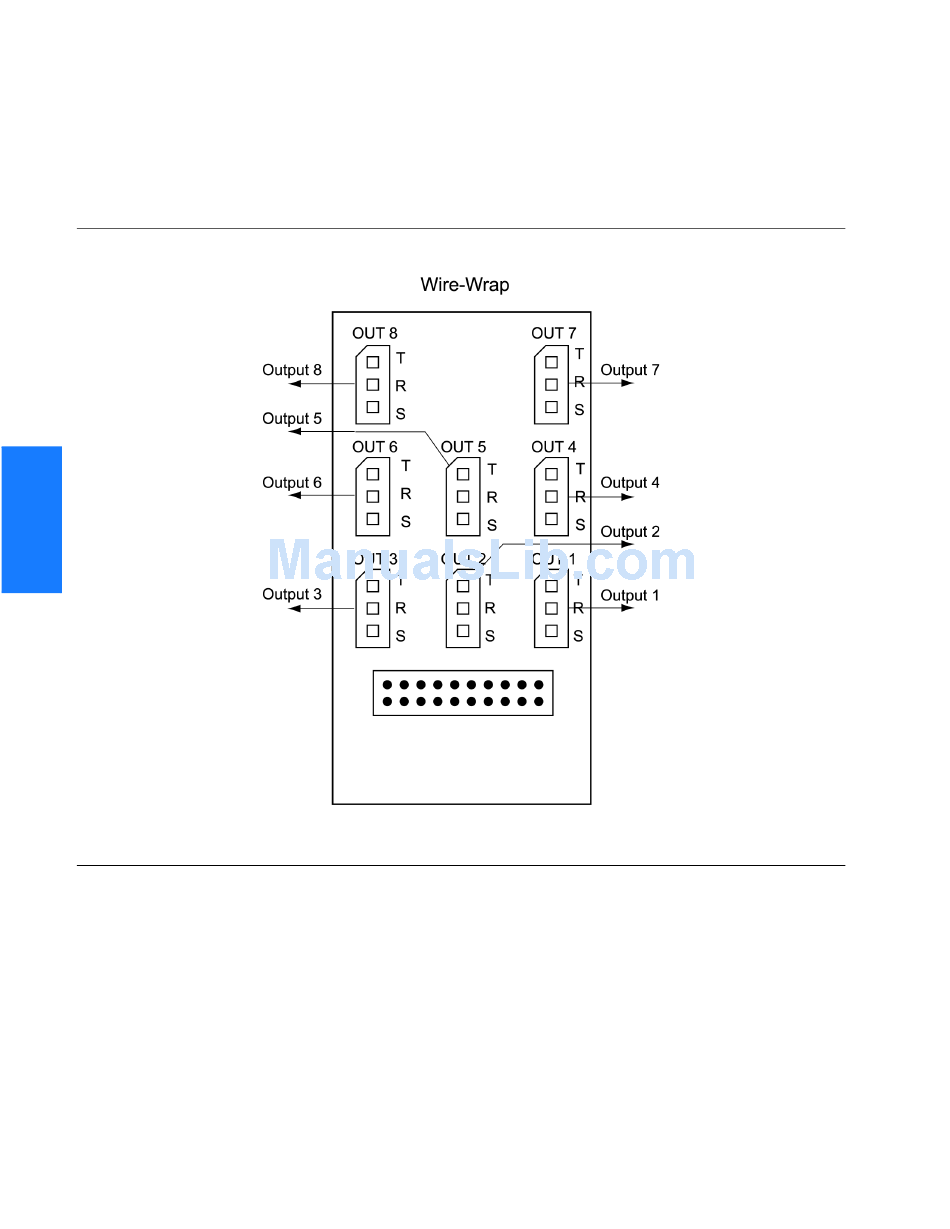

Figure 19. Eight Mixed E1/T1 Output Connections
3
68
S
S
S
S
S
S
S
S
S
Connect the optional eight mixed El/T1 outputs with the wire-wrap output module. See
Figure 13 for the connector location, and Figure 19 for the connections.
