4. Adjust the correct figure using <UP/DOWN>.
5. Press <OK> to confirm the corrected value.

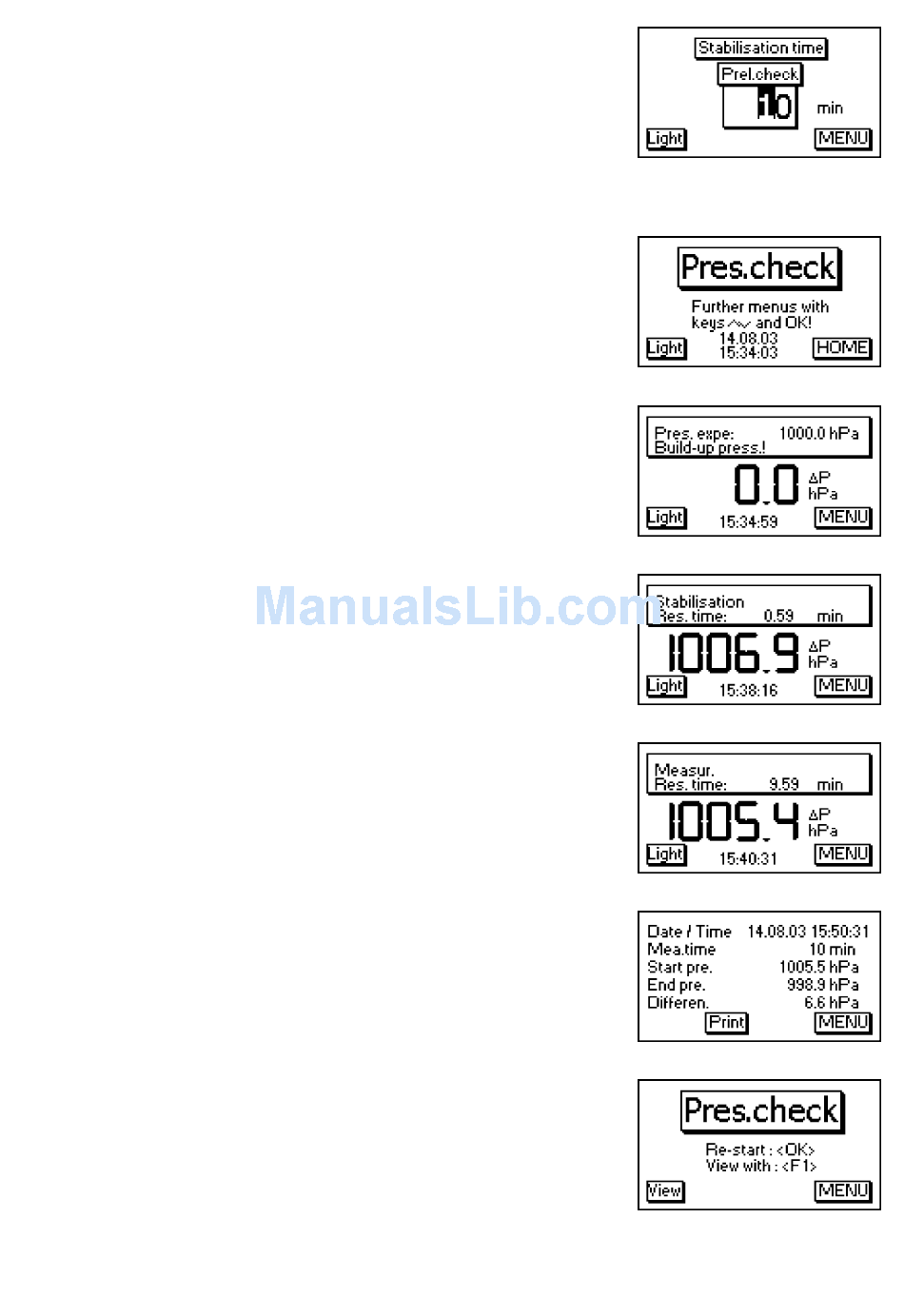

4.2. Pressure check

Proceed as follows:
1. Close the conduit with a suitable adapter (part of
ecom-DPK).
2. Connect the components a described in ecom-DPK
manual.
3. Scroll with <UP/DOWN> until the menu „Pressure
check". Activate with <OK>-Taste.
4. With the compressed-air pump create the pre-
adjusted test pressure (the unit beeps as soon as the
pressure level is achieved).
5. Interrupt the connection to the air pump (switch-off
the ball valve).
6. Wait for stabilisation time (if the pressure remains in
the range „test pressure +/- 10% during stabilisation
time, so the measurement time will start).
7. Once the measurement time is over, the result is
displayed and can be sent to the IR printer (option) thus
pressing <F2> (Print) .
8. If the menu „Pressure Check" is selected again, so
the result can be called up with <F1> (as long as the
ecom-DP is on) or a new measurement can be started
with <OK>.
