4.4. Main Check

The main check acc. to DVGW – TRGI Process Instruc-
tions G 600 by conduits (operation pressure up to 100
hPa) is registered as a measurement routine in the
ecom-DP. Proceed as follows:
1. Close the conduit with a suitable adapter (part of
ecom-DPK).
2. Connect the components a described in ecom-DPK
manual.

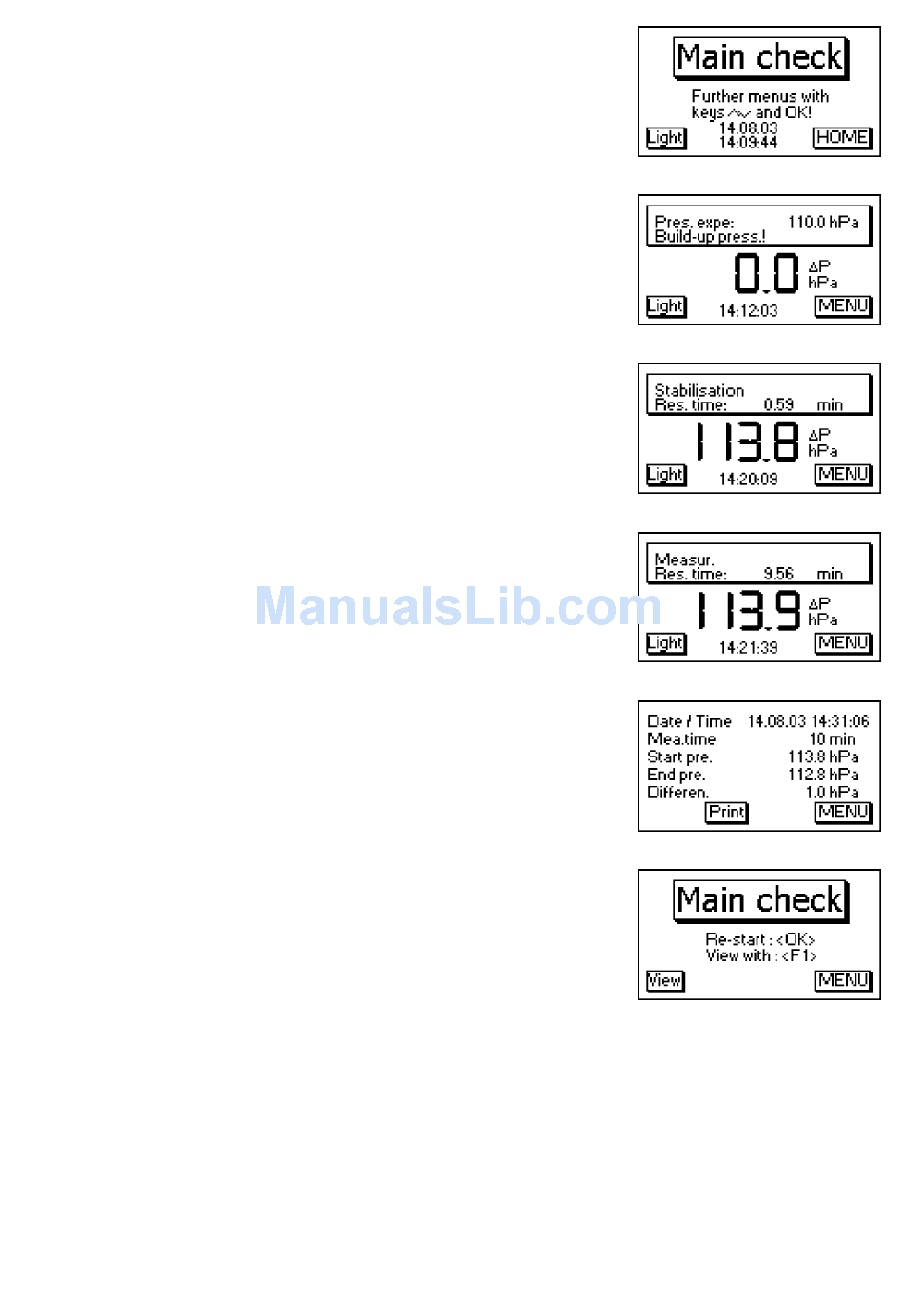

3. Scroll with <UP/DOWN> until the menu „Main
Check". Activate with <OK>-Taste.
4. With the compressed-air pump create the pre-
adjusted test pressure (the unit beeps as soon as the
pressure level is achieved).
5. Interrupt the connection to the air pump (switch-off
the ball valve).
6. Wait for stabilisation time (if the pressure remains in
the range „test pressure +/- 10% during stabilisation
time, so the measurement time will start).
7. Once the measurement time is over, the result is
displayed and can be sent to the IR printer (option) thus
pressing <F2> (Print) .
8. If the menu „Main Check" is selected again, so the
result can be called up with <F1> (as long as the ecom-
DP is on) or a new measurement can be started with
<OK>.
ecom-DP Page 11
