4. Check programs

1. Use only air or inert gas for check !
2. Respect the „Technical Rules for
Gas installations"!
Call up the pre-programmed measurement routines
„Preliminary Check", Main Check" and „Usability Check"
in the menu <F3> (PROC).
Parameters to each measurement routine can be ad-
justed in the menu „Setup".

4.1. Setup

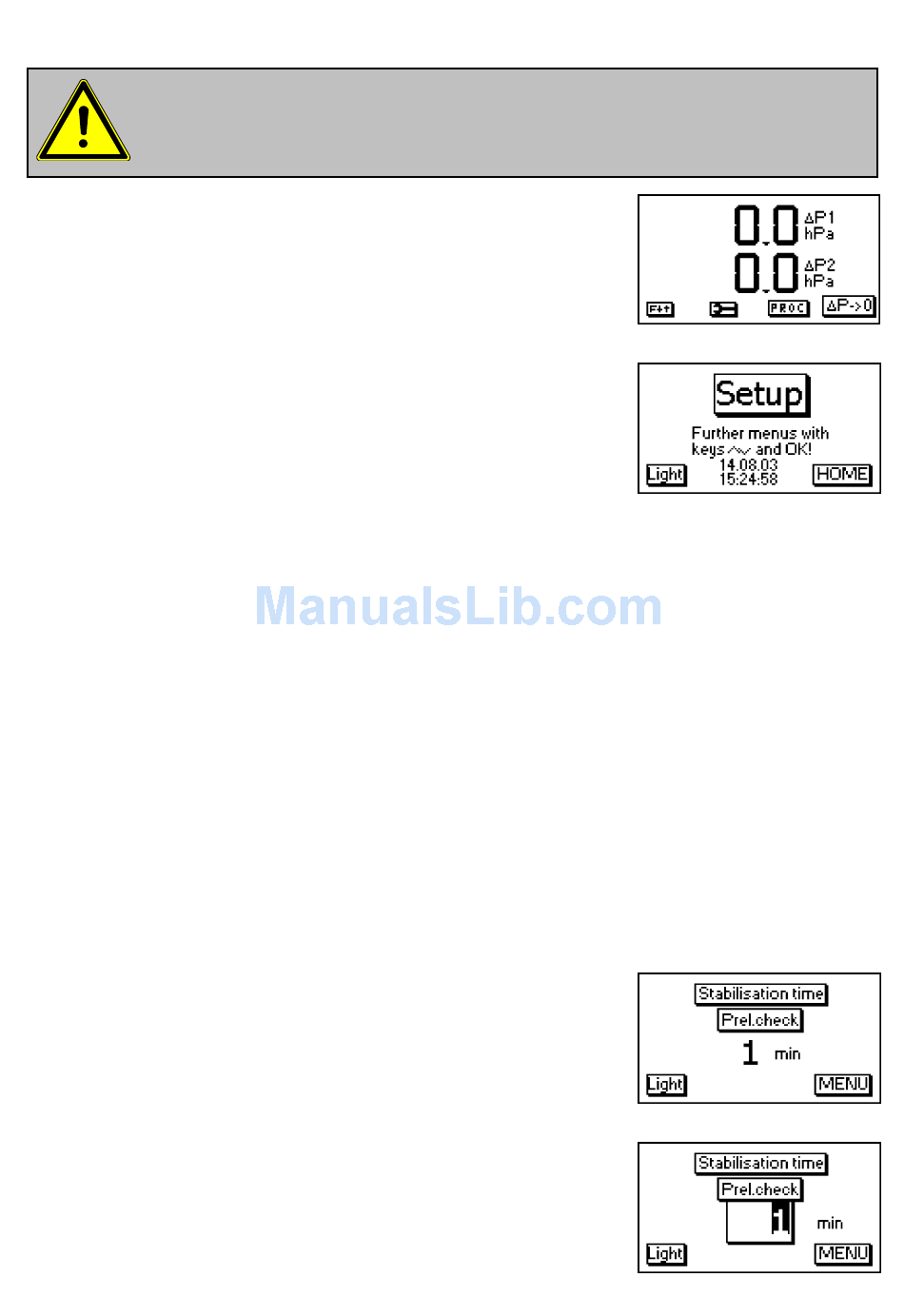

Scroll with <UP/DOWN> until the menu "Setup". Press
<OK> to activate the menu. The following parameters
can be adjusted for the corresponding measurement
routine:
Pressure Check
- Stabilisation time (1 - 10 min, default: 1 min)
- Measurement time (10 - 120 min, default: 5 min)
Preliminary Check
- Stabilisation time (1 - 10 min, default: 1 min)
- Measurement time (10 - 120 min, default: 10 min)
- Test pressure (900 - 1200 hPa, default: 1000 hPa)
Main Check
- Stabilisation time (1 - 10 min, default: 1 min)
- Measurement time (10 - 120 min, default: 10 min)
- Test pressure (90 - 160 hPa, default: 110 hPa)
Usability check
- Stabilisation time (1 - 270 min, default: 1 min)
- Measurement time (10 - 240 min, default: 10 min)
- Test pressure (20 - 160 hPa, default: 50 hPa)
- Max. operation pressure (10 - 100 hPa, default: 20 hPa)
- Air pressure (800 - 1200 hPa, default: 1013 hPa)
Each parameter can be adjusted the same way:
1. Select the parameter with <UP/DOWN>.
2. Press <OK> to activate.
3. Use the cursor keys <RIGHT/LEFT> to select the
position to be changed (corresponding field blinks).
Page 8 ecom-DP
