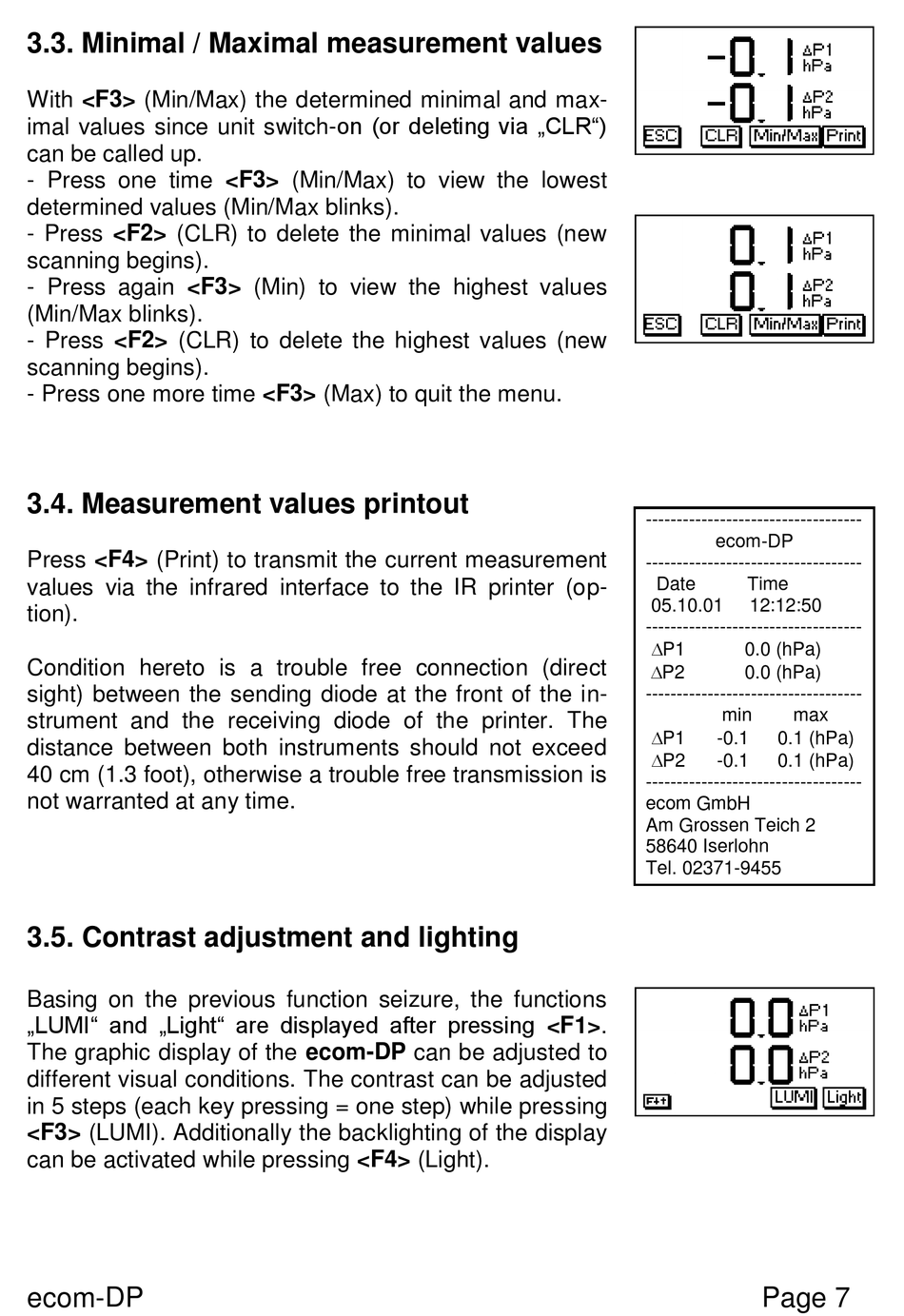

3.3. Minimal / Maximal measurement values
With <F3> (Min/Max) the determined minimal and max-
imal values since unit switch-on (or deleting via „CLR")
can be called up.
- Press one time <F3> (Min/Max) to view the lowest
determined values (Min/Max blinks).
- Press <F2> (CLR) to delete the minimal values (new
scanning begins).
- Press again <F3> (Min) to view the highest values
(Min/Max blinks).
- Press <F2> (CLR) to delete the highest values (new
scanning begins).
- Press one more time <F3> (Max) to quit the menu.
3.4. Measurement values printout
Press <F4> (Print) to transmit the current measurement
values via the infrared interface to the IR printer (op-
tion).
Condition hereto is a trouble free connection (direct
sight) between the sending diode at the front of the in-
strument and the receiving diode of the printer. The
distance between both instruments should not exceed
40 cm (1.3 foot), otherwise a trouble free transmission is
not warranted at any time.
3.5. Contrast adjustment and lighting
Basing on the previous function seizure, the functions
„LUMI" and „Light" are displayed after pressing <F1>.
The graphic display of the ecom-DP can be adjusted to
different visual conditions. The contrast can be adjusted
in 5 steps (each key pressing = one step) while pressing
<F3> (LUMI). Additionally the backlighting of the display
can be activated while pressing <F4> (Light).
ecom-DP
-----------------------------------
ecom-DP
-----------------------------------
Date Time
05.10.01 12:12:50
-----------------------------------
P1
0.0 (hPa)
P2
0.0 (hPa)
-----------------------------------
min max
P1
-0.1 0.1 (hPa)
P2
-0.1 0.1 (hPa)
-----------------------------------
ecom GmbH
Am Grossen Teich 2
58640 Iserlohn
Tel. 02371-9455
Page 7
