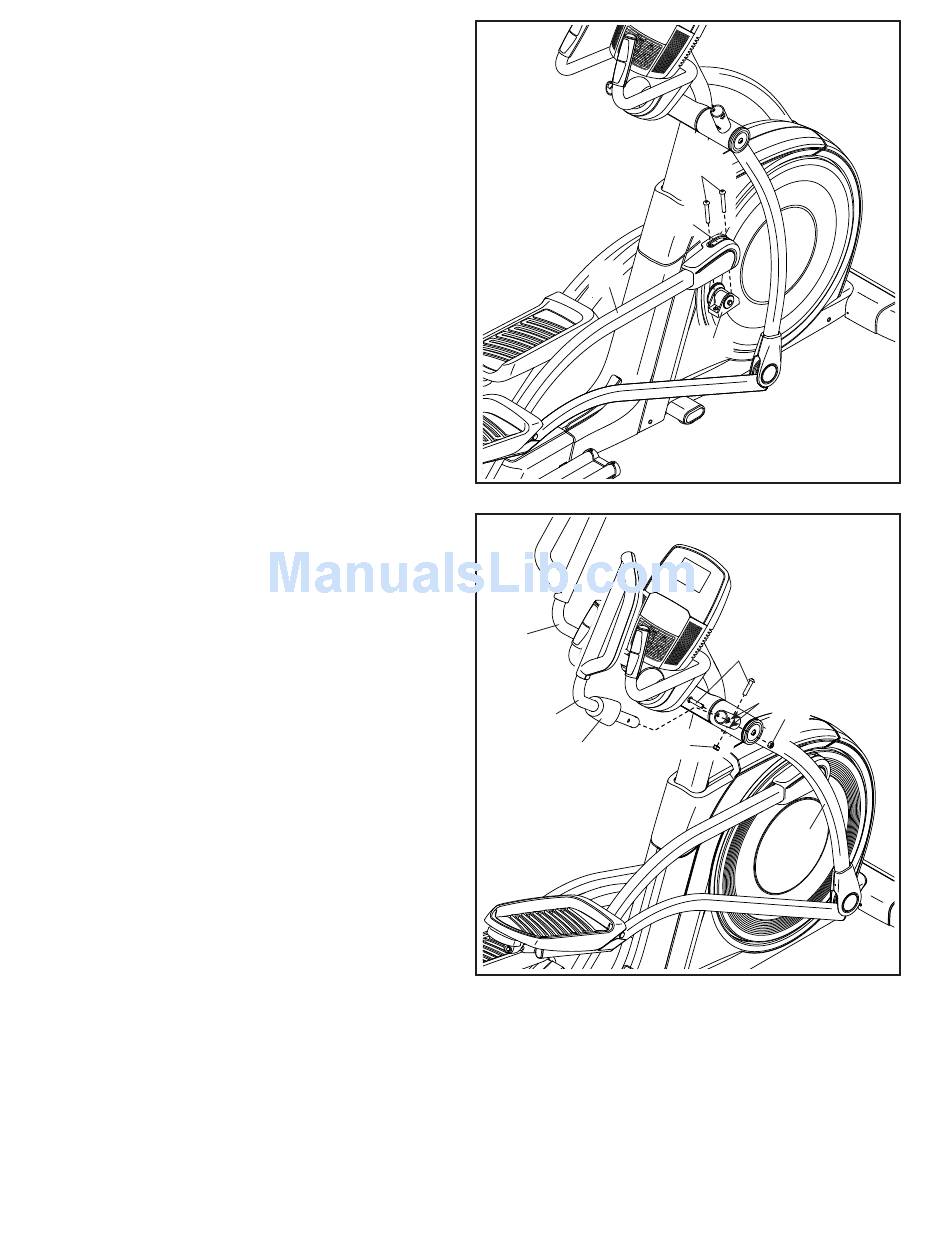

7. Locate the Right Upper Saddle Bracket (121) on
the Right Roller Arm (45). Next, locate the Lower
Saddle Bracket (26) on the right side of the
elliptical.
Attach the Right Upper Saddle Bracket (121)
to the Lower Saddle Bracket (26) with two
M10 x 70mm Screws (139).
8. Identify the Right Upper Body Arm (61) and an
Upper Body Arm Cover (77). Slide the Upper
Body Arm Cover onto the Right Upper Body Arm
as shown.
Attach the Right Upper Body Arm (61) to
the Right Upper Body Leg (36) with two
M10 x 45mm Bolts (143) and two M10 Locknuts
(99); make sure that the Locknuts are in the
hexagonal holes (A).
Then, slide the Upper Body Arm Cover (77)
downward and turn it so that it is flush with the
Right Upper Body Leg (36).
Attach the Left Upper Body Arm (47) in the
same way.
10. Make sure that all parts are properly tightened before you use the elliptical. Extra parts may be included.
Place a mat beneath the elliptical to protect the floor.
