Electrical connection
7.1.3

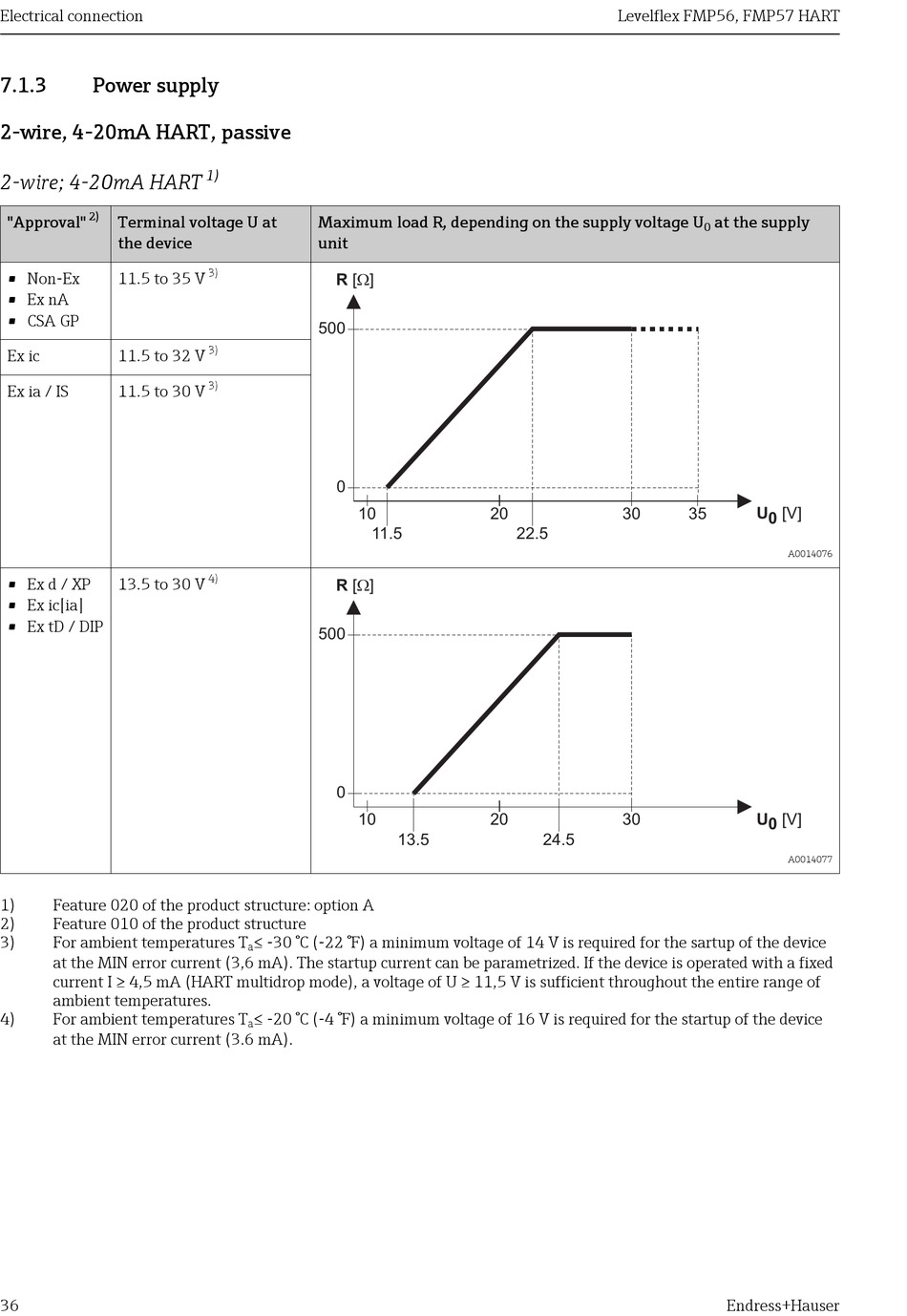

Power supply

2-wire, 4-20mA HART, passive
2-wire; 4-20mA HART
2)
"Approval" Terminal voltage U at
the device
• Non-Ex 11.5 to 35 V
• Ex nA
• CSA GP
Ex ic 11.5 to 32 V
Ex ia / IS 11.5 to 30 V
• Ex d / XP 13.5 to 30 V
• Ex ic[ia]
• Ex tD / DIP
1) Feature 020 of the product structure: option A
2) Feature 010 of the product structure
3) For ambient temperatures T
at the MIN error current (3,6 mA). The startup current can be parametrized. If the device is operated with a fixed
current I ≥ 4,5 mA (HART multidrop mode), a voltage of U ≥ 11,5 V is sufficient throughout the entire range of
ambient temperatures.
4) For ambient temperatures T
at the MIN error current (3.6 mA).
36
1)
Maximum load R, depending on the supply voltage U
unit
3)
R [ ] W
500
3)
3)
0
10
11.5
4)
R [ ] W
500
0
10
≤ -30 °C (-22 °F) a minimum voltage of 14 V is required for the sartup of the device
a
≤ -20 °C (-4 °F) a minimum voltage of 16 V is required for the startup of the device
a
20
22.5
20
13.5 24.5
Levelflex FMP56, FMP57 HART
at the supply
0
U 0 [V]
30 35
A0014076
30 U 0 [V]
A0014077
