Configuration Of A Level Measurement - Endress+Hauser Levelflex FMP56 HART Brief Operating Instructions

Levelflex FMP56, FMP57 HART
9.5

Configuration of a level measurement

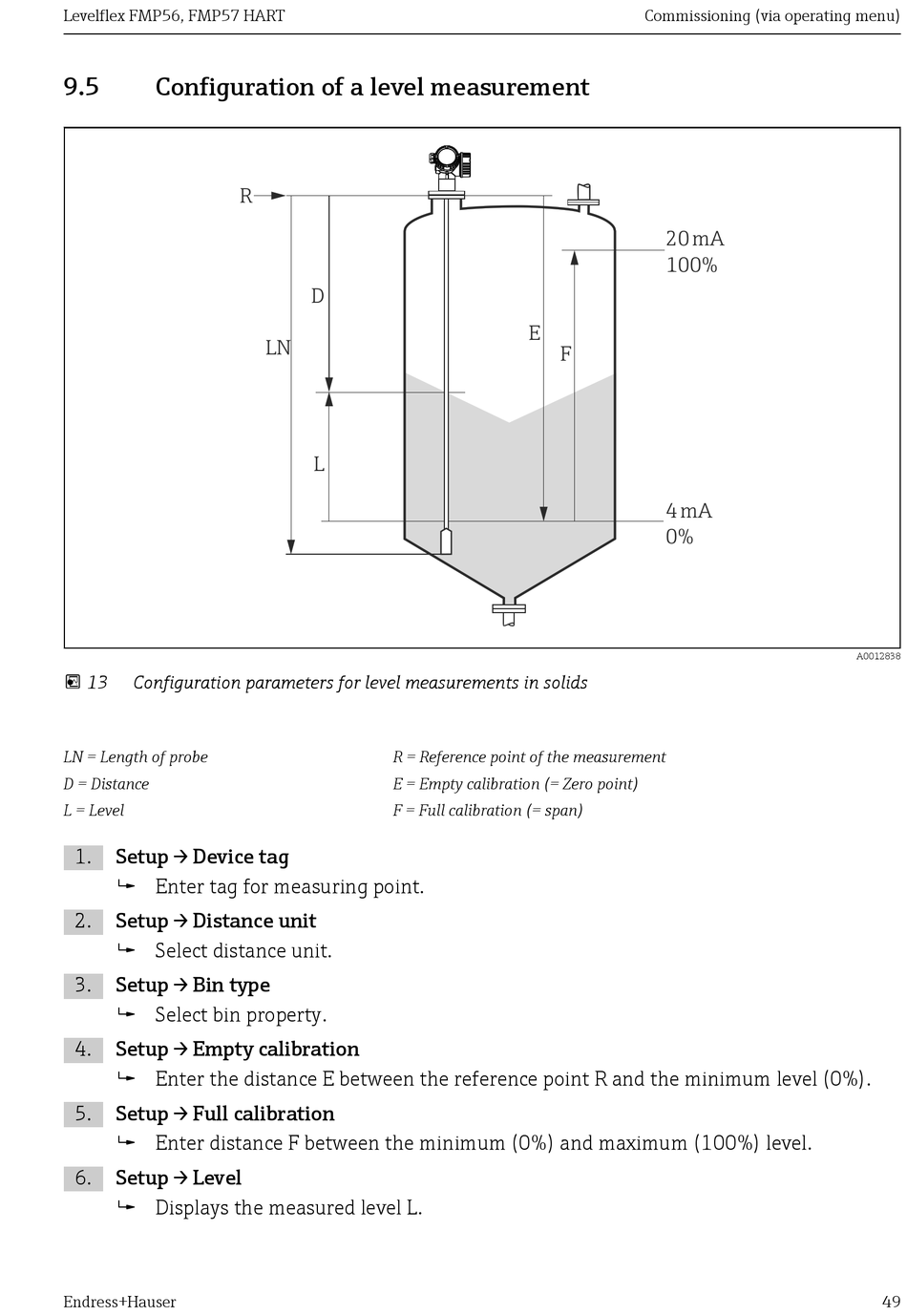

 13 Configuration parameters for level measurements in solids
LN = Length of probe
D = Distance
L = Level
1. Setup → Device tag
 Enter tag for measuring point.
2. Setup → Distance unit
 Select distance unit.
3. Setup → Bin type
 Select bin property.
4. Setup → Empty calibration
 Enter the distance E between the reference point R and the minimum level (0%).
5. Setup → Full calibration
 Enter distance F between the minimum (0%) and maximum (100%) level.
6. Setup → Level
 Displays the measured level L.
Endress+Hauser
R
D
LN
L
R = Reference point of the measurement
E = Empty calibration (= Zero point)
F = Full calibration (= span)
Commissioning (via operating menu)
20 mA
100%
E
F
4 mA
0%
