CAUTION
L
The plugs of the connection cable may be damaged by mechanical stress.
‣
Mount the probe and the electronics housing tightly before connecting the cable.
‣
Lay the cable such that it is not exposed to mechanical stress. Minimum bending radius:
100 mm (4").
‣
When connecting the cable: Connect the straight plug before the angled one. Torque for
both coupling nuts: 6 Nm.
If the meeasuring point is exposed to strong vibrations, an additional locking compound
(e.g. Loctite 243) can be applied at the plug connectors.
Mounting the electronics housing
A
122 (4.8)
158 (6.2)

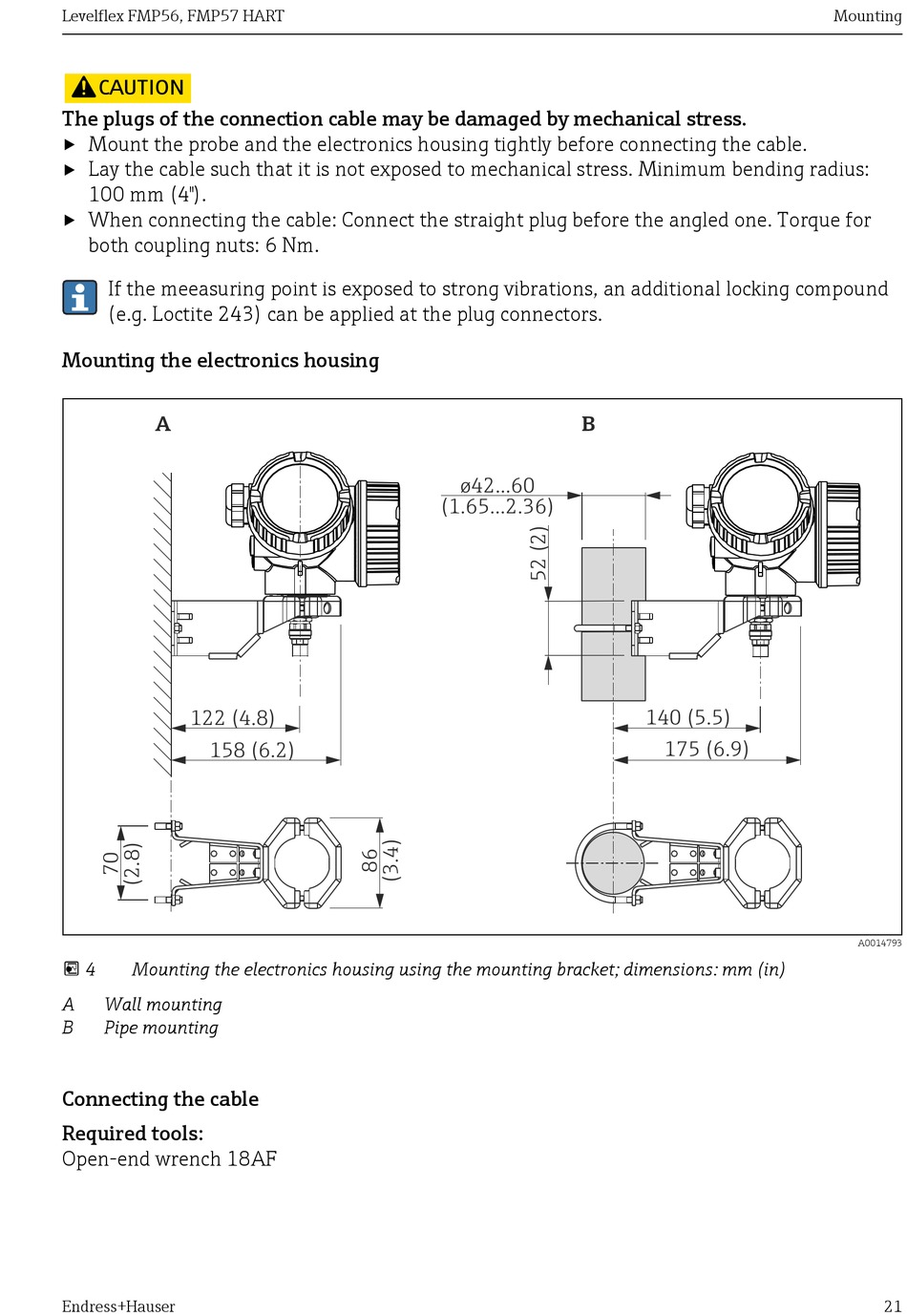

 4 Mounting the electronics housing using the mounting bracket; dimensions: mm (in)
A Wall mounting
B Pipe mounting
Connecting the cable
Required tools:
Open-end wrench 18AF
Endress+Hauser
B
ø42...60
(1.65...2.36)
140 (5.5)
175 (6.9)
