- Page 1 Manual 928 E...
-
Page 3: Table Of Contents
Brake belt contact surface ���������������������������������� 15 Chain 1/2“ x 1/8“ ������������������������������������������������� 16 Freewheel sprocket ��������������������������������������������� 17 Spare parts ���������������������������������������������������� 18 Important Read the manual carefully before using the cycle and save it for future use. © 2010 MONARK EXERCISE AB, Vansbro, Sweden... -
Page 4: Monark Exercise Ab
Since the early 1900s, Monark’s cycles have been living proof of precision, re- liability, strength and service. That are the reasons why we are now the world leader in cycle ergometers and the market leader in Scandinavia in transport cycles. -
Page 5: Product Information

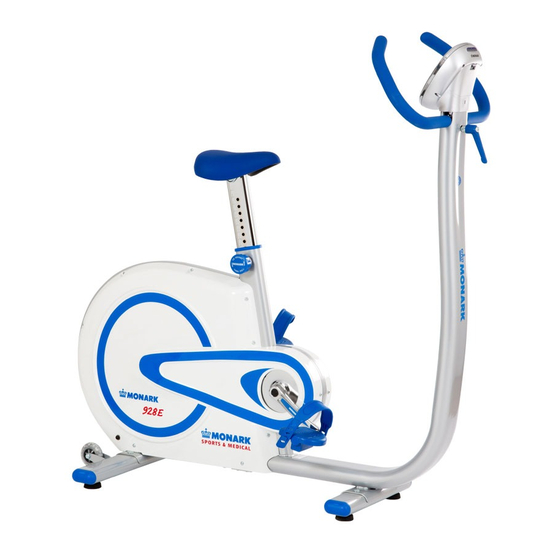

Congratulations on your new Ergometer • Possible to calibrate • Adjustable saddle with quick release lever Monark 928 E is designed to in a simple way be used • Adjustable handlebar with quick release lever for Max and SubMax cardiovascular tests, calculate •... -
Page 6: Operating Instruction
PC Fig: Adjustments software which is enclosed with the bike. 1) Quick release bolt 2) Quick release lever 3) Connection unit The USB-connection(2) and placement of the Chip Card(1) according to fig: Workload adjustment and connections. Monark 928 E... -
Page 7: Computer Specifications
12) START/STOP HRmax. 4) RPM 13) SELECT 5) Sex 14) PROGRAM • The workload is rpm independent. 6) % of Max heart rate 15) ENTER 7) Date or last part of ID 16) (+) (-) 8) Heart rate Monark 928 E... -
Page 8: Basic Settings
If that is the case press SE- LECT and make basic settings again. If the current switches off (no batteries or power adapter), then this settings (unit, clock and date) have to be set again. Basic data is now set. Monark 928 E... -
Page 9: Personal Settings
Symbol of woman alt. symbol of man flashes. See fig: Symbols. Choose symbol of woman or symbol of man with (+-/)-key. Press START/STOP to end the command or wait ten seconds. Fig: Symbols 1) Woman 2) Man Monark 928 E... - Page 10 If the PC-program is used, the only thing that is neces- sary to program in the display is the sex, other data is taken from the database of the PC. The PC-program will also decide when ”steady state” is reached and calculate the test result. Monark 928 E...
-
Page 11: Scale - Zero Adjustment
Max workload is 400 watt alt. 2400 kpm/min. When the display goes to sleep function it always returns to MANUAL training, witch also is the position of the display at initial stage. Fig: Scale adjustment 1) Lock nut Monark 928 E... -
Page 12: Mechanical Calibration
Fig: Display view A) Potentiometer value due to service. B) kp-value C) Version number Fig: Calibration 1) Pointer at 0-index 2) Adjustment weight 3) Locking screw 4) Calibration weight 5) Hook for calibration weight 6) Pointer at 4 kp Monark 928 E... -
Page 13: Trouble Shooting Guide
Scratching sound is heard when pedalling. Check that the carriage block is taken off and that none of the covers is scratching. Caliberr shows in the display. Incorrect calibration or not calibrated at all. Calibrate the Ergometer. Set- tings will be lost when the Ergometer is not connected or use batteries. Monark 928 E... -
Page 14: Service
(4 times EC Directive 1999/44/EC. In short, the directive pro- per year). vides for that your Monark Dealer will be liable for • Check now and then that both pedals are firmly any defects, which existed at the time of delivery. -
Page 15: Batteries
Crank bearing face”. The crank bearing is long term greased and require normally no supplementary lubrication. If problem arises, please contact your Monark dealer. Brake belt contact surface Flywheel bearing Deposits of dirt on the brake belt and on the contact... -
Page 16: Chain 1/2" X 1/8
Adjust chain adjusters to allow chain play according to above. Tighten hub nuts firmly. Put on frame cov- ers again. Monark 928 E... -
Page 17: Freewheel Sprocket
The sprocket should be lubricated with a few drops of oil once a year. Tilt the cycle somewhat to make it easier for the oil to reach the ball bearing. See fig: Lubrication. Fig: Lubrication Fig: Hub assembly Fig: Special remover (Art. No: 9100-14) Monark 928 E... -
Page 18: Spare Parts
Servo, complete 9328-801 -Axle with bearings, complete 9338-15 Bracket for servo 9338-62 -Potentiometer with bracket 9338-16 Bracket for servo 9303-52 -Gear wheel 9328-1 Frame 9303-54 -Belt 9328-33 Saddle adapter 9126-77 -Joint clamp 9000-211 Calibration weight, 4 kg Monark 928 E... - Page 19 9337-38 Screw M8x16 9371-16 -Magnet 9384-650 Power adapter 9326-55 Chain, 98 L with chain lock 9338-36 USB adapter 8966-175 BB cartridge bearing 9328-150 Screw set 8966-176 Support casing for BB-bracket 9339-98 Chestbelt 9328-78 Handlebar, wide splines, compl. Monark 928 E...
