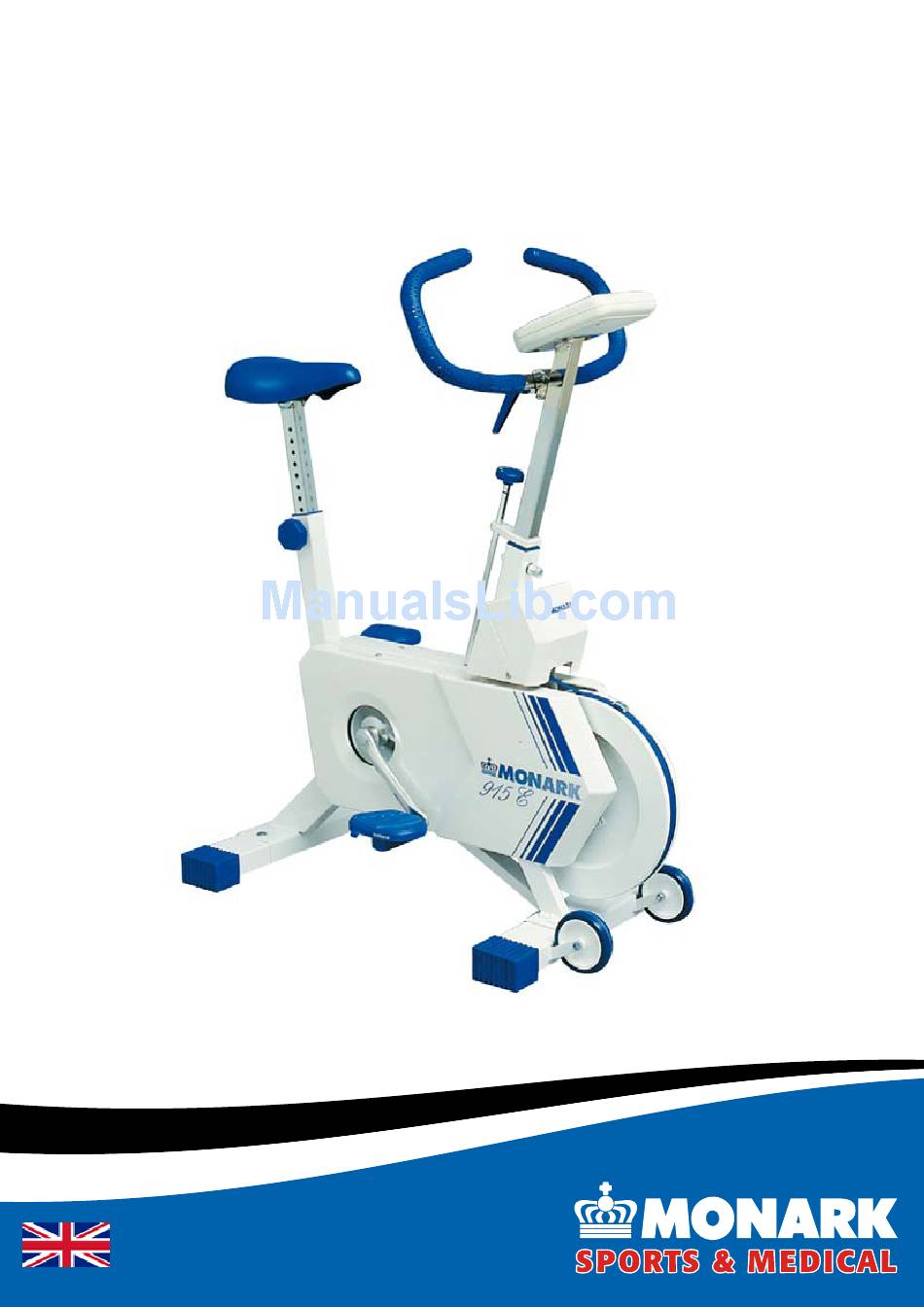

- Page 1 Manual 915 E...
-
Page 3: Table Of Contents
Brake belt contact surface ���������������������������������� 11 Chain 1/2“ x 1/8“ ������������������������������������������������� 12 Freewheel sprocket ��������������������������������������������� 13 Spare parts ���������������������������������������������������� 14 Important Read the manual carefully before using the cycle and save it for future use. 2014 MONARK EXERCISE AB, Vansbro, Sweden... -
Page 4: Monark Exercise Ab
Since the early 1900s, Monark’s cycles have been living proof of precision, reliability, strength and service. These are the reasons why we are now the world leader in cycle ergometers and the market leader in Scandinavia in transport cycles. -
Page 5: Product Information

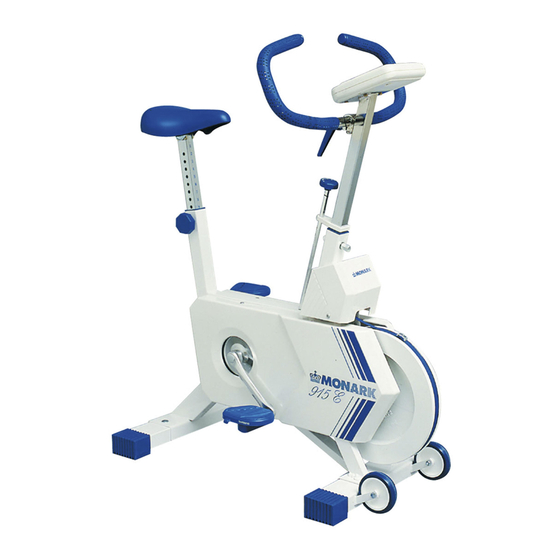

Congratulations on your exercise bike! • Height adjustable saddle • Adjustable handlebar The Monark 915 E is a small and compact exercise • Adjustable workload bike that can be calibrated. Displays watts and kcal at • Stable frame, solid steel tube 60 respectively 70 rpm. -
Page 6: Operating Instruction
3) Load knob 4) Frame 5) Cable 6) Joint cable If the handlebar locking knob is loosened, the washer 7) Sensor must be utilized, see Fig: Locking knob, handlebar. 8) Screw Fig: Locking knob, handlebar 1) Washer M8 Monark 915 E... -
Page 7: Workload Device
Workload device The Monark 915 E is equipped with a work load that is easily and quickly adjustable. The workload power can be read in watts at two different speeds, 60 (24 km/h) resp. 70 (28 km/h) pedal revolutions per minute. -
Page 8: Computer Specifications
Press MODE key to advance to the distance window, then and the pulse function will get active. use SET key to enter your desired target trip distance. Each press of the SET will advance distance by 0.5 km. Monark 915 E... -
Page 9: Heart Rate
Scratching sound is heard when pedalling • Check that the carriage block is taken off and that none of the covers is scratching. There is a click noise and a squeak noise • Loosen the chain. when pedalling Monark 915 E... -
Page 10: Service
EC Directive 1999/44/EC. In short, check that the pedal arms are firmly tightened on the directive states for that your Monark Dealer will the crank axle, tighten if necessary. When the be liable for any defects, which existed at the time of Ergometer is new it is important to tighten the delivery. -
Page 11: Batteries
The crank bearing is greased and normally requires no supplementary lubrication. If a problem arises, Brake belt contact surface please contact your Monark dealer. Deposits of dirt on the brake belt and on the contact Flywheel bearing surface may cause the unit to operate unevenly and will also wear down the brake belt. -
Page 12: Chain 1/2" X 1/8
Adjust chain adjusters to allow chain play according to above. Tighten hub nuts firmly. Replace frame covers. Monark 915 E... -
Page 13: Freewheel Sprocket
The sprocket should be lubricated with a few drops of oil once a year. Tilt the cycle to make it easier for the oil to reach the bearing. See Fig: Lubrication. Fig: Lubrication Fig: Hub assembly Monark 915 E... -
Page 14: Spare Parts
BB cartridge bearing, complete mm, stainless 9300-53 Holder for guard 8523-115 Screw M6S 8.8 M8 x 1 x 20 fzb 9300-215 Pedal 9/16”, pair 8523-2 Dust cover 9300-207 Pedal strap, pair 9326-1 Frame 4994-5 Saddle 9300-114 -Saddle bracket Monark 915 E... - Page 15 Tension screw complete 9326-166 Holder for sensor 9326-57 Tension lever, complete 9300-66 Bracket for cable 9326-84 Watt scale, complete 9326-162 Crank sensor with cable 14367 Screw M8 x 90 mm 9339-98 Chestbelt with pulse transmitter (accessory) 5844 Nut M8 Monark 915 E...
