MCD200 Profi bus option
This requires an MCD Profi bus Module which clips onto the side of the
MCD200 (Cat. No: 175G9001).
MCD200
Notes:
• A single Profi bus Module is required for each MCD200.
• Profi bus node address is selected using two rotary switches.
Data rate is automatically detected.
• Up to 31 Profi bus Modules can be used as Profi bus slaves
on a single Profi bus DP network.
• The Profi bus Module requires and external 24 VDC auxiliary supply.
• The MCD Profi bus Module is Profi bus tested and certifi ed.
• For more information on the MCD Profi bus Module, refer to the
Installation Instructions (MG.17.Gx.02) at www.danfoss.com/drives.
54

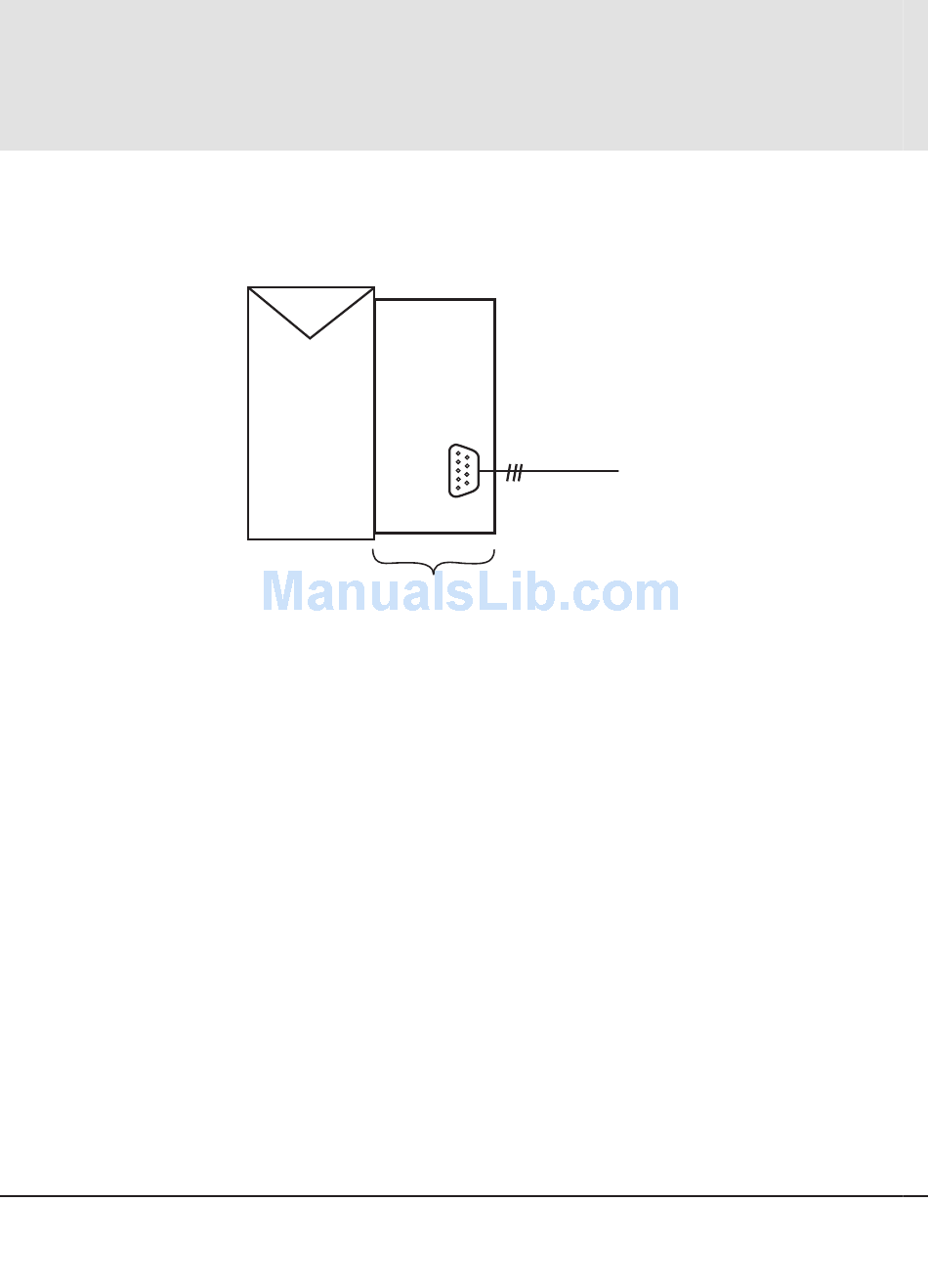

MCD
Profibus
Module
Standard
DB9
connection
Cat. No: 175G9001
®
VLT Soft Starter Pocket Guide
Profibus DP
network cable
