MCD200 Modbus Option

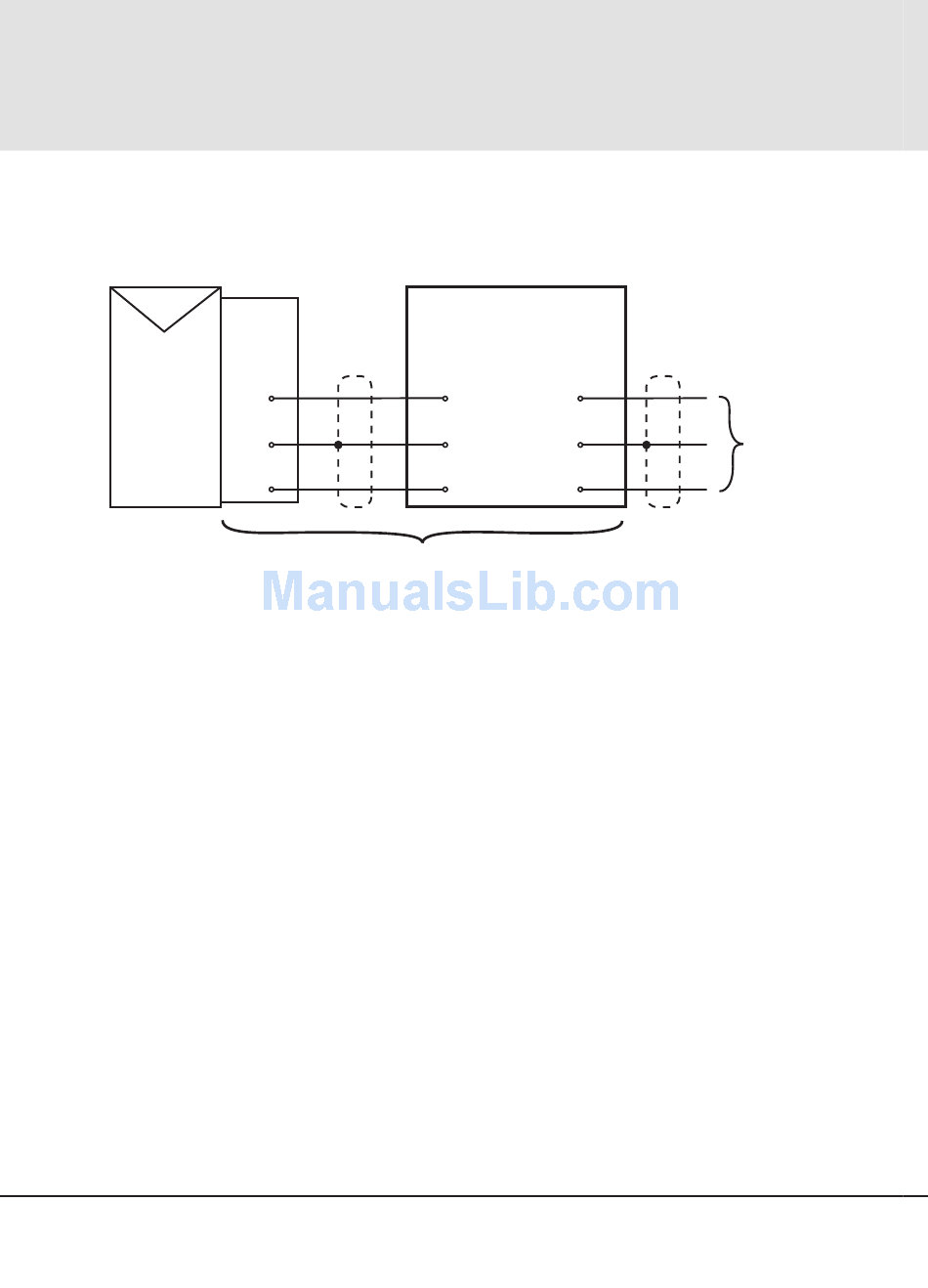

Option 2: Using the MCD Remote Operator as a Modbus RTU Gateway
device (Cat. No: 175G9004)
MCD
Serial
MCD200
Interface
Module
-
69
GND
61
+
68
Notes:
• A single Remote operator and Serial Interface Module
is required for each MCD200.
• Parameters 1 to 5 of the Remote Operator are used to set it up
as a Modbus slave device.
• Up to 31 Remote Operators can be used as Modbus slave devices
on a single Modbus network.
• The Serial Interface Module is powered via the MCD200. The Remote
Operator requires an external 18-30 VAC/DC auxiliary supply.
• For more information about operating the MCD Remote Operator
as a Modbus RTU gateway, refer to the Installation Instructions
(MG.17.Fx.02), Appendix A, located at www.danfoss.com/drives.
