MCD3000 DeviceNet Option

This is achieved using an externally fi tted MCD3000 DeviceNet
Gateway (Cat. No: 175G9005)
MCD3000
-
69
GND
61
+
68
Notes
• A Single DeviceNet Gateway is required for each MCD3000
• DeviceNet node address (MAC ID) and data rate are set using DIP
switches 1 to 8 in the DeviceNet Gateway.
• Up to 63 DeviceNet Gateways can be used as DeviceNet slaves on a
single DeviceNet network.
• The DeviceNet Gateway is powered via the network cable.
• For more information on the MCD3000 DeviceNet Gateway, refer to
the User Manual (MG.15.Ex.02) at www.danfoss.com/drives.
48
RS485 DeviceNet Gateway
V+
5
-
6
CAN-H
4
SHIELD
GND
3
7
CAN-L
2
+ V-
1
8
Cat. No: 175G9005
®
VLT Soft Starter Pocket Guide

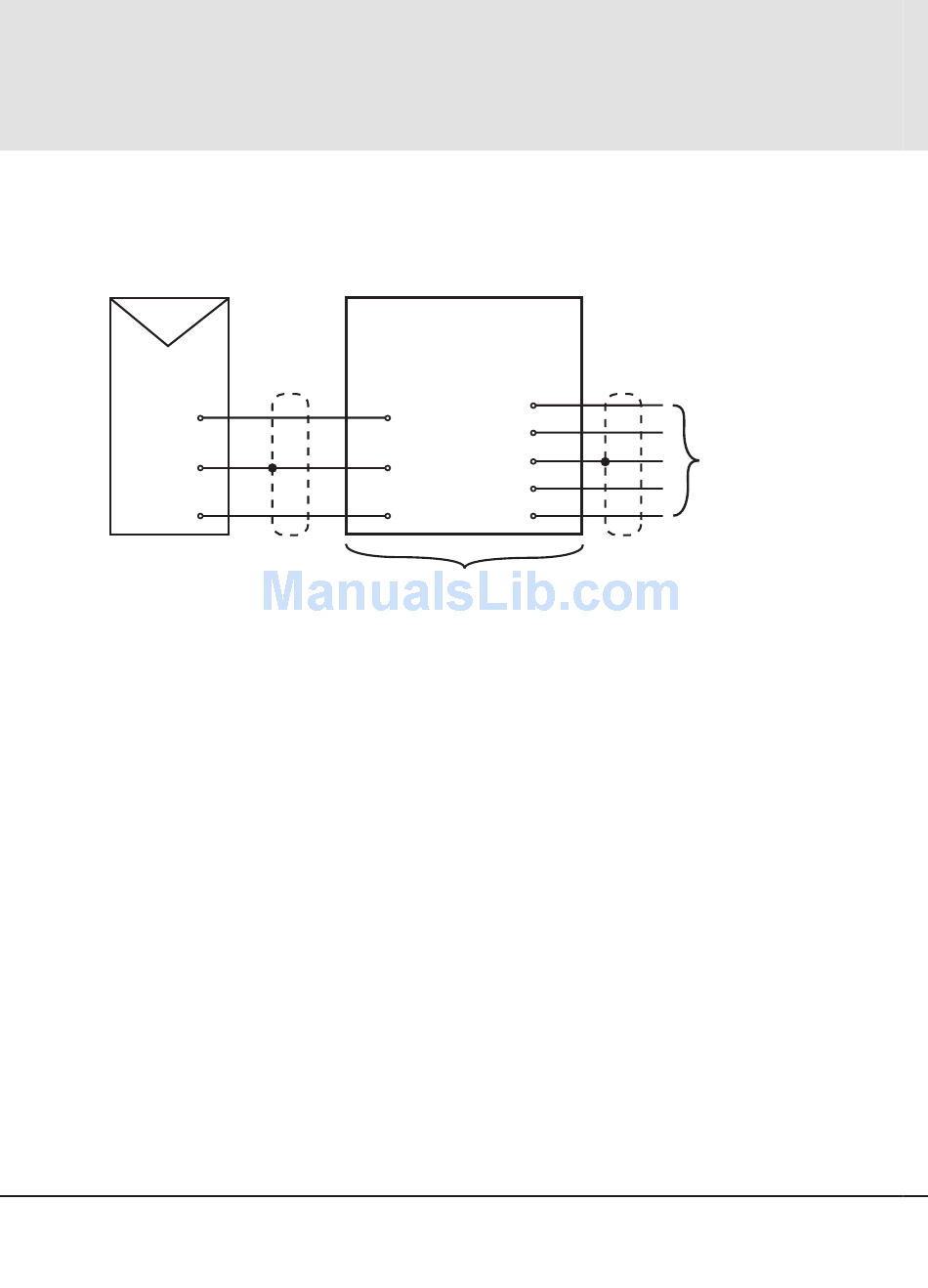

Standard 5-wire
connection onto a
DeviceNet network.
120 termination
resistors are required
at each end of
the network cable.
