Mcd200 With Mcd Remote Operator Option - Danfoss VLT Pocket Manual

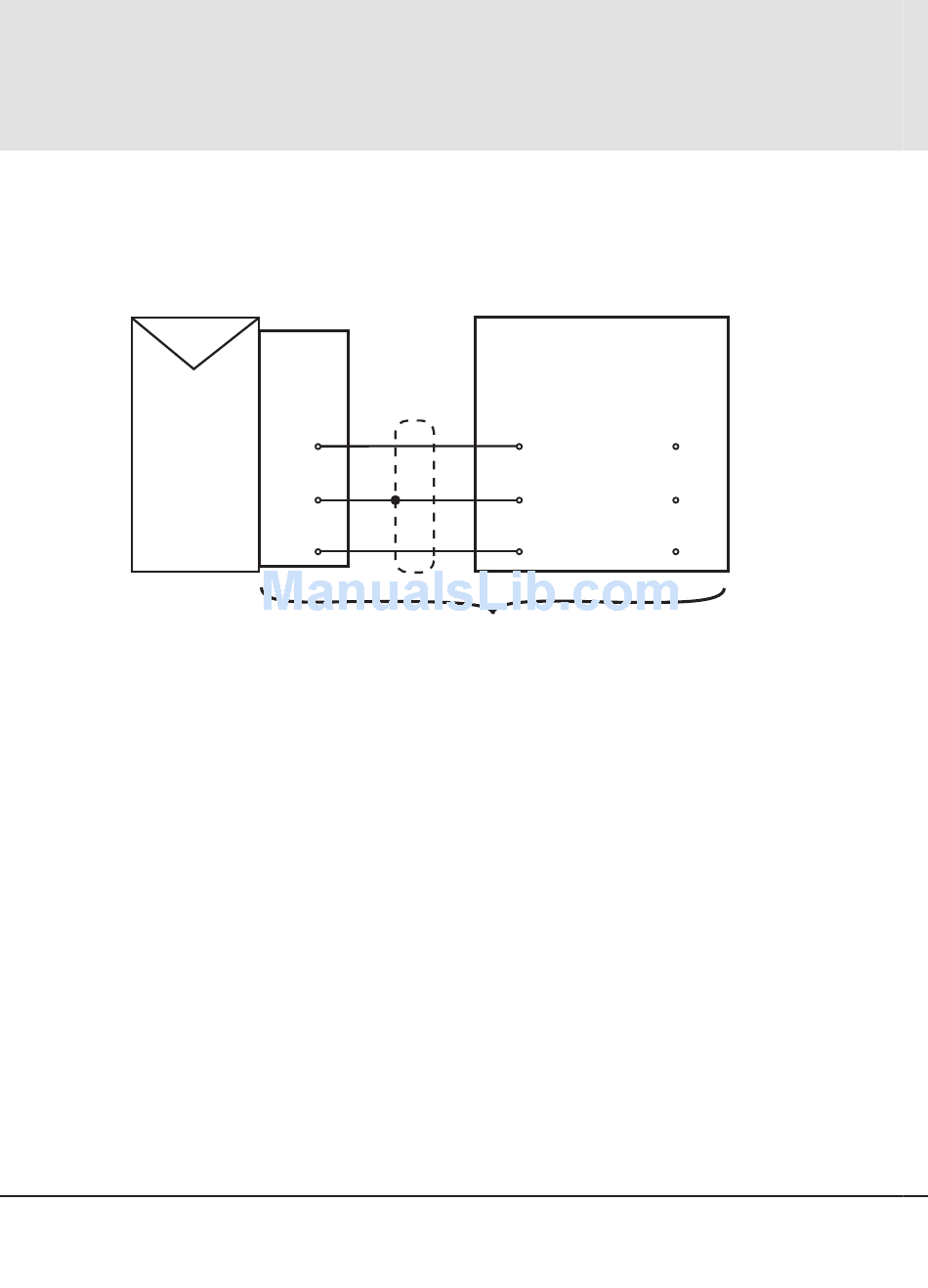

MCD200 with MCD Remote Operator Option

This requires an MCD Serial Interface Module which clips onto the side
of the MCD200. It is supplied with the MCD Remote Operator when
ordering Cat. No: 175G9004.
Serial
MCD200
Interface
Module
Notes
• A single MCD Remote Operator and MCD Serial interface Module is
required for each MCD200.
• No set-up or confi guration is required for operation.
• If two Remote Operators are required, the RS485 Network side of the
fi rst Remote Operator (terminals B6, B7, B8) must be
connected to the RS485 Starter side of the second Remote
Operator (terminals B1, B2, B3). The fi rst Remote Operator is ordered
using Cat. No: 175G9004 and the second Remote
Operator is ordered using Cat. No: 175G3061.
• The Serial Interface Module is powered by the MCD200. The Remote
Operator requires an external 18-30 VAC/DC auxiliary supply.
• For more information on the MCD Remote Operator, refer to the User
Manual (MG.17.Ex.02)) located at www.danfoss.com/drives.
50
MCD
-
69
GND
61
+
68
Cat. No: 175G9004
®
VLT Soft Starter Pocket Guide
MCD Remote Operator
RS485
RS485
Starter
Network
- -
B1
B6
GND GND
B2
B7
+ +
B3 B8
