MCD200 Modbus Option

There are two options to connect an MCD200 to a Modbus network.
Option 1: Using an MCD Modbus Module (Cat. No: 175G9000)
MCD200
Notes
• A single Modbus Module is required for each MCD200.
• Modbus Module settings are provided using two 8-way
DIP switches on the module.
• Up to 31 Modbus Modules can be used as Modbus slave devices
on a single Modbus RTU network.
• The Modbus Module is powered-up by the MCD200.
• For more information about operating the MCD Modbus Module,
refer to the Installation Instructions (MG.17.Fx.02), located at
www.danfoss.com/drives.

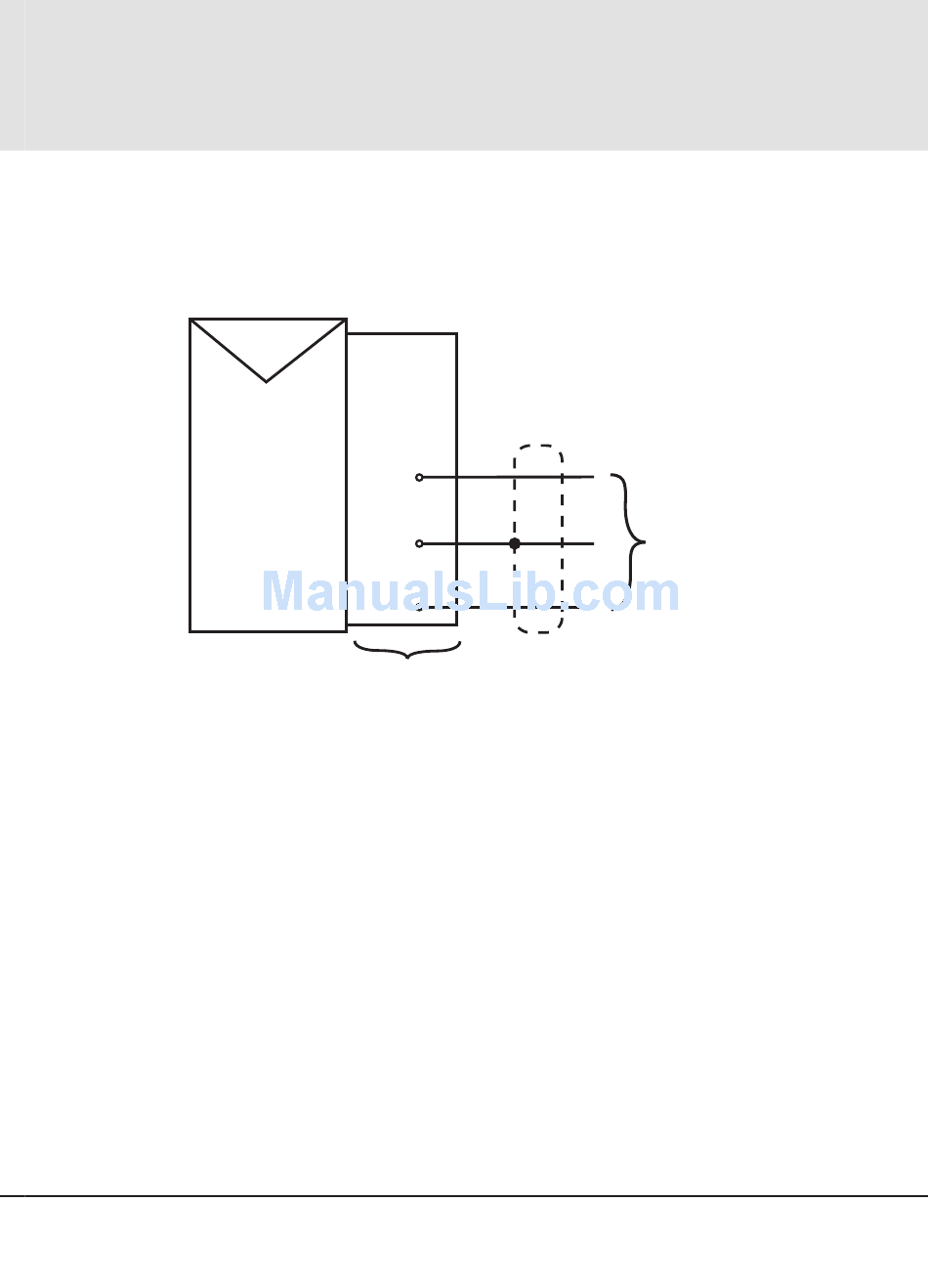

MCD
Modbus
Module
-
B6
GND
B7
+
B8
Cat. No: 175G9000
®
VLT Soft Starter Pocket Guide
RS485
connection
onto a
Modbus
RTU
network
