Short Circuit Protection: What is required for Type 2
short circuit protection of a soft starter?

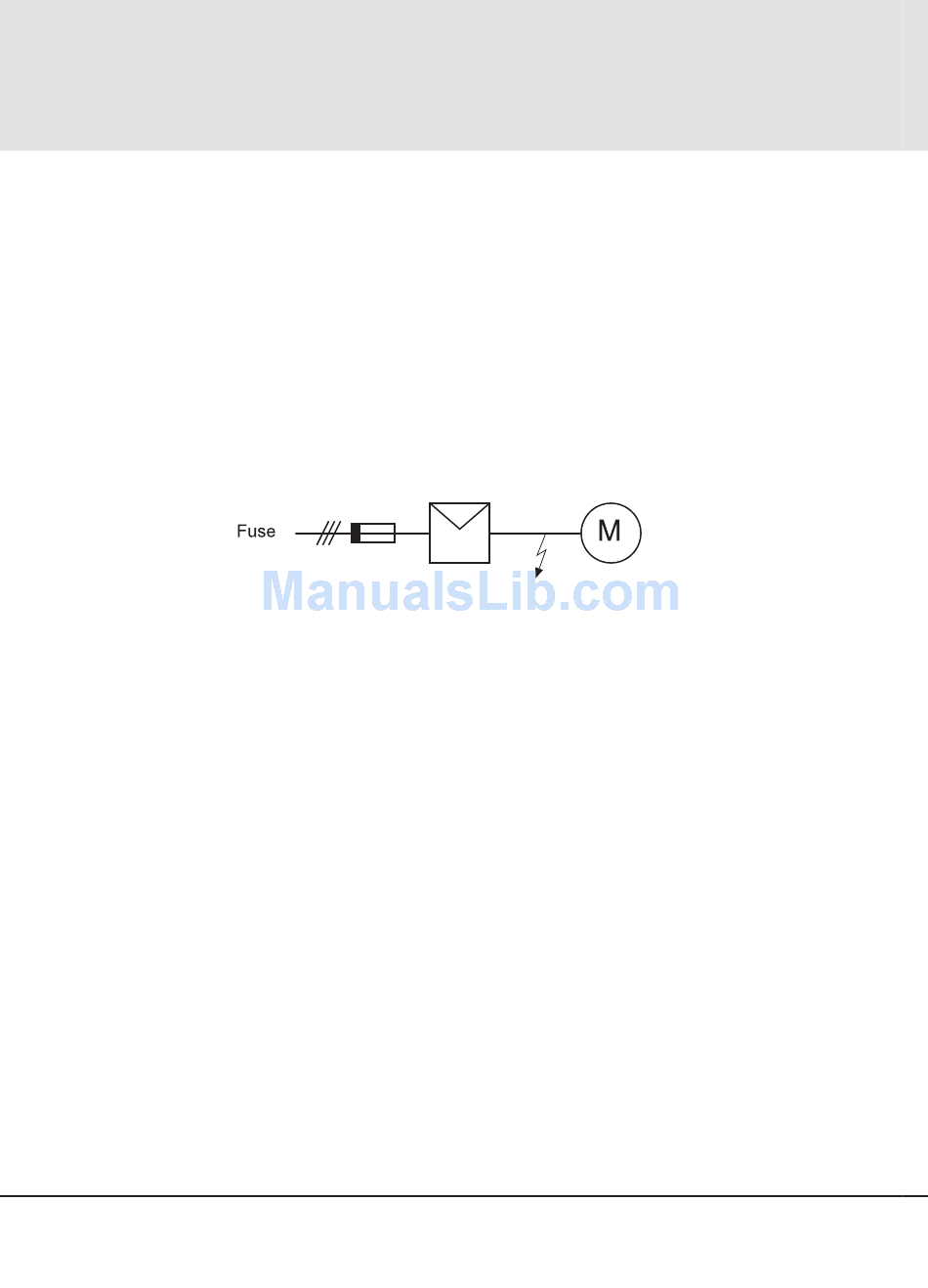

Type 2 protection requires that in the event of a short circuit on the
output of a soft starter the fault must be cleared without risk of injury
to personnel or damage to the soft starter.
Type 2 protection is provided by semiconductor fuses, which must be
able to carry motor start current and have a total clearing I2t less than
2
the I t of the soft starter SCRs.
Semiconductor fuses for Type 2 circuit protection are additional to HRC
fuses or MCCBs that form part of the motor branch circuit protection.
Refer to the soft starter's Design Guide for semiconductor fuse
recommendations.
®
