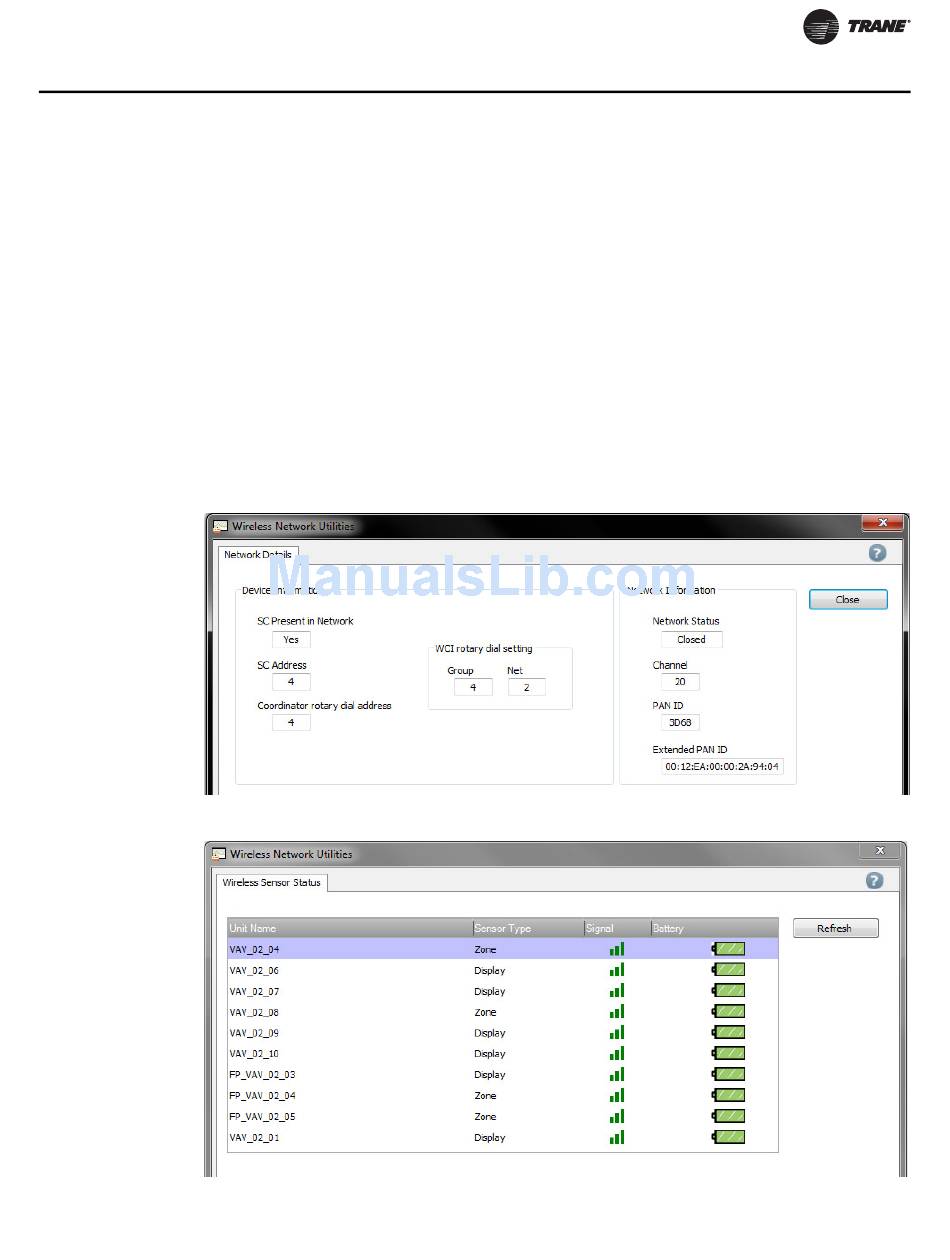

Figure 20. Network Details tab
Figure 21. Wireless Sensor Status tab
BAS-SVX40A-EN
Appendix: Using the Tracer™ TU Service Tool with Wireless Networks
Open Network: Select to allow a new member to join. Any WCI with a correct rotary address
setting that is located within radio range of the open network will join the network. (Similar to
OPEN_NET button on WCI.)
Close Network: Select to prevent new members from joining the network.
Exit Network: Select to remove the attached device from the network. Only available when TU
is attached to a unit controller that belongs to the network.
Disband Network: Select to disband the network.
Note: Tracer TU must be attached to the network coordinator.
Join Network: Select to join the network.
Create Network: Select to create a new network in which the attached device will be network
coordinator. (Similar to START button on WCI.)
Note: Typically, used for a unit controller that will be network coordinator when no Tracer SC
is present.
Advanced: Opens the Advanced tab (see Figure 21).
