Appendix: Using the Tracer™ TU Service Tool with Wireless Networks
3. On the right side of the Startup Task Panel, select TU Adapter - Wireless and then click the

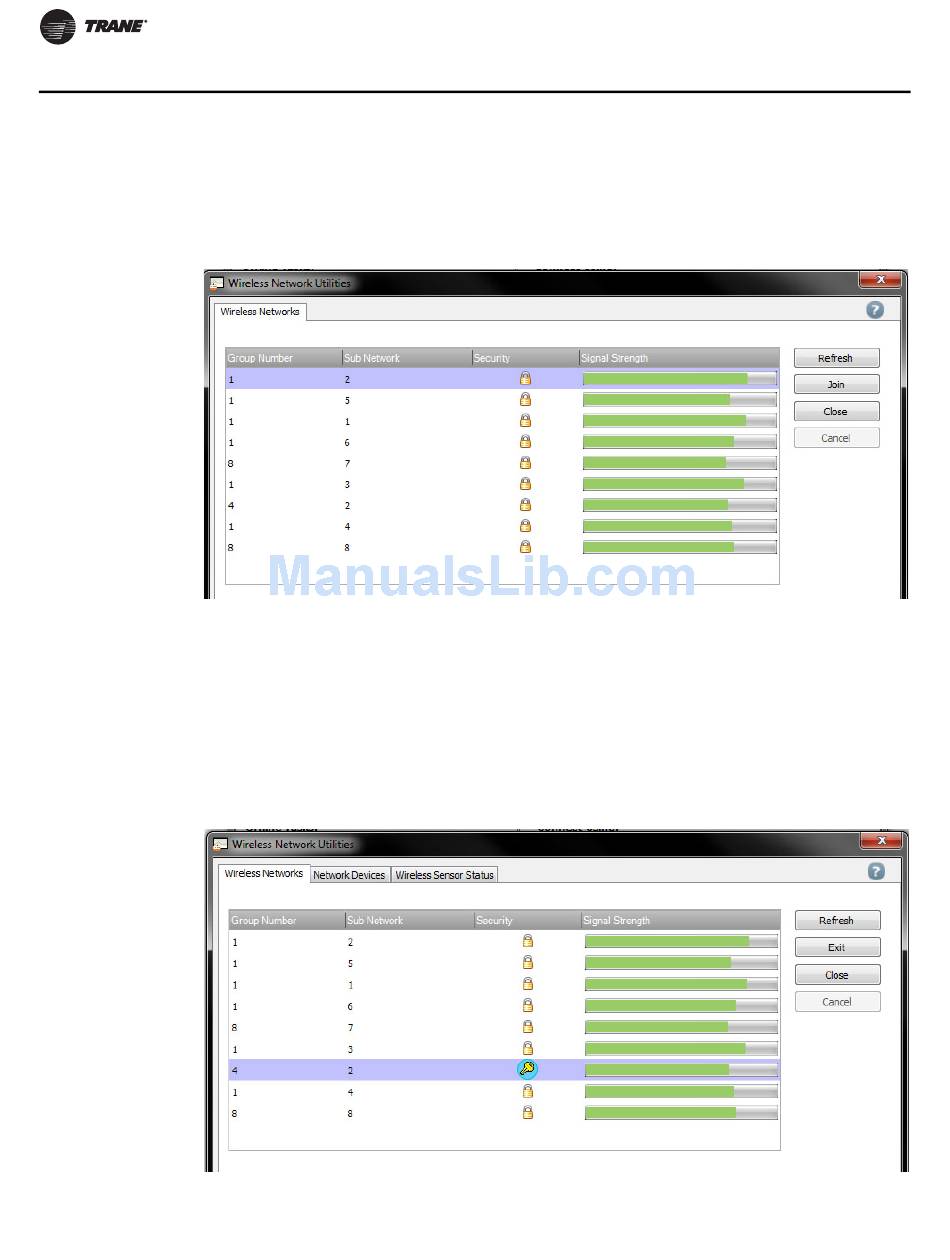

Figure 15. Wireless Network Utilities
4. Select the network you want Tracer TU to join. Click the Join button.
5. If a Tracer SC is present on the network, a log-in prompt appears. Enter your ID and password.
Figure 16. Wireless Network Utilities screen after joining the network
28
Connect button. The Wireless Network Utilities screen appears
and subnetwork numbers (which correspond to WCI address settings; see
p. 10), and signal strength for all existing wireless networks within radio range of Tracer TU.
Note: Tracer TU can join only one network at a time.
After log-in, the Wireless Network Utilities screen appears as shown in
Note: If no Tracer SC is present on the network, the screen shown in
the need to log in.
In the Security column, the lock icon is replaced by a key icon to identify the network that Tracer
TU has joined, and two additional tabs appear on the screen.
(Figure 15) showing the group
"WCI Addressing, "
Figure 16.
Figure 16 appears without
