Installation instructions for part 99-8249
Toyota Camry 2015-up
KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Painted to match factory finish
KIT COMPONENTS
• A)

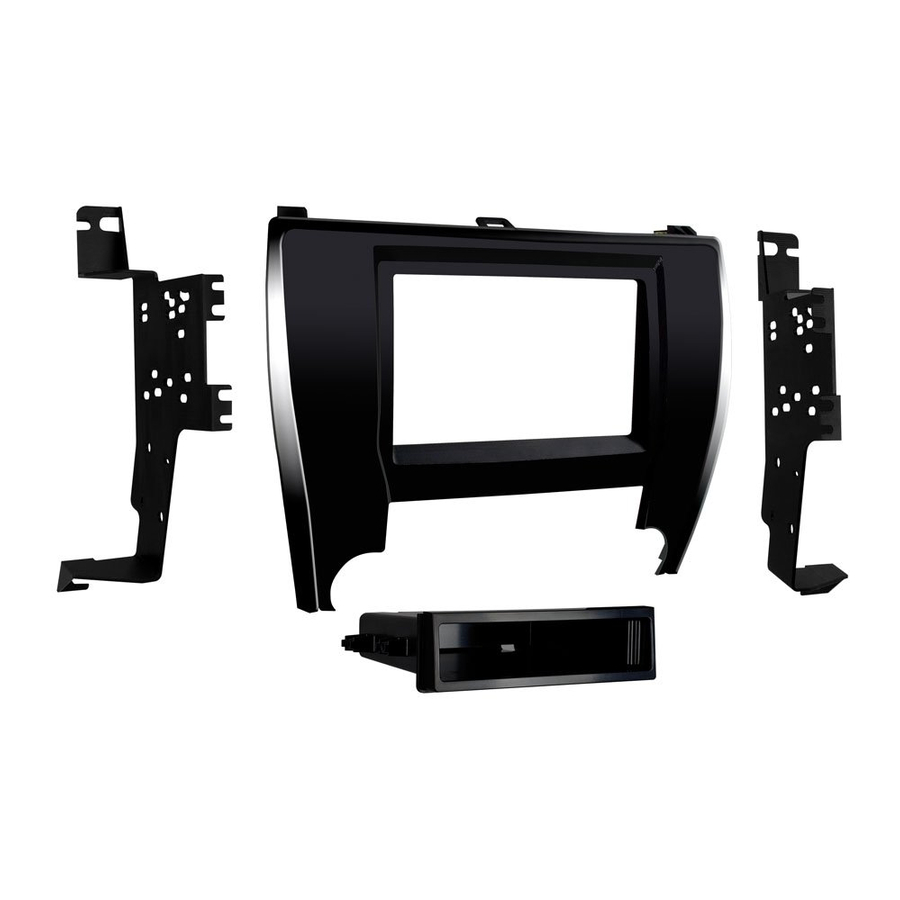

Radio housing trim panel
• B) Radio brackets • C) Pocket • D) (8) #8 x 3/8" Phillips screws
A
B
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: • 70-1761
Antenna Adapter: • 40-LX11
99-8249
C
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 10 mm nut driver or socket wrench
D
CAUTION: Metra recommends disconnecting the negative battery
terminal before beginning any installation, unless the vehicle
manufacturer recommends against so. Please check with your
local Dealership for more information. All accessories, switches,
climate controls panels, and especially air bag indicator lights
must be connected before reconnecting the battery or cycling
the ignition. Also, do not remove the factory radio with the key
in the on position, or the vehicle running. It would be best to
remove the key from the ignition and then wait a few seconds
before removing the factory radio.
