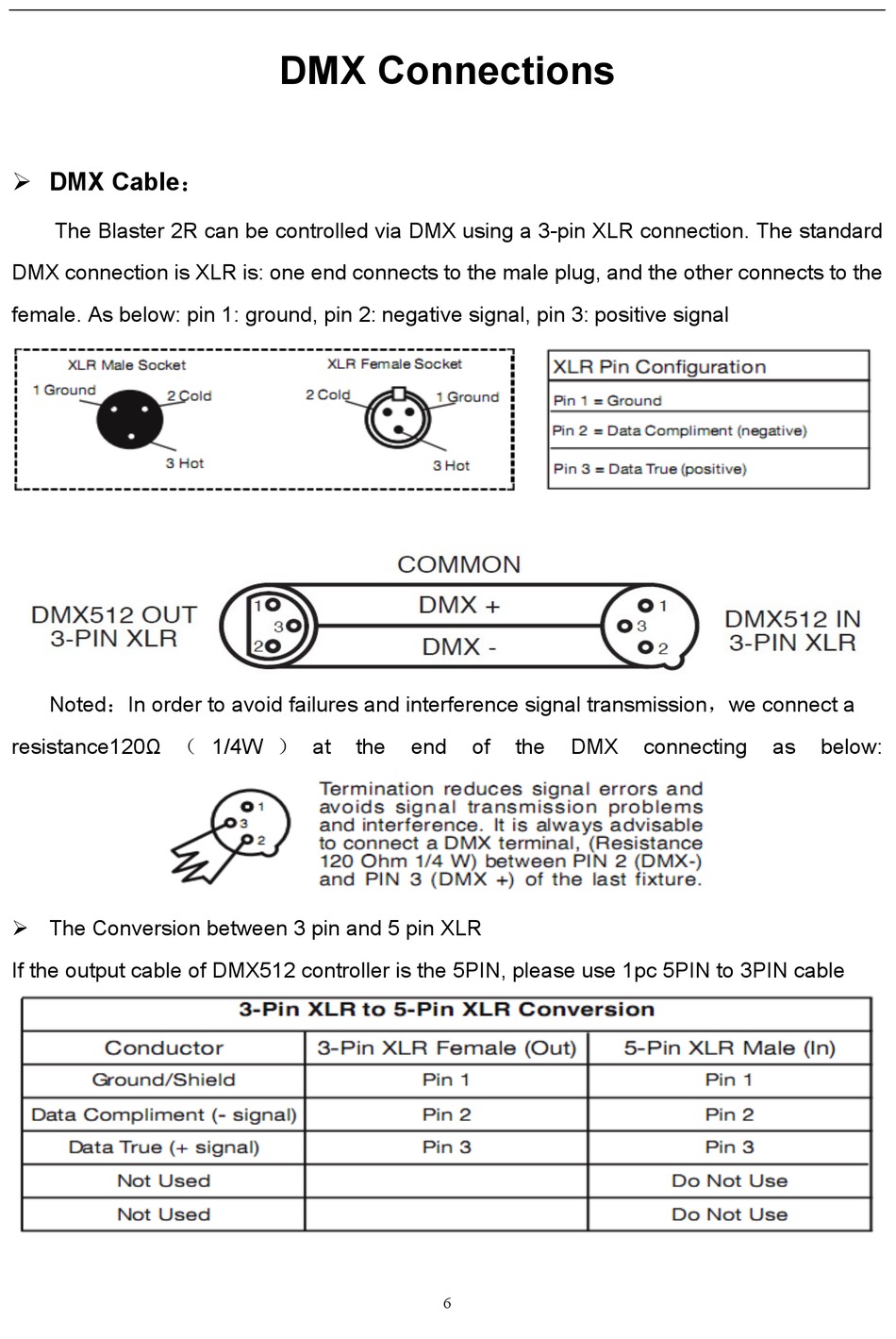

DMX Connections
Ø DMX Cable：
The Blaster 2R can be controlled via DMX using a 3-pin XLR connection. The standard
DMX connection is XLR is: one end connects to the male plug, and the other connects to the
female. As below: pin 1: ground, pin 2: negative signal, pin 3: positive signal
Noted：In order to avoid failures and interference signal transmission，we connect a
resistance120Ω （ 1/4W ） at
the
end
of
the
DMX
connecting
as
below:
Ø The Conversion between 3 pin and 5 pin XLR
If the output cable of DMX512 controller is the 5PIN, please use 1pc 5PIN to 3PIN cable
6
