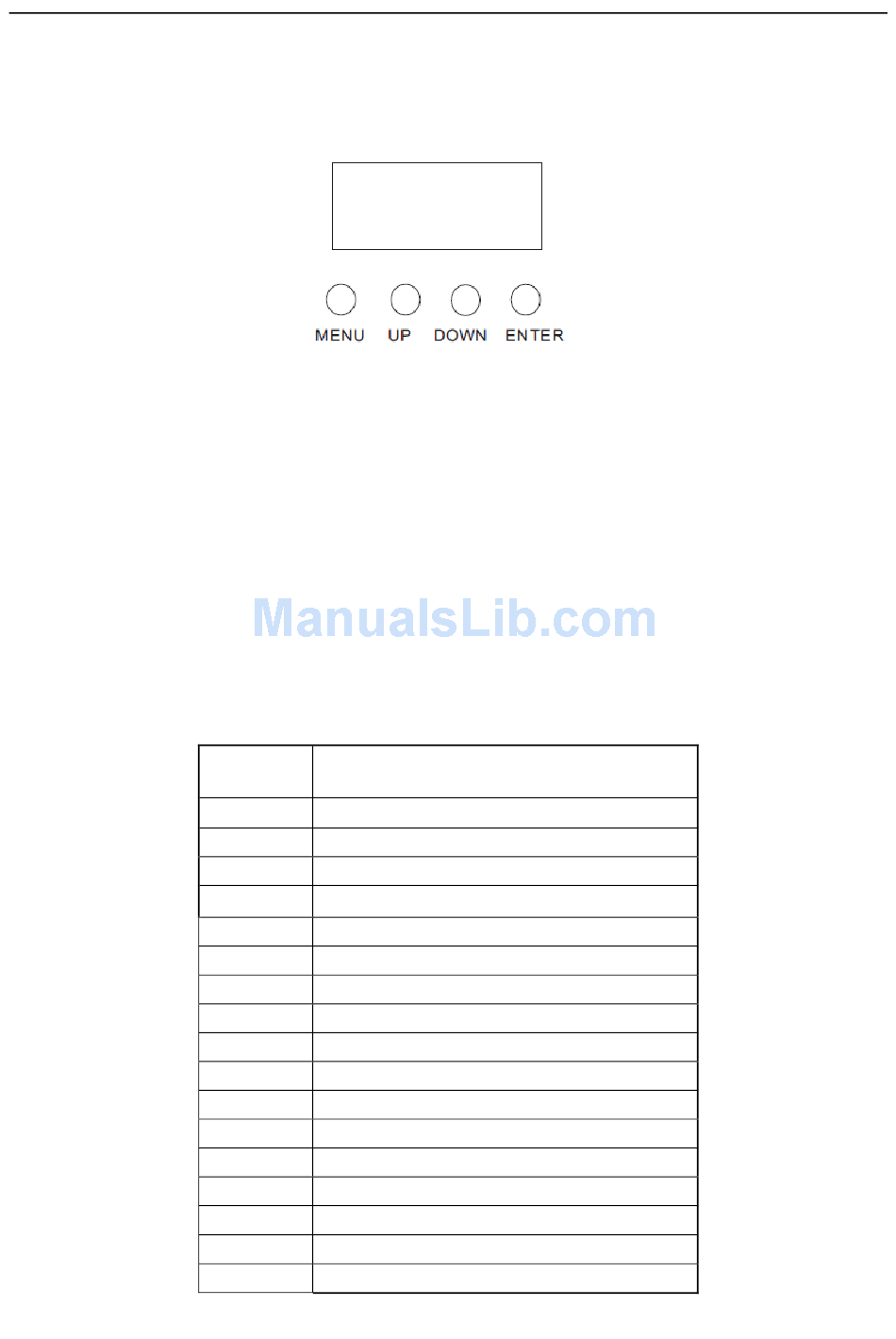

Display Operation; Dmx Values - ColorKey Blaster 2R User Manual

• MENU: Access the menu/Scroll through menu options
• ENTER: Open/Select the current menu option
• UP: Scroll through menu selection or parameter increase
• DOWN: Scroll through menu selection or parameters decrease
DMX 17 Channel Mode

Display Operation

DMX Values

Channel
Pan
1
Tilt
2
Color
3
4 Gobo
Pattern Macros
5
Pattern Rotation (double directions)
6
Pattern Rotation (horizontal/vertical)
7
Pattern Zoom
8
9 Horizontal Pattern Movement
Vertical Pattern Movement
10
Eccentri
11
Eccentri Shaking
12
Prism
13
Prism Auto Rotation
14
Dimmer
15
Shutter
16
Macro Function (active after 5 seconds)
17
Function
