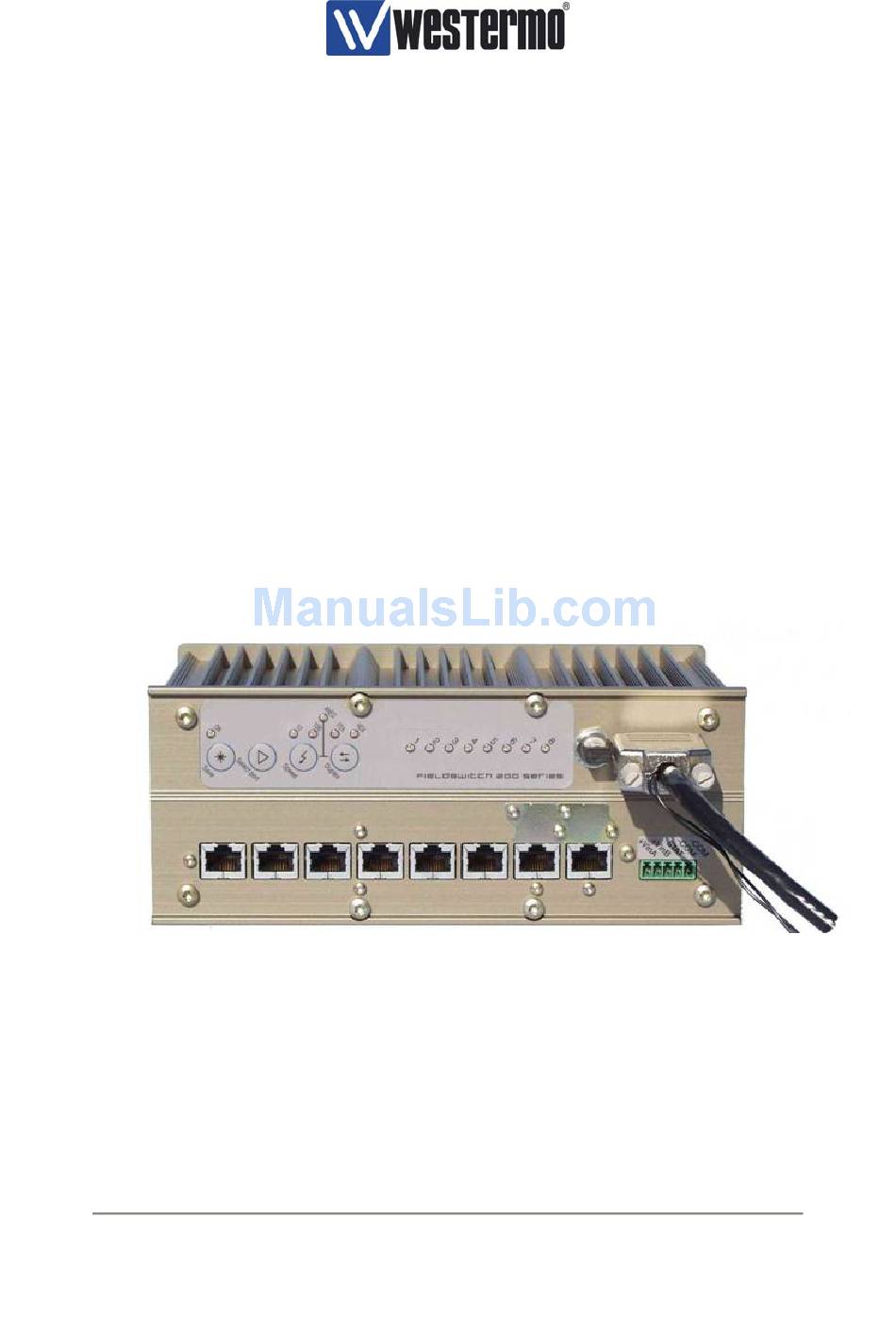

- Page 1 V4.2 U/R/T200 series Installation Guide www.westermo.com U/R/T200 series - 1 -...
-
Page 2: Table Of Contents
IEEE1588 T ..................- 30 - RANSPARENT LOCK SNTP ......................- 30 - TIME CLIENT PTP S ..........................- 31 - LAVE ......................- 31 - ERIAL TIME SERVER IRIG-B..........................- 32 - .................- 32 - UTPUT SIGNALS ON INTERFACE www.westermo.com U/R/T200 series - 2 -... - Page 3 SOFTWARE VERSIONS OF THE R/T200 SWITCH............- 35 - ........................- 35 - NTRODUCTION ........- 35 - OW TO UPGRADE FROM OLD TO NEW MAJOR SOFTWARE VERSION – ...............- 37 - CONFIGURATION TOOL SOFTWARE VERSIONS www.westermo.com U/R/T200 series - 3 -...
-
Page 4: Introduction
R200 series require minimum network knowledge by the user. 1.3 U200 The U200 series is an unmanaged switch implementation with QoS support (layer 2 and 3). The U200 switch series has the same approvals for industrial use as the R200 and T200 series. -
Page 5: Quick Install Guide
Setting up several R/T200 switches in a redundant ring using the FRNT0 protocol requires switch management configuration via the IP configuration tool. The program is available for download from the Westermo web page. Make sure that the IP Address of the configuration software (see figure below) is in the same sub domain as your PC. - Page 6 4. Press the ‘Scan for devices’ button. The Switches on the network will be listed, see below. 5. Run the cursor over the listed Switch and left click the mouse. 6. A new configuration Window will open: www.westermo.com U/R/T200 series - 6 -...
- Page 7 18. Press the ‘Restart’ button to re-configure the Switch. The Switch will run through the start sequence. During this period communication to the Switch will be lost. 19. Continue connecting Switches in this manner until the ring has been completed www.westermo.com U/R/T200 series - 7 -...
-
Page 8: Switch Installation And Configuration
The U/R/T200 wall mounting kit, MOUN0009, contains the following parts: 2 x short angle brackets 4 x nut brackets 2 x H – lists 4 x curved nuts 4 x rack screws 4 x rack brackets 8 x brackets 8 x screws www.westermo.com U/R/T200 series - 8 -... -
Page 9: 19" Single Unit Mounting
4 x rack screws 4 x rack brackets 8 x brackets 8 x screws Figure 3 shows how to mount on U/R/T200 by using the 19” single unit mounting kit. This mounting kit must be ordered separately. www.westermo.com U/R/T200 series - 9 -... -
Page 10: Wall Mounting
The U/R/T200 wall mounting kit, MOUN0006, contains the following parts: 2 x short angle brackets 4 x nut brackets 8 x brackets 8 x screws Figure 4 shows how to mount the wall mounting kit. This mounting kit must be ordered separately. www.westermo.com U/R/T200 series - 10 -... -
Page 11: Power Connection
Figure 5, Power input 3.1.6 Copper drop link connection Both straight and crossed RJ45 cables can be used for copper connection, see Operator Manual for details related to the Auto-MDIO operations. 3.1.7 Fiber drop link connection www.westermo.com U/R/T200 series - 11 -... -
Page 12: Power Supply Connector
Power Supply Failure • Focal Point / Redundancy Mode activated. • Time sync error; NMEA reports or PPS missing on RS232/422 interface Using the Switch configuration software, the fault contact can highlight the following addition failures: www.westermo.com U/R/T200 series - 12 -... -
Page 13: Front Panel Led's And Push Buttons
If no buttons are pressed for 30 seconds the unit will return back to Normal Indication Mode. 3.3.4 Speed Button Pressing the Speed button once selects 10M, twice enables 100M. 3.3.5 Duplex Button Pressing the Duplex button changes the Port duplex mode from full duplex to half duplex and vice-versa. www.westermo.com U/R/T200 series - 13 -... -
Page 14: Auto-Negotiation
Therefore, a small piece of dust or contaminate located on the end of a patch cable could easily disrupt communications. Permanent damage to both fiber patch cords and fiber optic transceiver components may be the result of just a small invisible piece of dust! www.westermo.com U/R/T200 series - 14 -... - Page 15 Keep hands clean when touching fiber optic cable. • Patch cables should be cleaned with IPA and dried with a lint-free cloth before installation. • Once patch cables have been installed dust will not ingress the transceiver www.westermo.com U/R/T200 series - 15 -...
-
Page 16: Ip Configuration Software
V4.2 4 IP Configuration Software The Westermo switches are configured using supplied software. The program is available for download from Westermo web page. Extract the .ZIP file to your computer, the application is called IP configuration. Start the application from a PC on the network. Make sure that the IP Address of the configuration software (see figure below) is in the same sub domain as your PC. - Page 17 • Switch MAC Address • Firmware Revision • Configuration Style • Ring Status Alarms Figure 9 By clicking on the line for each respective switch, further configuration opportunities will appear. See below. Figure 10 www.westermo.com U/R/T200 series - 17 -...
- Page 18 BUS. An exclamation mark will be shown on the ports that have lost connection. • Scanning For Devices Highlights All Switches On Ring • Ring Failure Occurred • FP Now Running As Bus • Highlights Link / Port That Have Failed www.westermo.com U/R/T200 series - 18 -...
- Page 19 Figure 13, FRNT v1 Multiple ring configuration By clicking the “port config” button in the “Port configuration” setup dialog box will appear, see Figure 14. See chapter 4.11 for more details. Figure 14, Port configuration setup www.westermo.com U/R/T200 series - 19 -...
-
Page 20: Frnt Version 0 - Single Ring
By clicking the “VLAN” button in the “VLAN configuration” setup dialog box will appear, see Figure 15. The VLAN tick box must be enabled before the VLAN button is enabled. See chapter 4.13 for more details. Figure 15, VLAN configuration setup 4.1 FRNT version 0 – single ring www.westermo.com U/R/T200 series - 20 -... -
Page 21: Frnt Trouble Shooting
Check cabling, port 8 must be connected to port 7 on the next switch. Only one FRNT v0 focal point switch is allowed in a ring. Setting FRNT parameters require restart of the switch. www.westermo.com U/R/T200 series - 21 -... -
Page 22: Frnt Version 1 - Multiple Rings
Tree Protocol (STP) fallback, where fallback means that the switch will act as a STP enabled switch if other switches in the network only support STP. This RTSP protocol is based on IEEE802.1w and the STP protocol is based on IEEE802.1D. RTSP/STP is an alternative to the FRNT. www.westermo.com U/R/T200 series - 22 -... -
Page 23: Snmp
The IP address of the SNMP Host (NMS - Network Monitoring Stations) must be defined before SNMP traps can be generated by the R/T200 switch and sent to the NMS. This is done by setting the address in the Westermo private MIB part general/trapHostAddr. The SNMP TRAP is sending TCP/UDP packets on port 162. -
Page 24: Dhcp
To enabled the monitoring of the temperature in the switch - use the tempAlarm trap. Westermo/switch/fs200/tempAlarm/tempTrapEn. The switch sends a SNMP TRAP when the temperature has raised the predefined limit. The Trap host address is set by the Westermo private Management Information Base MIB) general part. -
Page 25: Enabling Push Buttons
(IGMP server) and the IGMP Querier in the network is selected automatically. The switch (with Querier support) in the network with the lowest IP address will be chosen as the network Querier (i.e. IGMP focal point). Only one Querier will exist in the network if www.westermo.com U/R/T200 series - 25 -... -
Page 26: Vlan
The VLAN that is selected as the default VLAN for a given port will appear as a VLAN that cannot be changed. Other VLANs selected for the same port have only relevance in case the www.westermo.com U/R/T200 series - 26 -... - Page 27 MAC address will get through N VLAN enabled switches. This property has the following practical impact on the IP configuration tool: the user must type “Scan for switches” a few times before the complete switch list will appear. www.westermo.com U/R/T200 series - 27 -...
-
Page 28: Time Synchronization
5 Time synchronization The T200 can be enabled for time synchronization by ticking the “Enable time sync” box. This box is only available on the T200 switches (i.e. Westermo switches with hardware level time stamping support). Press the ‘Set’ button and then the ‘Reset’ button to restart the Switch after any changes performed on the time synchronization parameters in the IP configuration tool. - Page 29 RS422 Pulse per second negative stripe transmit Table 2, pin-out Acutime Gold interface connector Connector type T200: 15-pol high density D-sub type connector, female part on the switch and male part on cable assembly. www.westermo.com U/R/T200 series - 29 -...
-
Page 30: Ieee1588 Transparent Clock
V4.2 Connection to the Acutime Gold: Westermo provide cables that are pre-assembled, the Acutime end is sealed for outdoor installations. The following standard cable lengths are available: 15 m and 30 m. But cables up to 120 m can be provided. -
Page 31: Ptp Slave
The user can define a minimum stratum level at the PTP Slave that shall be used in order to qualify incoming PTP time sync packets from a PTP Grand Master. This can be done via SNMP. The following parameter in the “timesync” group of the private MIB of Westermo can be set: SlaveStratum, OID: 1.3.6.1.4.1.16177.1.1.5.26. -
Page 32: Irig-B
Grand master. Configuration of these two signals, OUT 1 and OUT 2, is done via SNMP. The following parameters in the timesync group of the private MIB of Westermo can be set: tsOut1Config[low, IRIG-B, PPX, high, xKHz], OID: 1.3.6.1.4.1.16177.1.1.5.16. tsOut2Config [low, IRIG-B, PPX, high, xKHz], OID: 1.3.6.1.4.1.16177.1.1.5.17. -
Page 33: Return Procedure
OUT 2 is pin 3 and 7 (ground) in case of TTL and pin 13(+) and 8(-) in case of RS422. 6 Return procedure Contact your equipment supplier before returning any equipment. Equipment will not be accepted without an allocated returns number. www.westermo.com U/R/T200 series - 33 -... -
Page 34: Upgrading Of The R/T200 Switch
PC. If this is the case, you either need to configure your firewall to allow FTP access, or simply disable the firewall while you are upgrading your Westermo switch. www.westermo.com U/R/T200 series... -
Page 35: Software Versions Of The R/T200 Switch
(switches in green). The two rings are connected via the two focal points through a copper drop link (TX). One extra R/T200 switch is required in order to perform this upgrade procedure. www.westermo.com U/R/T200 series - 35 -... - Page 36 SWITCH MEMBER SWITCH MEMBER SWITCH FOCAL POINT SWITCH Step 3 MEMBER FOCAL POINT SWITCH SWITCH MEMBER SWITCH MEMBER SWITCH Step 4 MEMBER FOCAL POINT SWITCH SWITCH MEMBER SWITCH Figure 18, Major software version upgrade www.westermo.com U/R/T200 series - 36 -...
-
Page 37: Ip Configuration Tool - Software Versions
The IP configuration tool version 9.9.x or newer can be used versus any managed switch from Westermo. Switch control options for a given switch will be enabled based on the type of switch and software version running on the switch. This means that no separate release note exist for a new version of the IP configuration tool.
