Chapter 5: Working with BLDS™

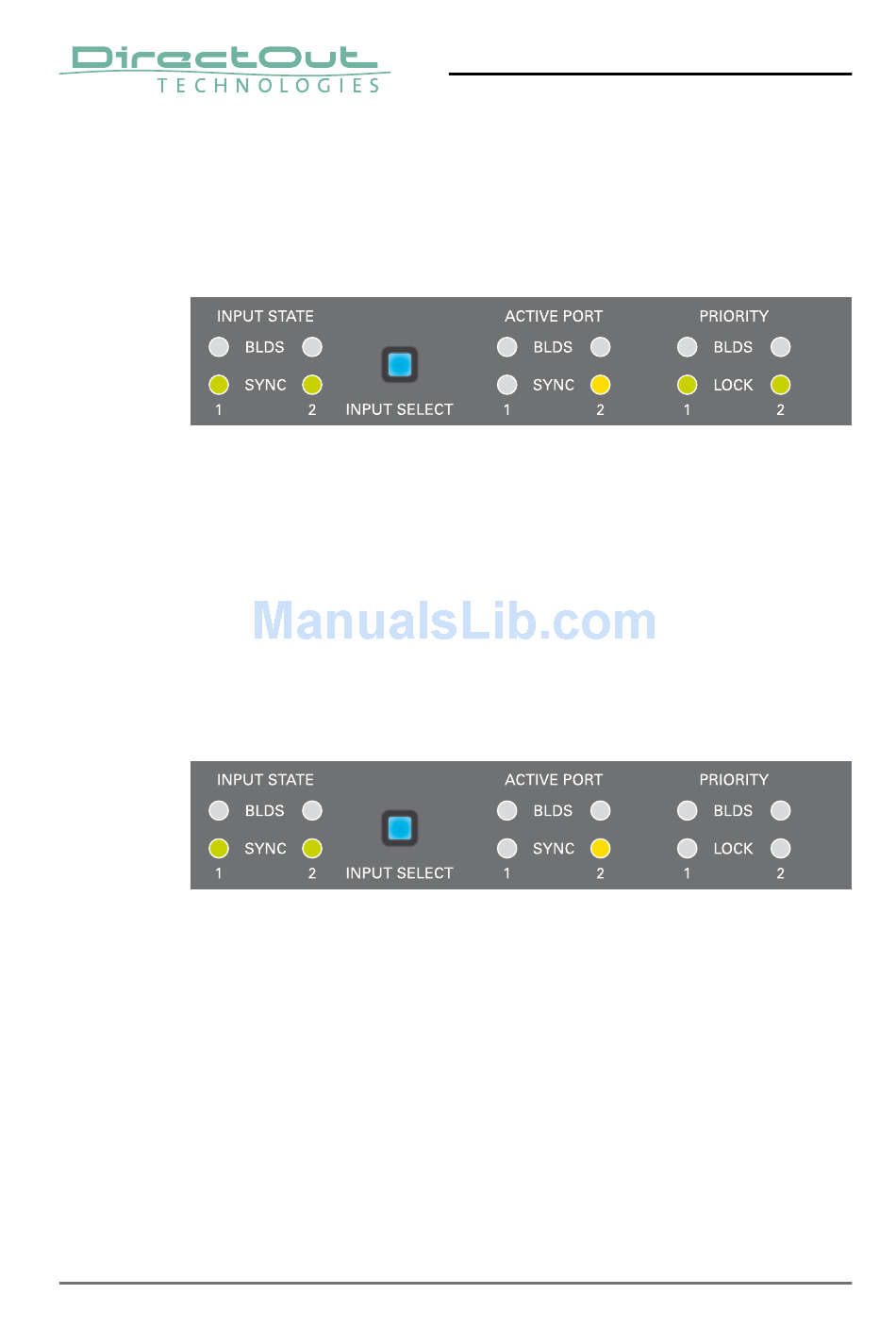

Example 3 - Lock, no priority
Both MADI inputs detect a valid input signal without
valid BLDS signal. No input is prioritized and input 2 is
active. If input 2 fails (Loss of carrier), input 1 is used.
Once input 2 regains signal the switch will remain at
input 1.
Example 4 - Manual switching
Both MADI inputs detect a valid input signal without
valid BLDS signal. No input is prioritized and input 2 is
active. No automatic switch-over will occur at signal
loss.
