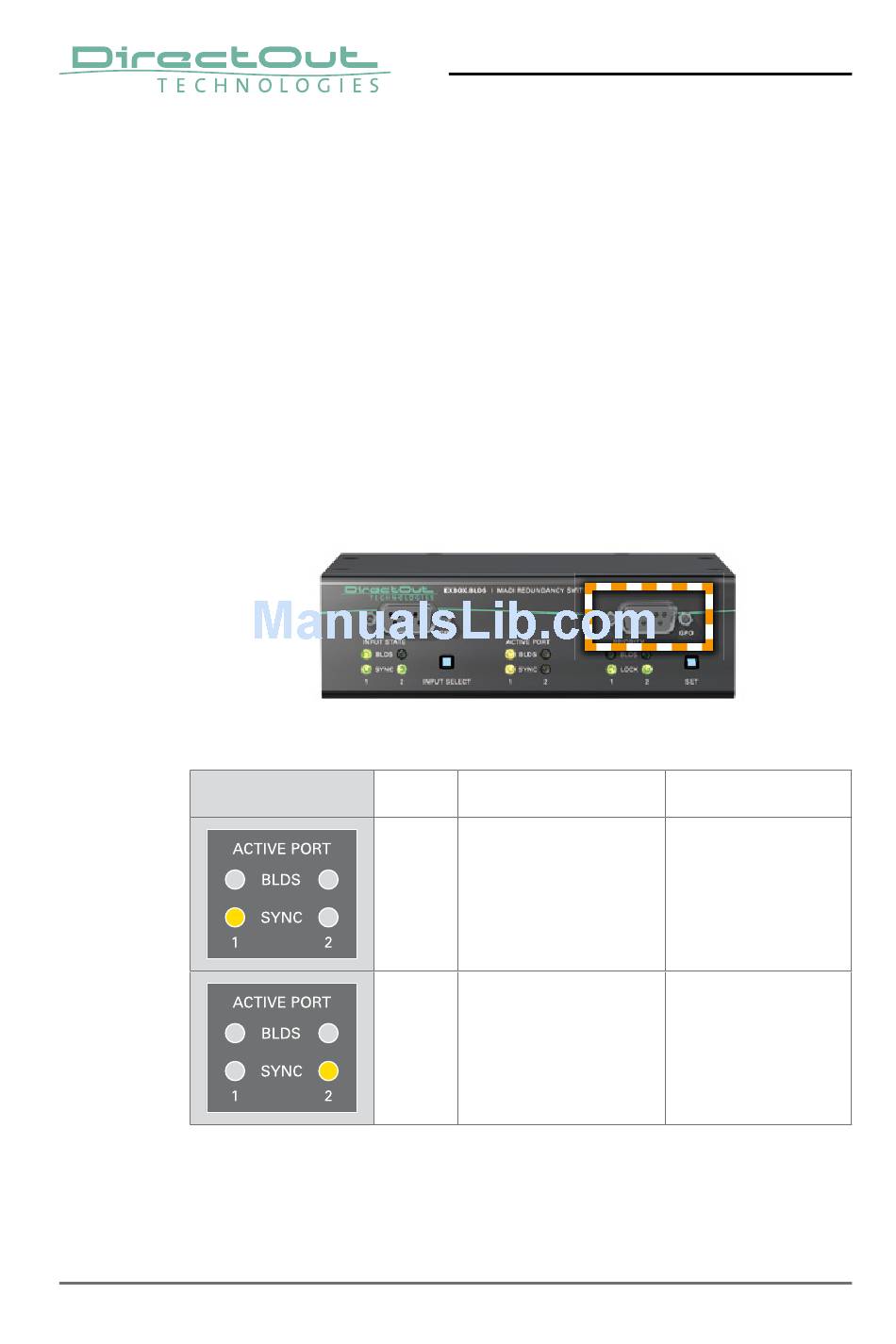

Monitoring via GPO

Four GPOs enable reporting of the output state
(active input and BLDS presence) by external
equipment.
Each GPO uses a low resistance (FET) switch to
ground (GND). It can handle an external voltage
source between 0 V and 24 V.
A 5 V local voltage source can also be used for
signalling purposes. Its output is current-limited to
200 mA.
GPO
1
2
CHAPTER 4: Operation
Monitor
Input 1 is used
for output –
Sync Input 1
Input 2 is used
for output –
Sync Input 2
EXBOX.BLDS Manual - Version 1.3
Comment
blinking,
when input is
forced but no
signal lock
blinking,
when input is
forced but no
signal lock
