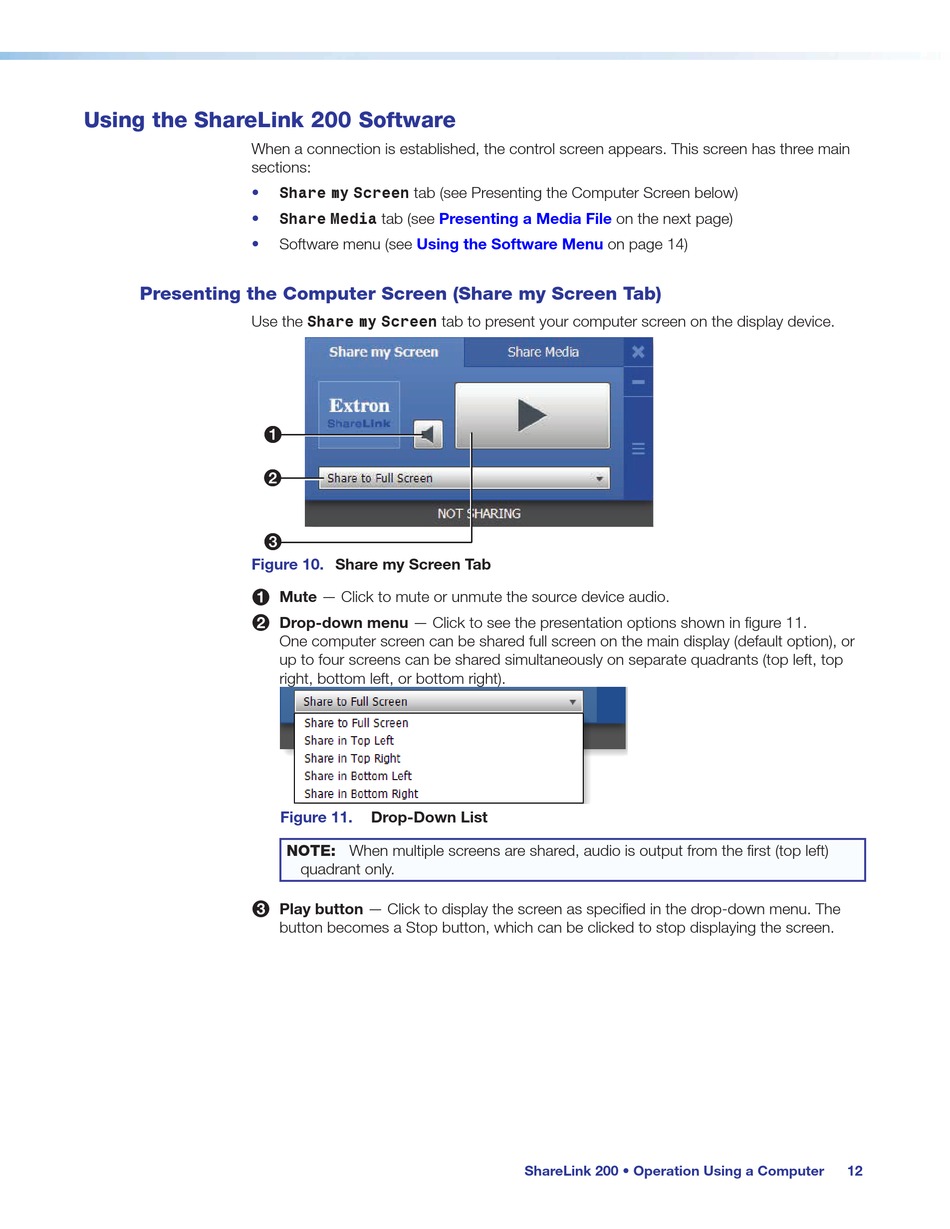

Using the ShareLink 200 Software

When a connection is established, the control screen appears. This screen has three main
sections:
•
•
•

Presenting the Computer Screen (Share my Screen Tab)

Use the Share my Screen tab to present your computer screen on the display device.
Figure 10.
1
2
3
Share my Screen tab (see Presenting the Computer Screen below)
Share Media tab (see Presenting a Media File
Software menu (see Using the Software Menu
1 1
2 2
3 3
Share my Screen Tab
Mute — Click to mute or unmute the source device audio.
Drop-down menu — Click to see the presentation options shown in figure 11.
One computer screen can be shared full screen on the main display (default option), or
up to four screens can be shared simultaneously on separate quadrants (top left, top
right, bottom left, or bottom right).
Figure 11. Drop-Down List
NOTE: When multiple screens are shared, audio is output from the first (top left)
quadrant only.
Play button — Click to display the screen as specified in the drop-down menu. The
button becomes a Stop button, which can be clicked to stop displaying the screen.
on the next page)
on page 14)
ShareLink 200 • Operation Using a Computer 12
