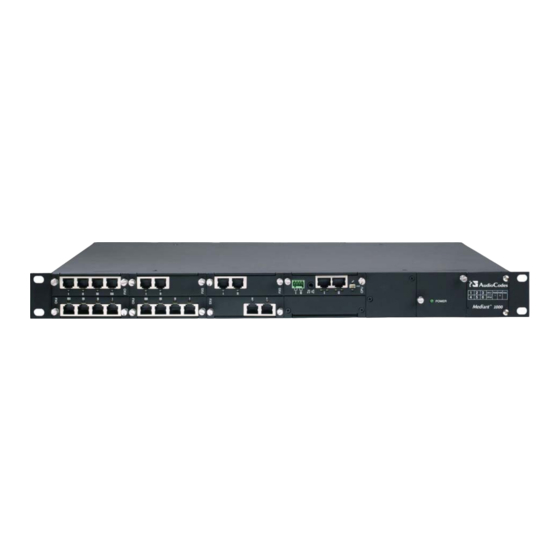

AudioCodes MEDIANT 1000 Configuration Manual

Digital access gateway
Hide thumbs Also See for MEDIANT 1000:
Table of Contents

Advertisement

Quick Links

See also: Troubleshooting Manual , User Manual
AudioCodes
Digital Access Gateway
Mediant 1000
Configuration Guide
Nortel SCS
&
AudioCodes Mediant 1000
Version 5.4
Document #: LTRT-12601
October 2009

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MEDIANT 1000 and is the answer not in the manual?

Questions and answers

Related Manuals for AudioCodes MEDIANT 1000

Summary of Contents for AudioCodes MEDIANT 1000

  • Page 1 AudioCodes Digital Access Gateway Mediant 1000 Configuration Guide Nortel SCS & AudioCodes Mediant 1000 Version 5.4 Document #: LTRT-12601 October 2009...

  • Page 3: Table Of Contents

    Configuring the Trunk Group Table ................ 25     4.3.3 Configuring the Trunk Settings ................27 AudioCodes ini File ..................33     Installing Nortel SCS on AudioCodes Mediant 1000 OSN......39     Restoring Factory Default Settings ..............43     Version 5.4 October 2009...

  • Page 4: List Of Figures

    Figure 3-3: BIOS Setup ......................... 18   Figure 3-4: BIOS Setup – Save Changes and Exit ................19   Figure 4-1: Mediant 1000 Front Layout ....................21   Figure 4-2: Recommended Priority Module Slot Assignment ..............21   Figure 4-3: Remove Module Button Appears after Clicking Module Name ........... 22  ...

  • Page 5: List Of Tables

    Module Replacement Procedure Contents List of Tables   Table 4-1: Trunk Group Table Description .................... 26   Table 4-2: Trunk (E1/T1/J1/BRI) Configuration Parameters ..............29 Version 5.4 October 2009...
  • Page 6 Mediant 1000 Reader’s Notes Module Replacement Procedure Document #: LTRT-12601...

  • Page 7: Weee Eu Directive

    IPmedia, Mediant, MediaPack, NetCoder, Netrake, Nuera, Open Solutions Network, OSN, Stretto, TrunkPack, VoicePacketizer, VoIPerfect, VoIPerfectHD, What’s Inside Matters, Your Gateway To VoIP and 3GX are trademarks or registered trademarks of AudioCodes Limited. All other products or trademarks are property of their respective owners.

  • Page 8: Related Documentation

    Mediant 1000 Related Documentation Document No. Manual Name LTRT-83103 Mediant 1000 and Mediant 600 SIP Release Notes Ver. 5.4 LTRT-833xx Mediant 1000 SIP User's Manual LTRT-83503 Mediant 1000 MEGACO-SIP Installation Manual Ver. 5.4 SCS R3.0 Task http://support.nortel.com/go/main.jsp?cscat=DOCDETAIL&id=914233&poid=19081 Based Guides Module Replacement Procedure...

  • Page 9: Introduction

    Based Guides (http://support.nortel.com/go/main.jsp?cscat=DOCDETAIL&id=914233&poid=19081) focuses on how to configure the AudioCodes Mediant 1000 with the Nortel Software Communication System (SCS). The Mediant 1000 is a modular gateway that can be combined with various modules (FXS, FXO, Trunk or BRI). The configuration of the Mediant 1000 is composed of the following stages: Physically install the gateway.
  • Page 10 Mediant 1000 Reader’s Notes Module Replacement Procedure Document #: LTRT-12601...

  • Page 11: Gateway Setup Notes

    Configuring the gateway via the Web interface – refer to Section Configuration Files For initial setup and configuration, you can upload an ini file to the AudioCodes gateway that includes the template ini file settings shown in Section 5. Simply create a new text file (e.g., using Microsoft Notepad) with the file extension *.ini, copy and paste the ini file...

  • Page 12: Figure 2-2: Sip General Parameters

    Mediant 1000 To configure the AudioCodes’ gateway, using the Web interface: Open General Parameters page (Configuration Tab: Protocol Configuration > Protocol Definition > SIP General Parameters). Figure 2-2: SIP General Parameters Change the following parameters: • Fax Signaling Method: “T.38 Relay”...

  • Page 13: Figure 2-3: Proxy & Registration Parameters

    Module Replacement Procedure 2. Gateway Setup Notes Open the Proxy & Registration page (Configuration Tab: Protocol Configuration > Protocol Definition > Proxy & Registration). Figure 2-3: Proxy & Registration Parameters Change the following parameters: • Use Default Proxy: “Yes” • Enable Registration: “Enable”...

  • Page 14: Figure 2-4: Proxy Sets Table

    Mediant 1000 Open the Proxy Set Table page (Configuration Tab: Protocol Configuration > Protocol Definition > Proxy Sets Table). Figure 2-4: Proxy Sets Table Add the following parameter: • Proxy Address: SCS IP Address (e.g., 10.15.7.15) Open the Coders page (Configuration Tab: Protocol Configuration > Protocol Definition >...

  • Page 15: Figure 2-6: Dtmf & Dialing

    Module Replacement Procedure 2. Gateway Setup Notes Open the DTMF & Dialing page (Configuration Tab: Protocol Configuration > Protocol Definition > DTMF & Dialing). Figure 2-6: DTMF & Dialing Change to Full view. Change the following parameters: • Max Digits In Phone Num: “30”...

  • Page 16: Figure 2-8: Authentication

    Mediant 1000 Add / Select the following parameters: • Module: Select the FXS module from the drop-down list. • Channels: Select the FXS Port number. (e.g., “1”) • Phone Number: Telephone extension number. (e.g., “500”) Open the Trunk Settings page (Configuration Tab: Protocol Configuration >...

  • Page 17: Nortel Scs Installation

    Nortel SCS Installation The Nortel SCS software comes pre-installed on AudioCodes part code M1K-CH-SCS. This order code includes the Mediant 1000 basic chassis (with the CMC, PS and accessories) with the OSN1 Connection module and the SCS preloaded on the HDD.

  • Page 18: Figure 3-2: Bios Display

    Mediant 1000 Figure 3-2: BIOS Display The following BIOS Setup will be displayed. Figure 3-3: BIOS Setup Configure / ensure that the date and time are correct. Press Esc one time and return back to the main Bios Setup page.

  • Page 19: Figure 3-4: Bios Setup - Save Changes And Exit

    Module Replacement Procedure 3. Nortel SCS Installation Figure 3-4: BIOS Setup – Save Changes and Exit Wait until the User Name is displayed on the console. From this point, follow the Nortel SCS Task Based Guides (TBG) for configuration of the SCS software. For SCS installation on a single server, see page 16 of the “Initial Installation –...
  • Page 20 Mediant 1000 Reader’s Notes Module Replacement Procedure Document #: LTRT-12601...

  • Page 21: Maintenance

    The device's front-panel chassis provides slots (numbered as shown in the figure below) for housing the main input/output (I/O) interface modules (i.e., TRUNKS, BRI, FXS and FXO). Figure 4-1: Mediant 1000 Front Layout The guidelines for slot assignment for these modules include the following: The TRUNKS, BRI, FXS, and FXO modules must be housed in consecutive slots.

  • Page 22: Replacing Modules

    Mediant 1000 Replacing Modules The device's I/O modules are hot-swappable (except for the OSN Server modules). The physical replacement of the TRUNKS, FXS, and FXO modules is performed together with a software replacement procedure performed in the device's Web interface. Once you have 'software-removed' the module, you can then physically remove the module and replace it with a new module.

  • Page 23: Figure 4-6: Module Orientation In Chassis Top- And Bottom-Row Slots

    Module Replacement Procedure 4. Maintenance Using a flathead screwdriver, loosen the module's two mounting screws. Gently extract the module from the slot. Physically insert the new module into the same slot from where the module that you are replacing resided, by performing the following: Insert the module into the empty slot, with the orientation of the module as follows: ♦...

  • Page 24: Inserting Modules Into Previously Empty Slots

    Mediant 1000 Inserting Modules into Previously Empty Slots The procedure below describes how to add additional I/O modules to previously empty slots in the device's chassis. Physically insert a module into a previously empty slot (refer to ‘Insert a Module into a Previously Empty Slot’...

  • Page 25: Configuring The Trunk Group Table

    Module Replacement Procedure 4. Maintenance 4.3.2 Configuring the Trunk Group Table The 'Trunk Group Table' page provides you with a table for enabling device channels, by assigning them telephone numbers, Trunk Groups, and Profiles. Trunk Groups are used for routing IP-to-Tel calls with common rules. Channels that are not defined in this table are disabled.

  • Page 26: Table 4-1: Trunk Group Table Description

    Mediant 1000 Table 4-1: Trunk Group Table Description Parameter Description Module The module type (FXS, FXO, BRI, or PRI) for which you want [TrunkGroup_Module] to define the Trunk Group. From Trunk Starting physical Trunk number. The number of listed Trunks depends on the device's hardware configuration.

  • Page 27: Configuring The Trunk Settings

    Module Replacement Procedure 4. Maintenance 4.3.3 Configuring the Trunk Settings This section is only relevant if the newly added modules are digital (i.e., TRUNKS or BRI modules). The 'Trunk Settings' page allows you to configure the device's trunks To configure the Trunks: Open the ‘Trunk Settings’...

  • Page 28: Figure 4-10: Trunk Scroll Bar

    Mediant 1000 On the top of the page, a bar with Trunk number icons displays the status of each trunk, according to the following color codes: • Grey: Disabled • Green: Active • Yellow: RAI alarm • Red: LOS / LOF alarm •...

  • Page 29: Table 4-2: Trunk (E1/T1/J1/Bri) Configuration Parameters

    Module Replacement Procedure 4. Maintenance Click the Apply Trunk Settings button to apply the changes to the selected trunk (or click Apply to All Trunks to apply the changes to all trunks); the Stop Trunk button replaces Apply Trunk Settings and the ‘Trunk Configuration State’ displays 'Active'. To save the changes to flash memory, press the ‘Burn’...
  • Page 30 Mediant 1000 ini File Field Name Valid Range and Description Web Parameter Name [41] E1 CAS R15 [50] BRI EURO ISDN [51] BRI NI2 ISDN [52] BRI DMS100 ISDN [53] BRI 5ESS 10 ISDN [54] BRI QSIG [56] BRI NTT = BRI ISDN Japan (Nippon Telegraph)
  • Page 31 Module Replacement Procedure 4. Maintenance ini File Field Name Valid Range and Description Web Parameter Name Framing Method Determines the physical framing method for the trunk. [FramingMethod] [0] = default according to protocol type E1 or T1. E1 default is E1 CRC4 MultiFrame Format extended G.706B (as c);...
  • Page 32 Mediant 1000 ini File Field Name Valid Range and Description Web Parameter Name NFAS Interface ID Defines a different Interface ID for each T1 trunk. [ISDNNFASInterfaceID_x] The valid range is 0 to 100. The default interface ID equals to the trunk's ID.

  • Page 33: Audiocodes Ini File

    Module Replacement Procedure 5. AudioCodes ini File AudioCodes ini File The following ini file that includes the template ini file settings can be loaded to the AudioCodes gateway. ;************** ;** Ini File ** ;************** ;Board: Mediant 1000 ;Serial Number: 1334958 ;Slot Number: 1...
  • Page 34 Mediant 1000 [ATM Params] [Analog Params] FXSLoopCharacteristicsFilename = 'M1K13-1-fxs16khz.dat' FXOLoopCharacteristicsFilename = 'M1K12-1-16khz-fxo.dat' [ControlProtocols Params] AdminStateLockControl = -1 [MGCP Params] [MEGACO Params] DIGITMAPPING = '' EP_Num_0 = 0 EP_Num_1 = 1 EP_Num_2 = 0 EP_Num_3 = 0 EP_Num_4 = 0 [PSTN Params]...
  • Page 35 Module Replacement Procedure 5. AudioCodes ini File AUTHENTICATIONMODE = 0 CHANNELSELECTMODE = 1 ENABLEEARLYMEDIA = 0 REGISTRARIP = '' SIPGATEWAYNAME = '10.15.7.15' ISFAXUSED = 1 SIPTRANSPORTTYPE = 0 [SCTP Params] [VXML Params] [IPsec Params] [Audio Staging Params] ; *** TABLE DspTemplates *** ;...
  • Page 36 Mediant 1000 [ TrunkGroup ] FORMAT TrunkGroup_Index TrunkGroup_TrunkGroupNum, TrunkGroup_FirstTrunkId, TrunkGroup_FirstBChannel, TrunkGroup_LastBChannel, TrunkGroup_FirstPhoneNumber, TrunkGroup_ProfileId, TrunkGroup_LastTrunkId, TrunkGroup_Module; TrunkGroup 0 = 0, 255, 1, 1, 500, 0, 255, 1; TrunkGroup 1 = 0, 255, 2, 2, 501, 0, 255, 1; [ \TrunkGroup ] ;...
  • Page 37 Module Replacement Procedure 5. AudioCodes ini File [ ProxySet ] FORMAT ProxySet_Index = ProxySet_EnableProxyKeepAlive, ProxySet_ProxyKeepAliveTime, ProxySet_ProxyLoadBalancingMethod, ProxySet_IsProxyHotSwap; ProxySet 0 = 0, 60, 0, 0; [ \ProxySet ] Version 5.4 October 2009...
  • Page 38 Mediant 1000 Reader’s Notes Module Replacement Procedure Document #: LTRT-12601...

  • Page 39: Installing Nortel Scs On Audiocodes Mediant 1000 Osn

    To install Nortel SCS on the AudioCodes Mediant 1000 OSN: Insert the OSN CPU module in the first slot. Insert the OSN Hard Disk in the second Mediant 1000 slot (i.e., one slot after the CPU module). Figure 6-1: Mediant 1000 with Components Connect the device’s RS-232 port to your PC using the HyperTerminal...

  • Page 40: Figure 6-2: Connection Module

    Connect the external CD-ROM to the USB connection. Insert the SCS installation in the CD-ROM. Connect the network cable to the Ethernet Port 1. (I) Connect the Mediant 1000 to the electric power. The OSN BIOS will appear on the console. Module Replacement Procedure...

  • Page 41: Figure 6-3: Osn Bios

    Module Replacement Procedure 6. Installing Nortel SCS on AudioCodes Mediant 1000 OSN Figure 6-3: OSN BIOS Ensure that the following line appears:     An empty screen with a blinking cursor will appear on the console. Figure 6-4: Screen with Blinking Cursor...

  • Page 42: Figure 6-5: Welcome Screen

    Mediant 1000 On the Welcome screen, click OK. Figure 6-5: Welcome Screen The installation continues and the device will automatically reboot. Module Replacement Procedure Document #: LTRT-12601...

  • Page 43: Restoring Factory Default Settings

    Module Replacement Procedure 7. Restoring Factory Default Settings Restoring Factory Default Settings You can use the device's hardware Reset button to restore all the device's configuration settings to factory defaults (e.g., IP address and login user name and password). These default settings include factory as well as user-defined (refer to the device's User's Manual) defaults.

  • Page 44: Mediant
