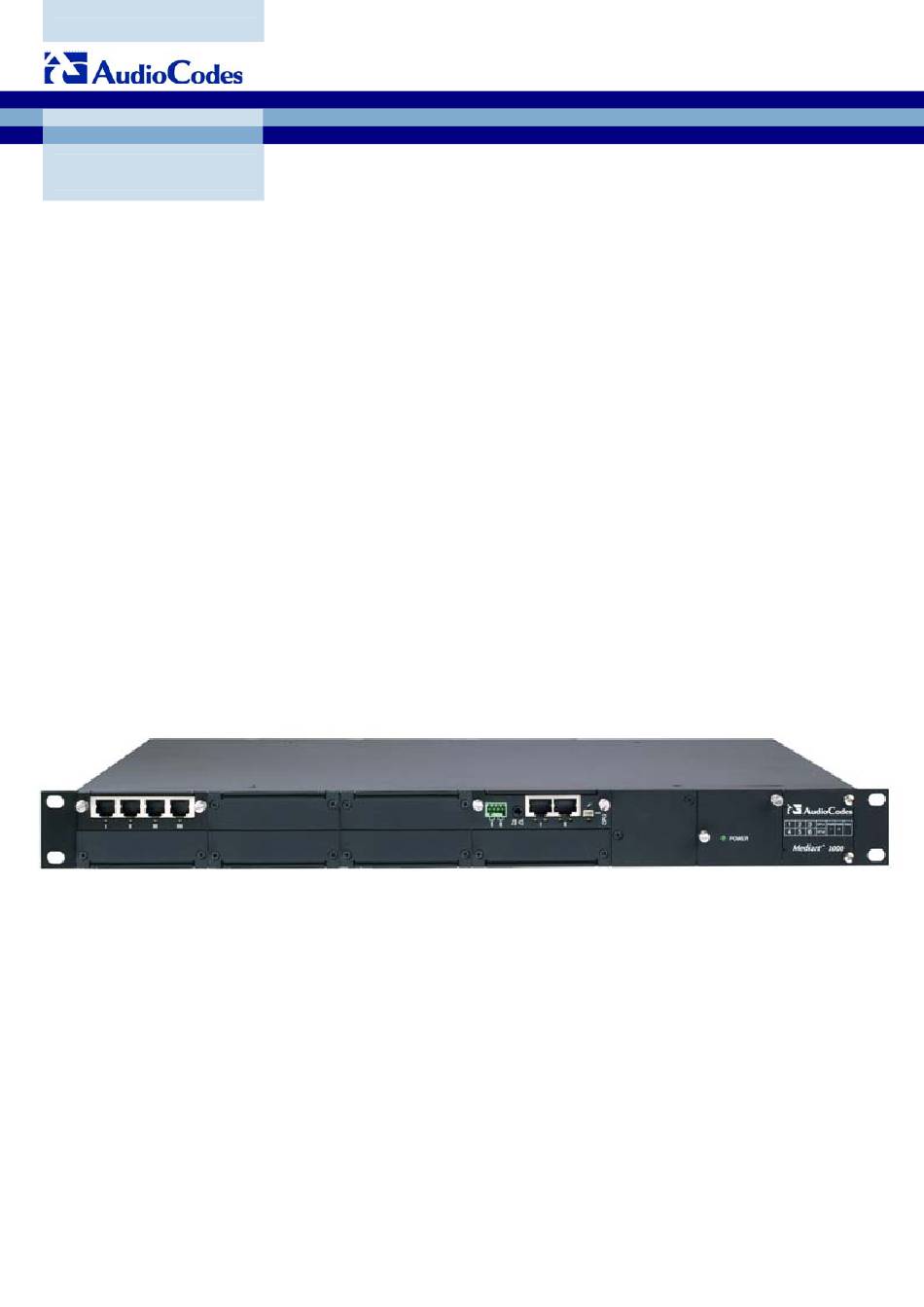

™ Mediant Digital Media Gateways
Mediant 1000 MGCP, MEGACO, SIP & H.323
Fast Track Guide 4.8
Document #: LTRT-63802
February 2006
