AAT max-e Operator's Manual
  1. Manuals
  2. Brands
  3. AAT Manuals
  4. Wheelchair
  5. max-e
  6. Operator's manual

AAT max-e Operator's Manual

Power kit for wheelchair
Hide thumbs Also See for max-e:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
AAT Alber Antriebstechnik GmbH
Postfach 10 05 60 · D-72426 Albstadt
Tel. +49.74 31.12 95-0 · Fax +49.74 31.12 95-35
www.aat-online.de · info@aat-online.de
Manual Handling Solutions 58, Paige Close, Watlington, Kings Lynn, Norfolk PE33 0TQ UK
Tel 0044 1553 811977 Fax 0044 1553 811004 sales@manualhandlingsolutions.co.uk www.manualhandlingsolutions.com

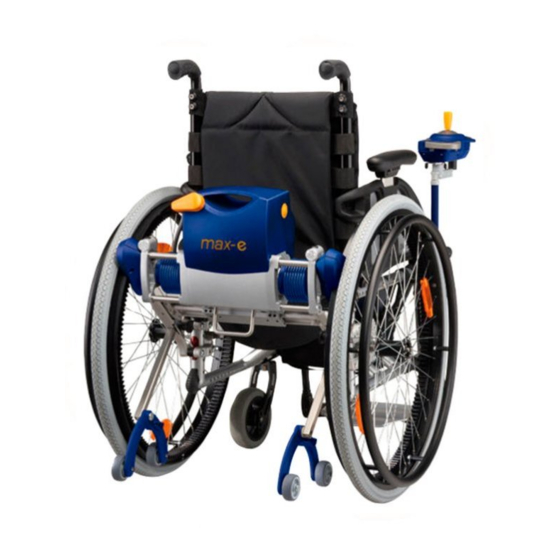

The power kit for your wheelchair
Operator´s manual
max-e

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the max-e and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AAT max-e

Summary of Contents for AAT max-e

  • Page 1 The power kit for your wheelchair Operator´s manual AAT Alber Antriebstechnik GmbH Postfach 10 05 60 · D-72426 Albstadt Tel. +49.74 31.12 95-0 · Fax +49.74 31.12 95-35 www.aat-online.de · info@aat-online.de Manual Handling Solutions 58, Paige Close, Watlington, Kings Lynn, Norfolk PE33 0TQ UK...

  • Page 2: Ce-Declaration Of Conformity

    CE-Declaration of conformity Notes: The company AAT Alber Antriebstechnik GmbH herewith declares that the products of the powered systems max-e are developed and produced in ac- cordance with the current regulations of the European Community 93/42/EWG. This declaration loses all validity if an alteration of any kind not approved by AAT Alber Antriebstechnik GmbH was made at any one of the herein descri- bed devices.

  • Page 3: Table Of Contents

    Battery pack ....Hook in the max-e ....

  • Page 4: Introduction

     = Battery pack plus bag The max-e is a low-maintenance device. To ensure the functioning and the safety of the max-e it must be checked every two years, even if there are no  = Anti-tilt support outer signs of damage on the device.
  • Page 5  = Exit of the power line and socket for the charging cable Ž = Battery pack  = Connection to the wheelchair  = Control unit ‘ = Entry of the power cable at the max-e 1.1.5 Display (main screen) Œ = Display of the battery pack ...

  • Page 6: Technical Data

    Limits concerning the attachment to wheelchairs possible at a seat width of 28 cm Pump is failing Pump is damaged Maximum total weight admitted 200 kg (person, wheelchair, max-e) * Valve is defective Valve is damaged continuously adjustable Pressure is not reached...

  • Page 7: Delivery Package

    The standard delivery package contains: Trouble shooting Œ = wheelchair wheels including grip ring and toothed ring (20" or 24") If you have problems operating your max-e, see whether you can remove  = battery pack them with the help of the following instructions.

  • Page 8: Mounting And Initial Operation

     left may look different from the ones on your wheelchair. Please make sure that the brackets are tightly secured on the chair befo- re each use. Do not use the max-e if the screws are loose. In such case contact your dealer immediately.

  • Page 9: Hook In The Max-E

    Charge the control unitwith the battery pack Hook in the max-e Carefully insert the max-e Œ into the bracket  on both sides. Generally the control unit's batteries are longer lasting than those in the bat- tery pack. Nevertheless, if the control unit's batteries run out during operati- on, you may charge them directly with the battery pack.
  • Page 10 Now put the plug Œ of the power cable into its socket  on the max-e. Battery pack / control unit Both the battery pack and the control unit of the max-e are maintenan- ce-free and rechargeable. Their durability directly depends on the number of charging/discharging cycles.

  • Page 11: Attach The Control Unit

    2.5.1 Starter protection Please make sure that the joystick of the max-e is in neutral position before you start driving. start using the joystick only after the major screen appears on the dis- play.
  • Page 12 Turn off the device Should there be a radio failure while you are driving, the display will show When you turn off the max-e the air in the pneumatic cylinder escapes by it- Radio failure! the picture "radio failure", and the max-e brakes automatically. In such case, self and the motor shafts run in.

  • Page 13: Adjust The Hand Rest

    2.5.6 Weather conditions Introduction We recommend not to leave the max-e in freezing weather conditions for a longer period of time to ensure that the device functions correctly. This screen briefly appears after turning on the control unit. AAT says Hello ! VERSION x.xx...

  • Page 14: Swivel Arm

    Control unit The swivel arm is an optional accessory, which makes it possible to swivel Your max-e is ready to use when you receive it. If the mounting was done cor- your control unit into several different positions. rectly, you can turn on the device and start driving.

  • Page 15: Anti-Tilt Support

    To operate the device safely, it is indispensible to know the driving qualities If your wheelchair does not have a tilt support, which is standard with most of the max-e thoroughly. The comfort and safety of our clients are important wheelchair manufacturers, we can equip your wheelchair with the necessary to us;...

  • Page 16: Safety Regulations / Notification Of Potential Dangers

    All general rules for the safe operation of a wheelchair remain valid when the max-e mastered the EMV tests required by German jurisdiction successfully. max-e is used. To guarantee a safe operation of the max-e we must ask you to observe the Driving following directions closely.

Table of Contents
