CraftUnique CraftBot Plus Service Manual page 9

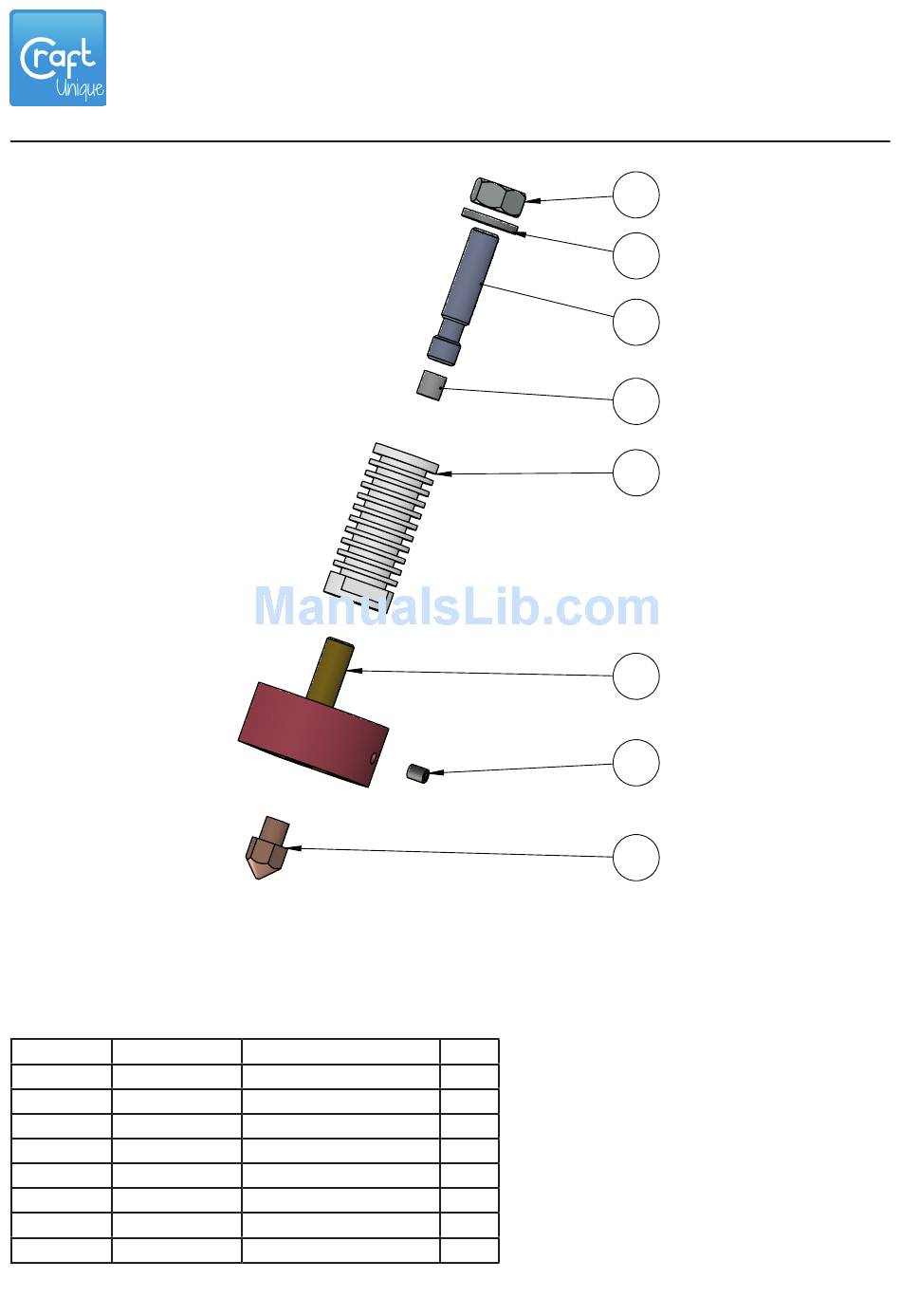

3.3 Exploded view - Hotend
ITEM NO. ORDER NUMBER
1 bm.000.016
2 ma.001.005
3 sc.002.004
4 ma.001.006
5 ma.001.008
6 ma.001.015
7 sc.001.003
8 sc.003.004
Service manual for CraftBot Plus and CraftBot 2 models
Page: 9 / 32
PART NAME
MK8 0.4mm Nozzle
Cuhead with silicone
Screw DIN913 M3L4
Hotend peek
PTFE washer
Peek holder
Washer DIN125 M6
Nut DIN934 M6
QTY.
1
1
1
1
1
1
1
1
Copyright Craftunique ltd. All rights reserved.
Version V1.0
8
7
6
5
4
2
3
1
