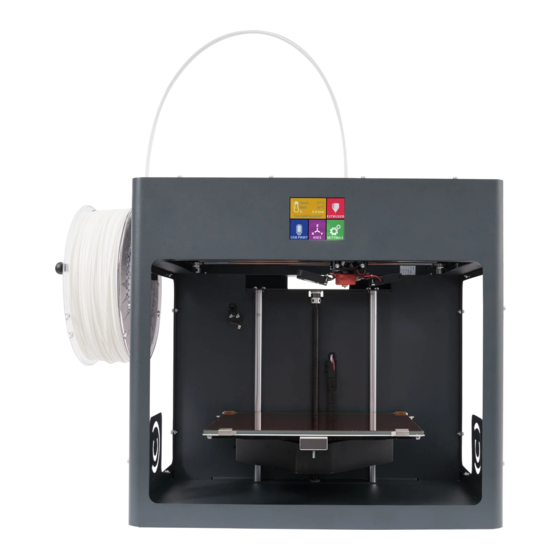

CraftUnique CraftBot PlusPro Quick Start Manual

Thank you for purchasing a CraftUnique product and welcome to the world of 3D crafting!
You are just a few steps away from having your first 3D object printed by your brand new
Craftbot Plus Pro.

UNPACKING

1. You've already found the Quick Start Guide. Excellent! Now remove the large sheet resting
under the foam. Under the sheet you will find your Craftbot Plus Pro attachable accessories
in a cardboard cradle resting in the cavity of the Craftbot Plus Pro 3D printer.
2. Remove this cradle from the box with care and place it in a safe out-of-the-way place.
3.
The printer is wrapped in a tight fitting plastic protective cover. Open up the covering.
Firmly grasp the frame of the Craftbot Plus Pro and lift it out of the box without touching
the fragile inner parts. Craftbot Plus Pro weights 14 kg (almost 31 lbs) – seek assistance if
needed!
4. Place the printer on a stable and level surface with sufficient space around.

CONTENTS OF THE BOX

It's time to unpack additional parts.
Below you can see the contents of the
box. First of all, check the list to make
sure nothing is missing!
1.
Filament guide tube holder
2. Filament guide tube
3. Filament spool holder
4.
Filament spool
5.
Hex wrenches (5x)
6. USB Flash storage
7. USB A-B cable and AC power cable
8.
Filament monitoring system (FMS)*
*FMS - The Filament monitoring system is optional, not included in the basic set.
QUICK START GUIDE
1 2
4 5
7 8
3
6
