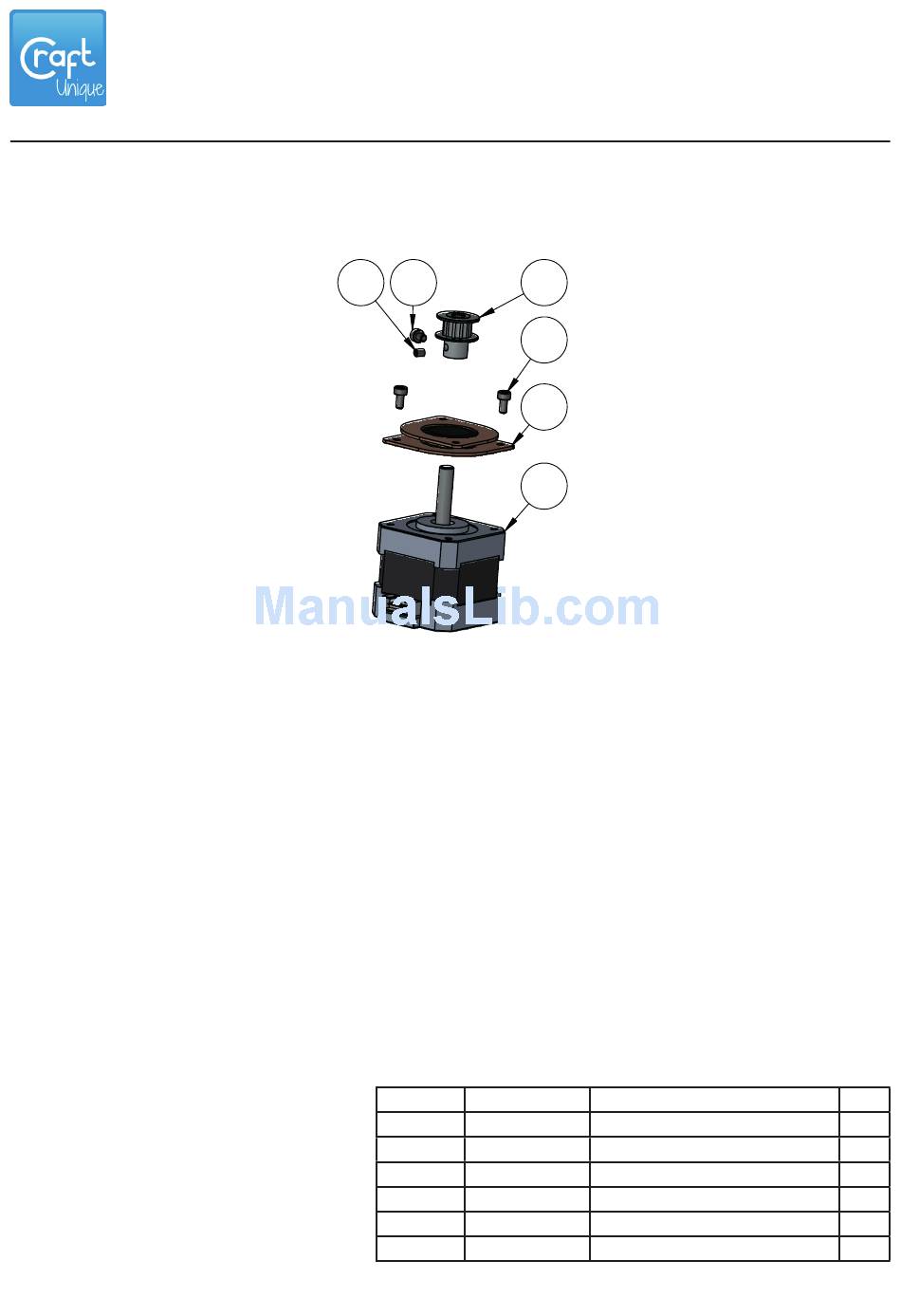

3.8 Exploded view - Motor with damper
Service manual for CraftBot Plus and CraftBot 2 models
Page: 14 / 32
5 6
ITEM NO. ORDER NUMBER
1 be.000.008
2 bm.000.023
3 sc.002.012
4 bm.000.024
5 sc.002.004
6 sc.002.011
Copyright Craftunique ltd. All rights reserved.
4
3
2
1
PART NAME
Stepper motor 17hs3001-26b 1
NEMA 17 vibration damper
Screw DIN912 M3L6
Pulley GT2 6mm 20 teeth
Screw DIN913 M3L4
Screw DIN912 M3L4
Version V1.0
QTY.
1
2
1
1
1
