CraftUnique CraftBot Plus Service Manual

Hide thumbs

Table Of Contents

Quick Links

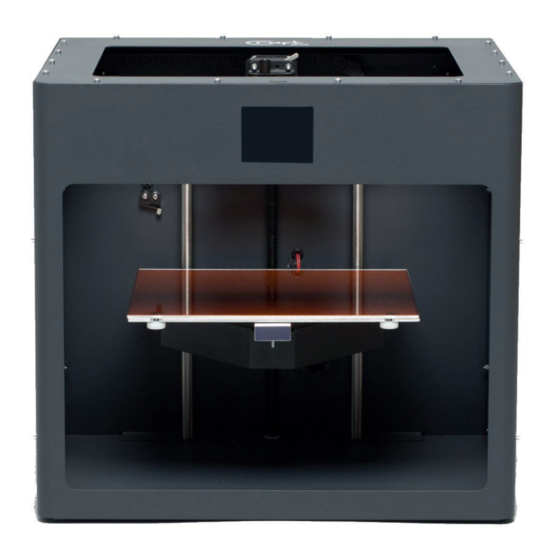

CraftBot Plus

Service manual for CraftBot Plus and CraftBot 2 models

Page: 1 / 32

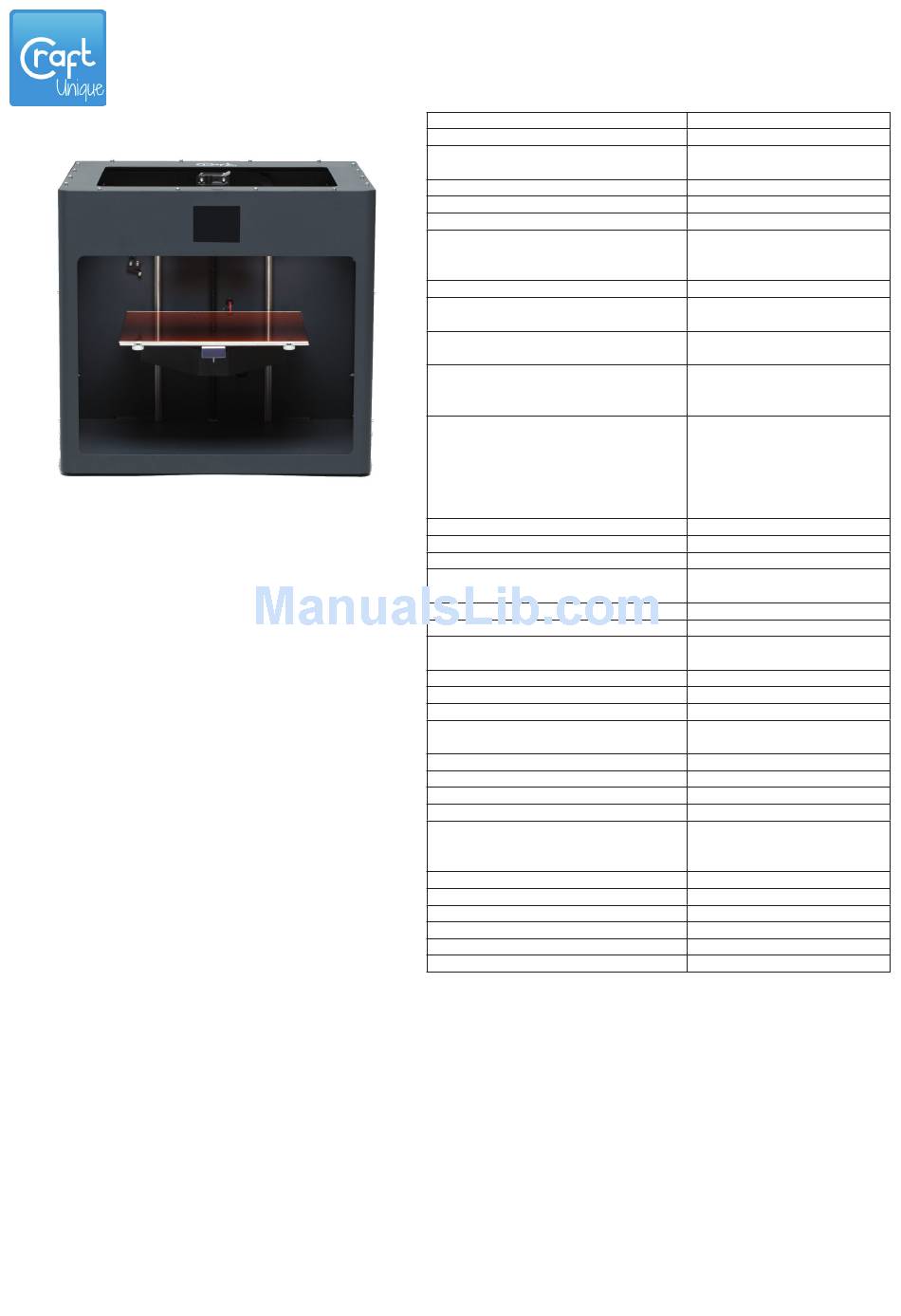

Specifications:

Voltage range:

Frequency range:

Power factor:

Efficiency: (Typ.)

Protection:

Power: (Typ.)

Display:

Connections:

WiFi:

Colors:

Interior lighting:

Printing:

Printing technology:

Build volume:

Layer resolution:

Position precision:

Filament diameter:

Physical Parameters:

Bearings:

Filament diameter:

Nozzle diameter:

Print speed:

Frame:

Frame dimensions:

Weight:

Shipping weight:

Hotend temperature:

Build plate temperature:

Enviromental characteristics: Lead-free soldered

Version V1.0

88-264VAC

124-370VDC

47-63Hz

PF>0.95/230VAC

87%

Overload

Overvoltage

Over temperature

150W

Active matrix color

display 320 x 240 pixel

USB-B for host

USB-A for data storage

CraftBot 2 only

IEEE 802.11b/g/n

compatibile

Grey

Blue

White

Red

Orange

Green

White 50x50 LED Strip

Fused Filament

Fabrication (FFF)

25x20x20cm

50 microns

X,Y: 4 microns

Z: 2 microns

1.75 mm

X,Y: LM8UU

Z: LM12UU

1.75 mm

0.4 mm

50-200 mm/s

All steel frame

X: 40 cm

Y: 36 cm

Z: 37 cm

14 kg

17 kg

180-260 °C

50-110 °C

Table of Contents

Need help?

Do you have a question about the CraftBot Plus and is the answer not in the manual?

Questions and answers

Summary of Contents for CraftUnique CraftBot Plus

Page 1 Y: 36 cm Z: 37 cm Weight: 14 kg Shipping weight: 17 kg Hotend temperature: 180-260 °C Build plate temperature: 50-110 °C Enviromental characteristics: Lead-free soldered Service manual for CraftBot Plus and CraftBot 2 models Copyright Craftunique ltd. All rights reserved.
Page 2: Table Of Contents
4. Spare parts overview Page 15 5. Service tools Page 19 6. Troubleshooting Page 20 Change history Status Version no. Date Comments Approved v1.0 04-04-2017 Initial release Service manual for CraftBot Plus and CraftBot 2 models Copyright Craftunique ltd. All rights reserved.
Page 3: Introduction
Page: 3 / 32 1. Introduction The purpose of this document is to aid service technicans in serviceing Craftunique products. This manual must be used only by authorized service partners. The content of this manual is confidental in its entirety.
Page 4: General Description
The Pr3Dator board is based on the high performance ARM Cortex M3 Atmel SAM3X processor, which operate at 84MHz. The operating firmware is written and maintained by CraftUnique. The Pr3Dator board runs the motor controllers, plus the heating and cooling.
Page 5 A and B. The GT2 belts are open ended. CraftBot Plus and CraftBot 2 models uses 8 mm rods for the LM8UU linear bearings. Special Steel or Aluminium metal parts are used where possible to assure the longevity of the machine.
Page 6: Exploded View
3. Exploded view - Overview ITEM NO. ORDER NUMBER PART NAME QTY. Frame top Frame back Frame assembly Extruder assembly 1 HMI assembly Bed assembly Pr3Dator PCB Service manual for CraftBot Plus and CraftBot 2 models Copyright Craftunique ltd. All rights reserved.
Page 7 Rod X sp.001.011 X-Cross cover sc.002.004 Screw DIN913 M3L4 bm.000.022 Linear bearing - LM8UU bm.001.004 Flanged bearing F624Z sc.002.006 Screw DIN913 M4L4 sc.002.010 Screw DIN912 M3L16 Service manual for CraftBot Plus and CraftBot 2 models Copyright Craftunique ltd. All rights reserved.
Page 8 FFC PCB v1.1 sp.000.004 FFC gripper sc.002.012 Screw DIN912 M3L6 ma.001.007 PTFE top holder ma.000.003 Belt holder sc.002.013 Screw DIN912 M3L8 bm.000.014 Extruder spring Service manual for CraftBot Plus and CraftBot 2 models Copyright Craftunique ltd. All rights reserved.
Page 9 Cuhead with silicone sc.002.004 Screw DIN913 M3L4 ma.001.006 Hotend peek ma.001.008 PTFE washer ma.001.015 Peek holder sc.001.003 Washer DIN125 M6 sc.003.004 Nut DIN934 M6 Service manual for CraftBot Plus and CraftBot 2 models Copyright Craftunique ltd. All rights reserved.
Page 10 Pulley GT2 6mm 20 teeth ma.001.011 Z holder ma.001.010 Z coupler ma.001.012 TR8x2 Z nut ma.001.013 Z screw CBP TR8x2 sc.002.011 Screw DIN912 M3L4 sc.002.004 Screw DIN913 M3L4 Service manual for CraftBot Plus and CraftBot 2 models Copyright Craftunique ltd. All rights reserved.
Page 11 Screw DIN7991 M3L6 pr.001.004 Base bed assembly pr.001.037 Build plate assembly bm.000.028 Spring washer bm.000.029 Bed Spring bm.000.026 Knurled nut white bm.000.027 Knurled nut black Service manual for CraftBot Plus and CraftBot 2 models Copyright Craftunique ltd. All rights reserved.
Page 12 HMI v2.0 with LCD bm.000.031 LCD spacer 15mm el.000.010 WiFi board v1.0 *only for CB2 1 be.000.004 HMI cover *only for CBP sc.002.012 Screw DIN912 M3L6 Service manual for CraftBot Plus and CraftBot 2 models Copyright Craftunique ltd. All rights reserved.
Page 13 Frame back green sp.001.016 Frame back grey sp.001.017 Frame back orange 1 sp.001.018 Frame back red sp.001.019 Frame back white be.000.015 Fan 80x80x10 sc.002.021 Fan screw 5L15 Service manual for CraftBot Plus and CraftBot 2 models Copyright Craftunique ltd. All rights reserved.
Page 14 Stepper motor 17hs3001-26b 1 bm.000.023 NEMA 17 vibration damper sc.002.012 Screw DIN912 M3L6 bm.000.024 Pulley GT2 6mm 20 teeth sc.002.004 Screw DIN913 M3L4 sc.002.011 Screw DIN912 M3L4 Service manual for CraftBot Plus and CraftBot 2 models Copyright Craftunique ltd. All rights reserved.
Page 15: Spare Parts Overview
Bed heater Connector ATX be.000.011 * Energy chain - 7.7 2nd end bm.000.011 Energy chain - 7.7 9pcs bm.000.012 Cable gasket, Rubber bm.000.020 * sm23_hot sticker holder sm.000.003 Service manual for CraftBot Plus and CraftBot 2 models Copyright Craftunique ltd. All rights reserved.
Page 16 Ext base FFC sm.001.004 ..sm24_ext_swing sm.001.035 ..Excenter handle sm.000.001 ..Washer metal 3.2x6x2 extruder ma.001.001 ..Washer PA 3.2x6x2 extruder by.001.003 Service manual for CraftBot Plus and CraftBot 2 models Copyright Craftunique ltd. All rights reserved.
Page 17 Screw - Allen key M3L6 - DIN912_M3L6 Nickel plated sc.002.012 Cable - Motor 12cm ca.000.003 * Cable - Motor 19cm ca.000.005 * Cable - Motor 32cm ca.000.006 * Service manual for CraftBot Plus and CraftBot 2 models Copyright Craftunique ltd. All rights reserved.
Page 18 Screw - Allen key M3L8 - DIN912_M3L8 Nickel plated sc.002.013 Screw - Set screw M3L4 - DIN913_M3L4 flat sc.002.004 Please note: only the items marked with asterisk can be ordered. Service manual for CraftBot Plus and CraftBot 2 models Copyright Craftunique ltd. All rights reserved.
Page 19: Service Tools
Wire cutter Phillips screwdriver, size: PH1 Combination wrench 5.5mm, 7mm, 8mm, 10mm USB-B cable Test temp resistor Test LED strip Current meter Fan test cable Service manual for CraftBot Plus and CraftBot 2 models Copyright Craftunique ltd. All rights reserved.
Page 20 The main troubleshooting tree as seen below, outlines the different troubleshooting pathways to be followed should a fault situation arise. Service manual for CraftBot Plus and CraftBot 2 models Copyright Craftunique ltd. All rights reserved.
Page 30 Check the distance between the filament bearing and the drive gear. Adjust the gap with the ext_top part, if neccessary. Hotend damaged. Replace the hotend. Service manual for CraftBot Plus and CraftBot 2 models Copyright Craftunique ltd. All rights reserved.
Page 31 Shifted layers. Loose pulleys. Tighten the pulley screws. Loose timing belts. Adjust the belt tension. Overheating motor drivers. Check the case fan, replace if faulty. Service manual for CraftBot Plus and CraftBot 2 models Copyright Craftunique ltd. All rights reserved.
Page 32 28 Bem street, Budapest 1047, Hungary Email: info@craftunique.com Email: support@craftunique.com Tel: +36-1-700-8060 Craftunique llc. 1414 S Sangre Rd, Stillwater, OK 74075 Email: adam.coleman@craftunique.com Tel: +1-817-733-5187 Service manual for CraftBot Plus and CraftBot 2 models Copyright Craftunique ltd. All rights reserved.
