CraftUnique CraftBot Plus Service Manual page 13

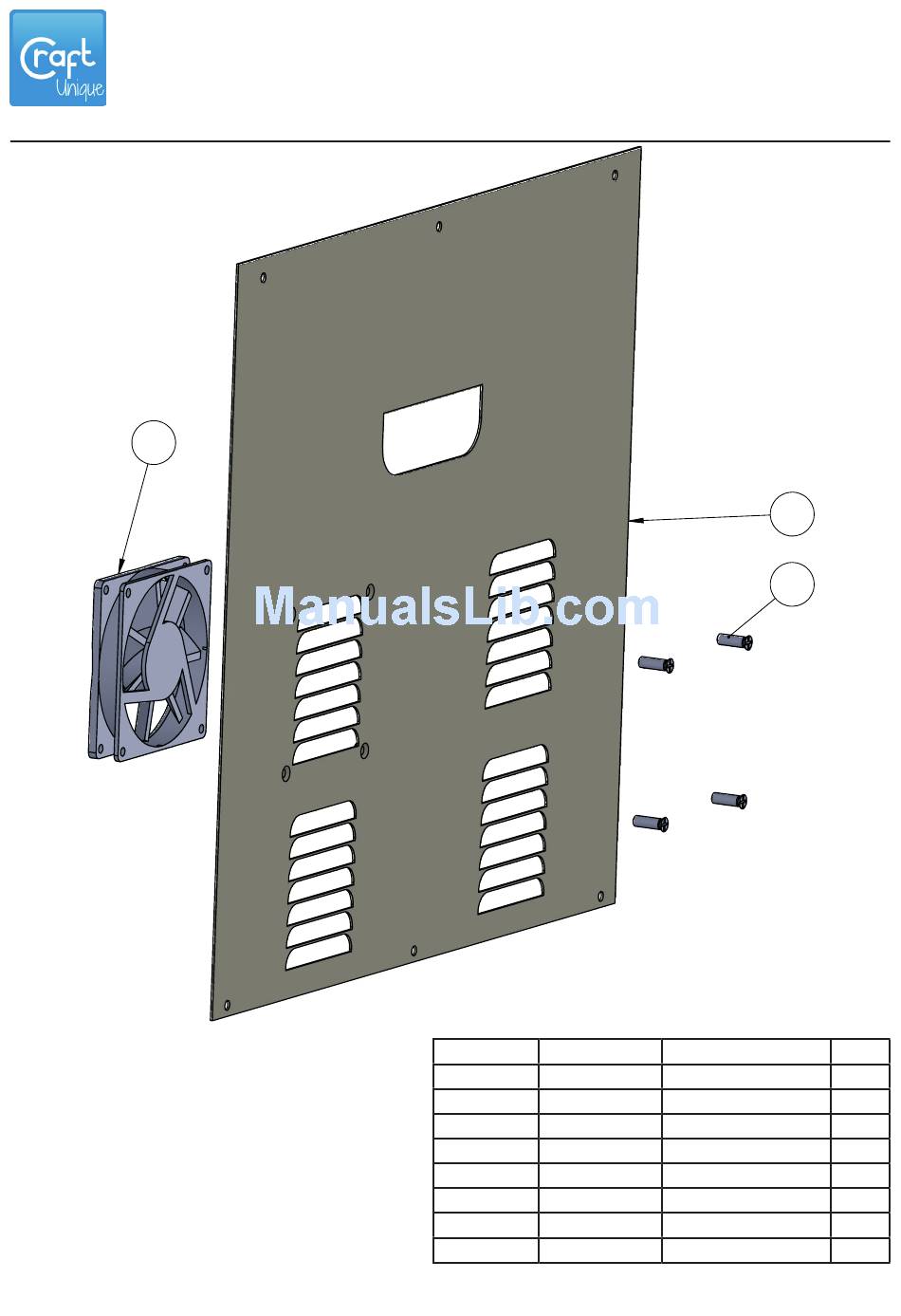

3.7 Exploded view - Back assembly
2
Service manual for CraftBot Plus and CraftBot 2 models
Page: 13 / 32
ITEM NO.
1
1
1
1
1
1
2
3
Copyright Craftunique ltd. All rights reserved.
ORDER NUMBER PART NAME
sp.001.014 Frame back blue
sp.001.015 Frame back green
sp.001.016 Frame back grey
sp.001.017 Frame back orange 1
sp.001.018 Frame back red
sp.001.019 Frame back white
be.000.015 Fan 80x80x10
sc.002.021 Fan screw 5L15
Version V1.0
1
3
QTY.
1
1
1
1
1
1
4
