Newland NLS-EM3095 User Manual

Oem scan engine
Hide thumbs Also See for NLS-EM3095:
Table of Contents

Advertisement

Quick Links

Download this manual

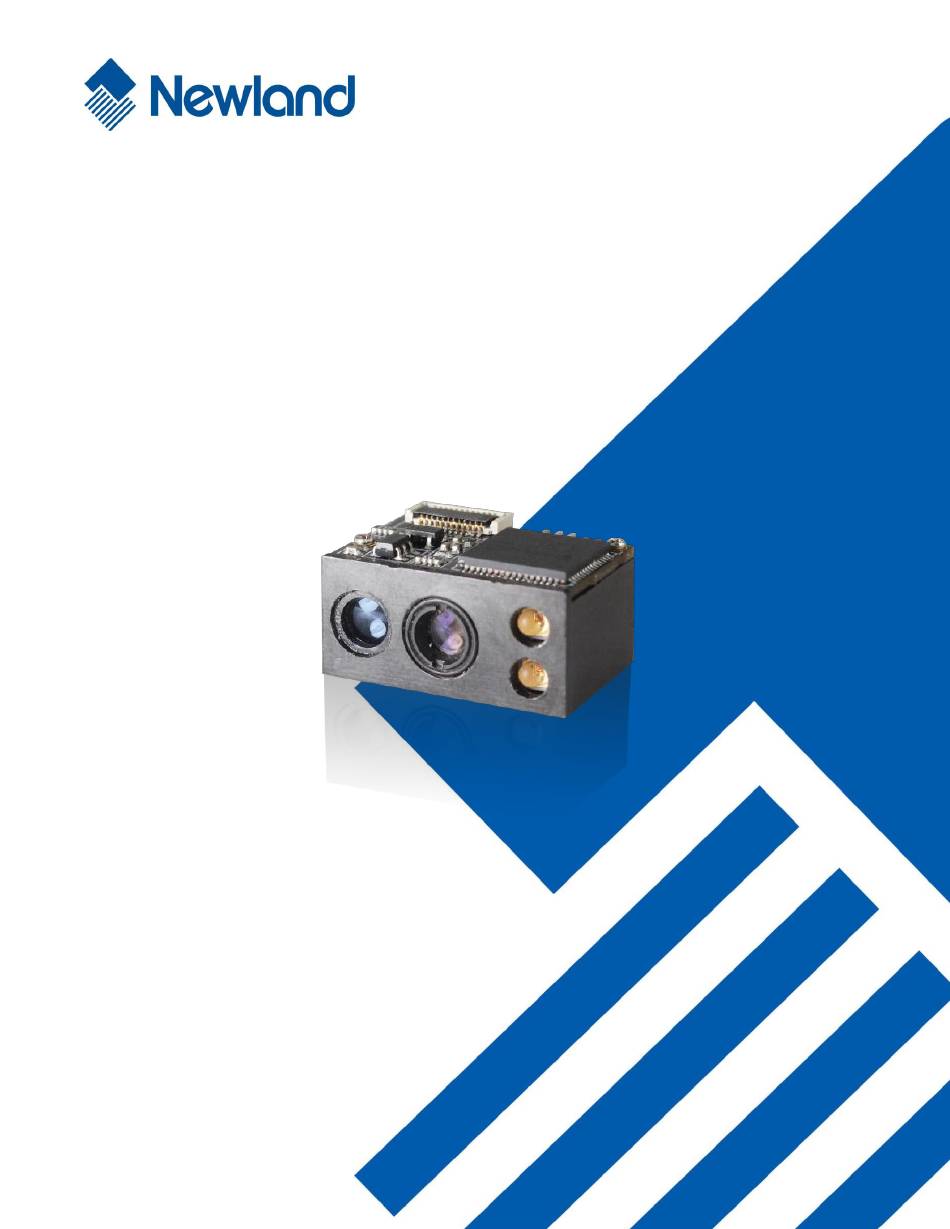

NLS-EM3095
OEM Scan Engine
User Guide

Advertisement

Table of Contents
loading

Related Manuals for Newland NLS-EM3095

Summary of Contents for Newland NLS-EM3095

  • Page 1 NLS-EM3095 OEM Scan Engine User Guide...
  • Page 2 All pictures in this manual are for reference only and actual product may differ. Regarding to the product modification and update, Fujian Newland Auto-ID Tech. Co., Ltd. reserves the right to make changes to any software or hardware to improve reliability, function, or design at any time without notice.

  • Page 3: Revision History

    Revision History Version Description Date V1.0.0 Initial release. November 20, 2013...

  • Page 4: Table Of Contents

    Table Of Contents Revision History ............................... -3- Chapter 1 Getting Started ..........................1 Introduction .............................. 1 About This Guide ............................. 2 Connecting EVK and PC ......................... 2 Barcode Scanning ........................... 2 Configuring the EM3095 .......................... 2 Barcode Programming ........................2 Command Programming ........................
  • Page 5 USB COM Port Emulation ......................41 HID-POS ............................41 Access the Scanner with Your Program ................. 42 Acquire Scanned Data ......................42 VID/PID ............................ 42 Chapter 3 Scan Mode ............................43 Manual Mode ............................43 Continuous Mode........................... 44 Decode Session Timeout ....................... 44 Timeout between Decodes ......................
  • Page 6 Enable/Disable All Symbologies ..................... 58 Enable/Disable 1D Symbologies ....................58 Enable/Disable 2D Symbologies ....................58 Video Reverse ..........................59 1D Symbologies ............................. 60 Code 128 ............................60 Restore Factory Defaults......................60 Enable/Disable Code 128......................60 UCC/EAN-128 (GS1-128) ......................61 Restore Factory Defaults......................61 Enable/Disable UCC/EAN-128 ....................
  • Page 7 Transmit Check Digit ....................... 71 Add-On Code ........................... 72 Add-On Code Required ......................73 Transmit System Character ....................73 UPC-E Extension ........................73 UPC-A ............................. 74 Restore Factory Defaults......................74 Enable/Disable UPC-A ......................74 Transmit Check Digit ....................... 74 Add-On Code ........................... 75 Add-On Code Required ......................
  • Page 8 Codabar ............................90 Restore Factory Defaults......................90 Enable/Disable Codabar ......................90 Check Digit Verification ......................91 Transmit Start/Stop Character ....................91 Start/Stop Character Format ....................92 Code 93 ............................93 Restore Factory Defaults......................93 Enable/Disable Code 93......................93 Check Digit Verification ......................94 Code 11 ............................
  • Page 9 Data Matrix............................ 105 Restore Factory Defaults....................... 105 Enable/Disable Data Matrix ....................105 Rectangular Barcodes ......................105 Mirror Images ........................106 QR Code ............................107 Restore Factory Defaults....................... 107 Enable/Disable QR Code ...................... 107 Micro QR ..........................107 Mirrored Micro QR ......................... 108 Appendix .................................

  • Page 11: Chapter 1 Getting Started

    Chapter 1 Getting Started Introduction The NLS-EM3095 OEM scan engine, armed with the Newland patented , a computerized image recognition system, brings about a new era of 2D barcode scan engines. The EM3095 ingeniously blends 2D barcode decoder chip technology and advanced chip design &...

  • Page 12: About This Guide

    EVK to PC. A driver is required if EVK wants to communicate with EM3095 and receive decoded data through USB COM port. Barcode Scanning Powered by area-imaging technology and Newland patented technology, the EM3095 features fast scanning and accurate decoding. Barcodes rotated at any angle can still be read with ease. When scanning a barcode, simply center the aiming pattern projected by the EM3095 over the barcode.

  • Page 13: Command Programming

    Command Programming Besides the barcode programming method, the EM3095 can also be configured by serial commands sent from the host device. Note that communication parameters on the engine and the host must match so that two devices can communicate with each other. The default settings of the engine are 9600bps, no parity check, 8 data bits, 1 stop bit, and no flow control.
  • Page 14 unsigned int crc_cal_by_bit(unsigned char* ptr, unsigned int len) unsigned int crc = 0; while(len-- != 0) for(unsigned char i = 0x80; i != 0; i /= 2) crc *= 2; if((crc&0x10000) !=0) crc ^= 0x11021; if((*ptr&i) != 0) crc ^= 0x1021; ptr++;...
  • Page 15 Reply: {Prefix2} {Types} {Lens} {Datas} {FCS} 1) Success message: Prefix2 : 0x02 0x00 Types : 0x00 (success) Lens : The number of data returned. If Lens=0x00, that means values of 256 contiguous registers are returned. Datas : 0x00~0xFF, data that are returned. : CRC-CCITT checksum.
  • Page 16 Example: Read the content (0x3E) of register 0x000A 1) Read operation succeeds: Command sent: 0x7E 0x00 0x07 0x01 0x00 0x0A 0x01 0xEE 0x8A Message received: 0x02 0x00 0x00 0x01 0x3E 0xE4 0xAC 2) CRC check fails: Command sent: 0x7E 0x00 0x07 0x01 0x00 0x0A 0x01 0x11 0x22...

  • Page 17: Write Register

    Write Register The write command is used to write contiguous registers (1 to 256 registers) in the engine. Syntax: {Prefix1} {Types} {Lens} {Address} {Datas} {FCS} Prefix1 : 0x7E 0x00 (2 bytes) Types : 0x08 (1 byte) Lens : 0x00~0xFF (1 byte), byte count, i.e. number of registers written. When Lens=0x00, 256 contiguous registers are to be written.
  • Page 18 unsigned int crc_cal_by_bit(unsigned char* ptr, unsigned int len) unsigned int crc = 0; while(len-- != 0) for(unsigned char i = 0x80; i != 0; i /= 2) crc *= 2; if((crc&0x10000) !=0) crc ^= 0x11021; if((*ptr&i) != 0) crc ^= 0x1021; ptr++;...
  • Page 19 Reply: {Prefix2} {Types} {Lens} {Datas} {FCS} 1) Success message: Prefix2 : 0x02 0x00 Types : 0x00 (success) Lens : 0x01 Datas : 0x00 : CRC-CCITT checksum (0x33 0x31) 2) CRC check failure message: Prefix2 : 0x02 0x00 Types : 0x01 (CRC check failure) Lens : 0x01 Datas : 0x00...
  • Page 20 Example: Write 0x3E into register 0x000A 1) Write operation succeeds: Command sent: 0x7E 0x00 0x08 0x01 0x00 0x0A 0x3E 0x4C 0xCF Message received: 0x02 0x00 0x00 0x01 0x00 0x33 0x31 2) CRC check fails: Command sent: 0x7E 0x00 0x08 0x01 0x00 0x0A 0x3E 0x11 0x22...

  • Page 21: Save Register Data In Eeprom

    Save Register Data in EEPROM The save command is used to save register data into an external EEPROM. Syntax: {Prefix1} {Types} {Lens} {Address} {Datas} {FCS} Prefix1 : 0x7E 0x00 Types : 0x09 Lens : 0x01 Address: 0x0000 Datas : 0x00 : CRC-CCITT checksum (0xDE 0xC8) Reply: {Prefix2} {Types} {Lens} {Datas} {FCS} 1) Success message:...
  • Page 22 3) Invalid command message: Prefix2 : 0x02 0x00 Types : 0x03 (invalid command) Lens : 0x01 Datas : 0x00 : CRC-CCITT checksum (0x6A 0x61)

  • Page 23: Relationship Between Programming Command And Serial Command

    Relationship between Programming Command and Serial Command 1. Program general parameter with serial command A programming command (i.e. the characters under programming barcode) contains 7 characters. The function of each character is described in the table below. 1st Char 2nd Char ~3rd Char 4th Char~5th Char 6th Char~7th Char Remark BITPOSITION ADDR...
  • Page 24 reply received : 0x02 0x00 0x00 0x01 0xD4 0xB8 0xC8 Step 2: Calculate the value written to the register. Datas = (0xD4 & (! 0x03)) + 0x02 = 0xD6 Step 3: Write the value into the register. serial command sent : 0x7E 0x00 0x08 0x01 0x00 0x00 0xD6 0xDF 0x22...

  • Page 25: Registers

    Registers Register 0x0000 Feature Bit 7 1: Good read LED on 0: Good read LED off Bit 6 1: Disable the mute mode 0: Enable the mute mode Aiming: Bit 5-4 00: OFF 01: Normal 10/11: Always ON Illumination: Bit 3-2 00: OFF 01: Normal 10/11: Always ON...
  • Page 26 Register 0x0009 Feature Good Read Beep Frequency Bit 7-0 0xDA: Low 0x4B: Medium 0x25: High 0x000A Register Feature Good Read Beep Duration Bit 7-0 0x1F: 40ms 0x3E: 80ms 0x5D: 120ms 0x000C Register Feature Bit 7-4 Reserved Bit 3 1: Enable Data Matrix 0: Disable Data Matrix Bit 2 1: Enable 1D symbologies...
  • Page 27 Register 0x0010 Feature Bit 7-5 Reserved 00: Disable AIM ID prefix for 1D symbologies Bit 4-3 01: Allow to enable/disable AIM ID prefix for individual 1D symbology 10/11: Enable AIM ID prefix for 1D symbologies Bit 2-0 Reserved 0x0011 Register Feature 1: Enable AIM ID prefix for ISSN 0: Disable AIM ID prefix for ISSN...
  • Page 28 Register 0x0013 Feature Bit 7 Reserved Bit 6 1: Enable EAN-8 zero extend 0: Disable EAN-8 zero extend Bit 5 1: Enable EAN-8 5-digit add-on code 0: Disable EAN-8 5-digit add-on code Bit 4 1: Enable EAN-8 2-digit add-on code 0: Disable EAN-8 2-digit add-on code Bit 3 1: EAN-8 add-on code required...
  • Page 29 0x0016 Register Feature 1: Transmit AIM 128 check digit in the format of “~nnn” (nnn: ASCII decimal value of check digit) Bit 7 0: Do not transmit AIM 128 check digit 1: FNC1 character in AIM 128 transmitted as “~” (ASCII value: 126) Bit 6 0: FNC1 character in AIM 128 transmitted as GS (ASCII value: 29) 1: Enable AIM ID prefix for AIM 128...
  • Page 30 Register 0x0018 Feature Bit 7 1: Transmit ITF-14 check digit 0: Do not transmit ITF-14 check digit 1: Enable AIM ID prefix for ITF-14 0: Disable AIM ID prefix for ITF-14 Bit 6 Note: Bit4 and Bit3 of register 0x0010 must be set to “01” in order for this parameter to function. Bit 5 1: Enable ITF-14 0: Disable ITF-14...
  • Page 31 Register 0x001A Feature 1: Transmit Standard 2 of 5 check digit 0: Do not transmit Standard 2 of 5 check digit Bit 7 Note: Standard 2 of 5 check digit must be enabled for this parameter to function. Bit 6 1: Enable Standard 2 of 5 check digit 0: Disable Standard 2 of 5 check digit 1: Enable AIM ID prefix for Standard 2 of 5...
  • Page 32 Register 0x001C Feature Bit 7-6 Reserved Bit 5 1: Enable Code 39 Full ASCII 0: Disable Code 39 Full ASCII 1: Transmit Code 39 check digit 0: Do not transmit Code 39 check digit Bit 4 Note: Code 39 check digit must be enabled for this parameter to function. Bit 3 1: Enable Code 39 check digit 0: Disable Code 39 check digit...
  • Page 33 Register 0x001E Feature Bit 7-6 Reserved 1: Transmit Codabar check digit 0: Do not transmit Codabar check digit Bit 5 Note: Codabar check digit verification must be enabled for this parameter to function. Bit 4 1: Enable Codabar check digit 0: Disable Codabar check digit Codabar Start/Stop Character Format: Bit 3-2...
  • Page 34 Register 0x0020 Feature Bit 7-3 Reserved 1: Enable AIM ID prefix for MSI-Plessey 0: Disable AIM ID prefix for MSI-Plessey Bit 2 Note: Bit4 and Bit3 of register 0x0010 must be set to “01” in order for this parameter to function. 1: Enable AIM ID prefix for Plessey 0: Disable AIM ID prefix for Plessey Bit 1...
  • Page 35 Register 0x004B Feature Bit 7-2 Reserved Bit 1-0 11: Decode rectangular Data Matrix 00: Do not decode rectangular Data Matrix Register 0x0060 Feature Bit 7 Reserved Terminating Character Suffix: Bit 6-5 00/11: CR (0x0D) 01: CRLF (0x0D,0x0A) 10: TAB (0x09) Bit 4 Reserved Bit 3...
  • Page 36 Register 0x006F Feature Inter-keystroke delay Bit 7-6 00: No delay 01: Short delay (5ms) 10: Medium delay (10ms) 11: Long delay (15ms) Convert case Bit 5-4 00: No case conversion 10: Convert All to Upper Case 11: Convert All to Lower Case Bit 3 Reserved Bit 2...

  • Page 37: Programming Barcode Data

    Programming Barcode Data Programming barcode data (e.g. WFFD980) can be transmitted to the Host. To enable this feature, scan the barcode below. After the feature is enabled, programming barcodes will be handled as non-programming barcodes and they cannot be used to configure the scan engine. The barcode data will be sent to the Host when a programming barcode is scanned and decoded.

  • Page 38: Chapter 2 Communication Interfaces

    Chapter 2 Communication Interfaces The EM3095 provides a TTL-232 interface and a USB interface to communicate with the host device. The host device can receive scanned data and send commands to control the engine or to access/alter the configuration information of the engine via the TTL-232 or USB interface. TTL-232 Interface Serial communication interface is usually used to connect the engine to a host device (like PC, POS).

  • Page 39: Baud Rate

    Baud Rate Baud rate is the number of bits of data transmitted per second. Set the baud rate to match the Host requirements. ** 9600 1200 19200 2400 38400 4800 57600 14400 115200...

  • Page 40: Usb Interface

    USB Interface When the EM3095 is connected to a host device through its USB interface, USB DATAPIPE is enabled by default. User can switch between options – USB DATAPIPE, USB HID-KBW, USB COM Port Emulation and HID-POS, upon actual need. USB DATAPIPE A driver is required when using this protocol to communicate with the engine.

  • Page 41: Standard Keyboard

    Standard Keyboard When the USB HID-KBW feature is enabled, the engine selects Standard Keyboard by default. Besides that, the other two options are provided: Emulate ALT+Keypad and Function Key Mapping. ** Standard Keyboard Emulate ALT+Keypad When Emulate ALT+Keypad is enabled, any ASCII character (0x00 - 0xFF) is sent over the numeric keypad no matter which keyboard type is selected.

  • Page 42: Function Key Mapping

    Function Key Mapping When Function Key Mapping is enabled, function character (0x00 - 0x1F) are sent as ASCII sequences over the numeric keypad. CTRL Make Press function key (Refer to the ASCII Function Key Mapping Table on the following page) CTRL Break Function Key Mapping...

  • Page 43: Ascii Function Key Mapping Table

    ASCII Function Key Mapping Table ASCII Value ASCII Value Function Key Function Key （HEX） （HEX）...

  • Page 44: Usb Country Keyboard Types

    USB Country Keyboard Types Keyboard layouts vary from country to country. All supported keyboard types are listed below. The default setting is US keyboard. ** 1 - U.S. 2 - Belgium 3 - Brazil 4 - Canada 5 - Czech 6 - Denmark 7 - Finland 8 - France...
  • Page 45 9 - Austria, Germany 10 - Greece 11 - Hungary 12 - Israel 13 - Italy 14 - Latin America 15 - Netherland 16 - Norway 17 - Poland 18 - Portugal...
  • Page 46 19 - Romania 20 - Russia 21 - Slovakia 22 - Spain 23 - Sweden 24 - Switzerland 25 - Turkey1 26 - Turkey 2 27 - UK 28 - Japan...

  • Page 47: Beep On Unknown Character

    Beep on Unknown Character Due to the differences in keyboard layouts, some characters contained in barcode data may be unavailable on the selected keyboard. As a result, the engine fails to transmit the unknown characters. Scan the appropriate barcode below to enable or disable the emission of beep when an unknown character is detected.

  • Page 48: Caps Lock

    Caps Lock The Caps Lock ON option can invert upper and lower case characters contained in barcode data. This inversion occurs regardless of the state of Caps Lock key on the Host’s keyboard. ** Caps Lock OFF Caps Lock ON Note: Emulate ALT+Keypad ON/ Convert All to Upper Case/ Convert All to Lower Case prevails over Caps Lock ON.

  • Page 49: Convert Case

    Convert Case Scan the appropriate barcode below to convert all bar code data to your desired case. ** No Case Conversion Convert All to Lower Case Convert All to Upper Case Example: When the Convert All to Lower Case feature is enabled, barcode data “AbC” is transmitted as “abc”.

  • Page 50: Emulate Numeric Keypad

    Emulate Numeric Keypad When this feature is disabled, sending barcode data is emulated as keystroke(s) on main keyboard. To enable this feature, scan the Emulate Numeric Keypad barcode. Sending a number (0-9) is emulated as keystroke on numeric keypad, whereas sending other character like “+”, “_”, “*” , “/” and “.” is still emulated as keystroke on main keyboard.

  • Page 51: Usb Com Port Emulation

    USB COM Port Emulation If you connect the engine to the Host via a USB connection, the USB COM Port Emulation feature allows the Host to receive data in the way as a serial port does. However, you need to set communication parameters on the engine to match the Host requirements.

  • Page 52: Access The Scanner With Your Program

    USB uses VID (Vendor ID) and PID (Product ID) to identify and locate a device. The VID is assigned by USB Implementers Forum. Newland’s vendor ID is 1EAB (Hex). A range of PIDs are used for each Newland product family. Every PID contains a base number and interface type (keyboard, COM port, etc.).

  • Page 53: Chapter 3 Scan Mode

    Chapter 3 Scan Mode Manual Mode Manual Mode (default): A trigger pull activates a decode session. The decode session continues until the barcode is decoded or the trigger is released. **Manual Mode...

  • Page 54: Continuous Mode

    Continuous Mode Continuous Mode: The engine automatically activates a decode session. The decode session continues until the barcode is decoded or the decode session timeout expires. When a decode session is completed, the engine waits until the timeout between decodes expires and then starts next session. The engine continues to work in this pattern if the following situation does not happen: no barcode is presented to the engine or passed in front of it in a decode session, the engine will automatically suspend barcode reading.

  • Page 55: Timeout Between Decodes

    Timeout between Decodes This parameter sets the timeout between decode sessions. When a decode session ends, next session will not happen until the timeout between decodes expires. It is programmable in 0.1s increments from 0.1s to 25.5s. The default timeout is 1.0s. To learn how to program this parameter, see Appendix E: Parameter Programming Examples.

  • Page 56: Sense Mode

    Sense Mode Sense Mode: The engine waits for the image stabilization timeout to expire before activating a decode session every time it detects a change in ambient illumination. Decode session continues until the barcode is decoded or the decode session timeout expires. After a decode session ends, the engine waits for the timeout between decodes to expire before beginning to monitor ambient illumination.

  • Page 57: Timeout Between Decodes

    Timeout between Decodes After a decode session ends, the engine waits for the timeout between decodes to expire before beginning to monitor ambient illumination. This parameter is programmable in 0.1s increments from 0.1s to 25.5s. The default timeout is 1.0s. To learn how to program this parameter, see Appendix E: Parameter Programming Examples.

  • Page 58: Sensitivity

    Sensitivity Sensitivity specifies the degree of acuteness of the engine’s response to changes in ambient illumination. The higher the sensitivity, the lower requirement in illumination change to trigger the engine. You can select an appropriate degree of sensitivity that fits the ambient environment. The default setting is Medium Sensitivity.

  • Page 59: Command Trigger Mode

    Command Trigger Mode Command Trigger Mode: Decode session is activated by a host command (i.e. set the bit0 of register 0x0002 to “1”). The decode session continues until the barcode is decoded or the decode session timeout expires. Command Trigger Mode Decode Session Timeout This parameter sets the maximum time decode session continues during a scan attempt.

  • Page 60: Chapter 4 Illumination & Aiming

    Chapter 4 Illumination & Aiming Illumination A couple of illumination options are provided to improve the lighting conditions during every image capture: Normal (default): Illumination LED is turned on during image capture. Always ON: Illumination LED keeps ON after the engine is powered on. OFF: Illumination LED is OFF all the time.

  • Page 61: Aiming

    Aiming When scanning/capturing image, the engine projects an aiming beam which allows positioning the target barcode within its field of view and thus makes decoding easier. Normal (default): The engine projects an aiming beam only during barcode scanning/capture. Always ON: Aiming beam is constantly ON after the engine is powered on. OFF: Aiming beam is OFF all the time.

  • Page 62: Chapter 5 Notification

    Chapter 5 Notification Mute Mode Scanning the Enable Mute Mode can turn off all notification beeps. By default, mute mode is disabled. Enable Mute Mode **Disable Mute Mode Good Read Beep ** Good Read Beep On Good Read Beep Off...

  • Page 63: Good Read Beep Frequency

    Good Read Beep Frequency ** Medium High Good Read Beep Duration 40ms **80ms 120ms...

  • Page 64: Good Read Led

    Good Read LED Good Read LED On Good Read LED Off Decode Result Notification When enabled, if a barcode does not decode, “F” is transmitted; if a barcode is decoded, “S” is appended to the barcode data as the most left character. Note: This feature is NOT available in USB DATAPIPE mode.

  • Page 65: Chapter 6 Prefix & Suffix

    Chapter 6 Prefix & Suffix In many applications, barcode data needs to be edited and distinguished from one another. Usually AIM ID and Code ID can be used as identifiers, but in some special cases terminating character suffix like Carriage Return or Line Feed can also be the alternative. The engine can be configured to transmit barcode data in the following format: [“F”/ “S”] + [Code ID] + [AIM ID] + [DATA] + [terminating character] Note: [DATA] must be transmitted while user can decide whether to transmit any of the rest parts.

  • Page 66: Code Id Prefix

    CODE ID Prefix Code ID can also be used to identify barcode type. For more information, refer to Appendix C: Code ID Table. Enable CODE ID Prefix ** Disable CODE ID Prefix You can choose to transmit original CODE ID or visible CODE ID by scanning the appropriate barcode below.

  • Page 67: Terminating Character Suffix

    Terminating Character Suffix A terminating character such as carriage return (CR) or carriage return/line feed pair (CRLF) or horizontal tab (TAB) can be used to mark the end of data. ** Disable Terminating Character Suffix Append CR Append CRLF Append TAB...

  • Page 68: Chapter 7 Symbologies

    Chapter 7 Symbologies Global Settings Enable/Disable All Symbologies If all symbologies are disabled, the engine can only identify programming barcodes. Enable All Symbologies Disable All Symbologies Enable/Disable 1D Symbologies Enable 1D Symbologies Disable 1D Symbologies Enable/Disable 2D Symbologies Enable 2D Symbologies Disable 2D Symbologies...

  • Page 69: Video Reverse

    Video Reverse The Video Reverse feature only applies to 2D barcodes. Regular barcode: Dark image on a bright background. Inverse barcode: Bright image on a dark background. The examples of regular barcode and inverse barcode are shown below. Regular Barcode Inverse Barcode Video Reverse is used to allow the engine to read barcodes that are inverted.

  • Page 70: 1D Symbologies

    1D Symbologies Code 128 Restore Factory Defaults Restore the Factory Defaults of Code 128 Enable/Disable Code 128 ** Enable Code 128 Disable Code 128...

  • Page 71: Ucc/Ean-128 (Gs1-128)

    UCC/EAN-128 (GS1-128) Restore Factory Defaults Restore the Factory Defaults of UCC/EAN-128 Enable/Disable UCC/EAN-128 ** Enable UCC/EAN-128 Disable UCC/EAN-128...

  • Page 72: Aim 128

    AIM 128 Restore Factory Defaults Restore the Factory Defaults of AIM 128 Enable/Disable AIM 128 ** Enable AIM 128 Disable AIM 128...

  • Page 73: Restore Factory Defaults

    EAN-8 Restore Factory Defaults Restore the Factory Defaults of EAN-8 Enable/Disable EAN-8 ** Enable EAN-8 Disable EAN-8 Transmit Check Digit EAN-8 is 8 digits in length with the last one as its check digit used to verify the integrity of the data. ** Transmit EAN-8 Check Digit Do Not Transmit EAN-8 Check Digit...

  • Page 74: Add-On Code

    Add-On Code An EAN-8 barcode can be augmented with a two-digit or five-digit add-on code to form a new one. In the examples below, the part surrounded by blue dotted line is an EAN-8 barcode while the part circled by red dotted line is add-on code.

  • Page 75: Add-On Code Required

    Add-On Code Required When EAN-8 Add-On Code Required is selected, the engine will only read EAN-8 barcodes that contain add-on codes. EAN-8 Add-On Code Required ** EAN-8 Add-On Code Not Required EAN-8 Extension Disable EAN-8 Zero Extend: Transmit EAN-8 barcodes as is. Enable EAN-8 Zero Extend: Add five leading zeros to decoded EAN-8 barcodes to extend to13 digits.

  • Page 76: Restore Factory Defaults

    EAN-13 Restore Factory Defaults Restore the Factory Defaults of EAN-13 Enable/Disable EAN-13 ** Enable EAN-13 Disable EAN-13 Transmit Check Digit EAN-13 is 13 digits in length with the last one as its check digit used to verify the integrity of the data. ** Transmit EAN-13 Check Digit Do Not Transmit EAN-13 Check Digit...

  • Page 77: Add-On Code

    Add-On Code An EAN-13 barcode can be augmented with a two-digit or five-digit add-on code to form a new one. In the examples below, the part surrounded by blue dotted line is an EAN-13 barcode while the part circled by red dotted line is add-on code.

  • Page 78: Add-On Code Required

    Add-On Code Required When EAN-13 Add-On Code Required is selected, the engine will only read EAN-13 barcodes that contain add-on codes. EAN-13 Add-On Code Required ** EAN-13 Add-On Code Not Required...

  • Page 79: Issn

    ISSN Restore Factory Defaults Restore the Factory Defaults of ISSN Enable/Disable ISSN Enable ISSN ** Disable ISSN...

  • Page 80: Isbn

    ISBN Restore Factory Defaults Restore the Factory Defaults of ISBN Enable/Disable ISBN ** Enable ISBN Disable ISBN Set ISBN Format ** ISBN-13 ISBN-10...

  • Page 81: Upc-E

    UPC-E Restore Factory Defaults Restore the Factory Defaults of UPC-E Enable/Disable UPC-E ** Enable UPC-E Disable UPC-E Transmit Check Digit UPC-E is 8 digits in length with the last one as its check digit used to verify the integrity of the data. ** Transmit UPC-E Check Digit Do Not Transmit UPC-E Check Digit...

  • Page 82: Add-On Code

    Add-On Code A UPC-E barcode can be augmented with a two-digit or five-digit add-on code to form a new one. In the examples below, the part surrounded by blue dotted line is a UPC-E barcode while the part circled by red dotted line is add-on code.

  • Page 83: Add-On Code Required

    Add-On Code Required When UPC-E Add-On Code Required is selected, the engine will only read UPC-E barcodes that contain add-on codes. UPC-E Add-On Code Required ** UPC-E Add-On Code Not Required Transmit System Character The first character of UPC-E barcode is the system character “0”. Transmit System Character “0”...

  • Page 84: Upc-A

    UPC-A Restore Factory Defaults Restore the Factory Defaults of UPC-A Enable/Disable UPC-A ** Enable UPC-A Disable UPC-A Transmit Check Digit UPC-A is 13 digits in length with the last one as its check digit used to verify the integrity of the data. ** Transmit UPC-A Check Digit Do Not Transmit UPC-A Check Digit...

  • Page 85: Add-On Code

    Add-On Code A UPC-A barcode can be augmented with a two-digit or five-digit add-on code to form a new one. In the examples below, the part surrounded by blue dotted line is a UPC-A barcode while the part circled by red dotted line is add-on code.

  • Page 86: Add-On Code Required

    Add-On Code Required When UPC-A Add-On Code Required is selected, the engine will only read UPC-A barcodes that contain add-on codes. UPC-A Add-On Code Required ** UPC-A Add-On Code Not Required Transmit Preamble Character Preamble characters (Country Code and System Character) can be transmitted as part of a UPC-A barcode.

  • Page 87: Interleaved 2 Of 5

    Interleaved 2 of 5 Restore Factory Defaults Restore the Factory Defaults of Interleaved 2 of 5 Enable/Disable Interleaved 2 of 5 ** Enable Interleaved 2 of 5 Disable Interleaved 2 of 5...

  • Page 88: Check Digit Verification

    Check Digit Verification A check digit is optional for Interleaved 2 of 5 and can be added as the last digit. It is a calculated value used to verify the integrity of the data. Disable: The engine transmits Interleaved 2 of 5 barcodes as is. Do Not Transmit Check Digit After Verification: The engine checks the integrity of all Interleaved 2 of 5 barcodes to verify that the data complies with the check digit algorithm.

  • Page 89: Transmit Appended "0

    Transmit Appended “0” If an Interleaved 2 of 5 barcode contains an odd number of characters, a leading zero must be appended to the barcode. Scan the appropriate barcode to choose whether to transmit the appended “0”. ** Transmit Appended “0” Do Not Transmit Appended “0”...
  • Page 90 ITF-6 ITF-6 is a special kind of Interleaved 2 of 5 with a length of 6 characters and the last character as the check character. Restore the Factory Defaults of ITF-6 ** Disable ITF-6 Enable ITF-6 But Do Not Transmit Check Digit Enable ITF-6 and Transmit Check Digit Note: It is advisable not to enable ITF-6 and Interleaved 2 of 5 at the same time.
  • Page 91 ITF-14 ITF-14 is a special kind of Interleaved 2 of 5 with a length of 14 characters and the last character as the check character. Restore the Factory Defaults of ITF-14 Disable ITF-14 Enable ITF-14 But Do Not Transmit Check Digit Enable ITF-14 and Transmit Check Digit Note: It is advisable not to enable ITF-14 and Interleaved 2 of 5 at the same time.

  • Page 92: Matrix 2 Of 5

    Matrix 2 of 5 Restore Factory Defaults Restore the Factory Defaults of Matrix 2 of 5 Enable/Disable Matrix 2 of 5 ** Enable Matrix 2 of 5 Disable Matrix 2 of 5...

  • Page 93: Check Digit Verification

    Check Digit Verification Disable Do Not Transmit Check Digit After Verification Transmit Check Digit After Verification...

  • Page 94: Industrial 25

    Industrial 25 Restore Factory Defaults Restore the Factory Defaults of Industrial 25 Enable/Disable Industrial 25 ** Enable Industrial 25 Disable Industrial 25...

  • Page 95: Check Digit Verification

    Check Digit Verification ** Disable Do Not Transmit Check Digit After Verification Transmit Check Digit After Verification...

  • Page 96: Standard 25

    Standard 25 Restore Factory Defaults Restore the Factory Defaults of Standard 25 Enable/Disable Standard 25 ** Enable Standard 25 Disable Standard 25...

  • Page 97: Check Digit Verification

    Check Digit Verification ** Disable Do Not Transmit Check Digit After Verification Transmit Check Digit After Verification...

  • Page 98: Code 39

    Code 39 Restore Factory Defaults Restore the Factory Defaults of Code 39 Enable/Disable Code 39 ** Enable Code 39 Disable Code 39 Transmit Start/Stop Character Transmit Start/Stop Character Do Not Transmit Start/Stop Character...

  • Page 99: Check Digit Verification

    Check Digit Verification Disable Do Not Transmit Check Digit After Verification Transmit Check Digit After Verification Enable/Disable Code 39 Full ASCII The engine can be configured to identify all ASCII characters by scanning the appropriate barcode below. Enable Code 39 Full ASCII ** Disable Code 39 Full ASCII...

  • Page 100: Codabar

    Codabar Restore Factory Defaults Restore the Factory Defaults of Codabar Enable/Disable Codabar ** Enable Codabar Disable Codabar...

  • Page 101: Check Digit Verification

    Check Digit Verification Disable Do Not Transmit Check Digit After Verification Transmit Check Digit After Verification Transmit Start/Stop Character Transmit Start/Stop Character Do Not Transmit Start/Stop Character...

  • Page 102: Start/Stop Character Format

    Start/Stop Character Format ** ABCD/ABCD as the Start/Stop Character ABCD/TN*E as the Start/Stop Character abcd/abcd as the Start/Stop Character abcd/tn*e as the Start/Stop Character...

  • Page 103: Code 93

    Code 93 Restore Factory Defaults Restore the Factory Defaults of Code 93 Enable/Disable Code 93 ** Enable Code 93 Disable Code 93...

  • Page 104: Check Digit Verification

    Check Digit Verification Disable Do Not Transmit Check Digit After Verification Transmit Check Digit After Verification...

  • Page 105: Code 11

    Code 11 Restore Factory Defaults Restore the Factory Defaults of Code 11 Enable/Disable Code 11 ** Enable Code 11 Disable Code 11...

  • Page 106: Check Digit Verification

    Check Digit Verification Disable ** One Check Digit, MOD11 Two Check Digits, MOD11/MOD11 Two Check Digits, MOD11/MOD9 One Check Digit, MOD11 (Len <= 11) One Check Digit, MOD11 (Len <= 11) Two Check Digits, MOD11/MOD11 (Len > 11) Two Check Digits, MOD11/MOD9 (Len > 11) ** Transmit Check Digit Do Not Transmit Check Digit...

  • Page 107: Plessey

    Plessey Restore Factory Defaults Restore the Factory Defaults of Plessey Enable/Disable Plessey ** Enable Plessey Disable Plessey...

  • Page 108: Check Digit Verification

    Check Digit Verification Disable ** Do Not Transmit Check Digit After Verification Transmit Check Digit After Verification...

  • Page 109: Msi-Plessey

    MSI-Plessey Restore Factory Defaults Restore the Factory Defaults of MSI-Plessey Enable/Disable MSI-Plessey ** Enable MSI-Plessey Disable MSI-Plessey...

  • Page 110: Check Digit Verification

    Check Digit Verification Disable ** One Check Digit, MOD10 Two Check Digits, MOD10/MOD10 Two Check Digits, MOD10/MOD11 ** Transmit Check Digit Do Not Transmit Check Digit...

  • Page 111: 101

    RSS-14 Restore Factory Defaults Restore the Factory Defaults of RSS-14 Enable/Disable RSS-14 ** Enable RSS-14 Disable RSS-14 Transmit Application Identifier “01” ** Transmit Application Identifier “01” Do Not Transmit Application Identifier “01”...

  • Page 112: Rss-Limited

    RSS-Limited Restore Factory Defaults Restore the Factory Defaults of RSS-Limited Enable/Disable RSS-Limited ** Enable RSS-Limited Disable RSS-Limited Transmit Application Identifier “01” ** Transmit Application Identifier “01” Do Not Transmit Application Identifier “01”...

  • Page 113: Rss-Expand

    RSS-Expand Restore Factory Defaults Restore the Factory Defaults of RSS-Expand Enable/Disable RSS-Expand ** Enable RSS-Expand Disable RSS-Expand...

  • Page 114: 2D Symbologies

    2D Symbologies PDF417 Restore Factory Defaults Restore the Factory Defaults of PDF417 Enable/Disable PDF417 **Enable PDF417 Disable PDF417...

  • Page 115: Data Matrix

    Data Matrix Restore Factory Defaults Restore the Factory Defaults of Data Matrix Enable/Disable Data Matrix **Enable Data Matrix Disable Data Matrix Rectangular Barcodes ** Decode Rectangular Barcodes Do Not Decode Rectangular Barcodes...

  • Page 116: Mirror Images

    Mirror Images ** Decode Unmirrored DM Only Decode Mirrored DM Only Decode Both...

  • Page 117: Qr Code

    QR Code Restore Factory Defaults Restore the Factory Defaults of QR Code Enable/Disable QR Code **Enable QR Code Disable QR Code Micro QR **Enable Micro QR Disable Micro QR...

  • Page 118: Mirrored Micro Qr

    Mirrored Micro QR Decode Mirrored Micro QR ** Do Not Decode Mirrored Micro QR...

  • Page 119: Appendix

    Appendix Appendix A: Factory Defaults Table Parameter Factory Default Remark Programming Barcode Barcode Programming Enabled If Send Programming Barcode Data Programming Barcode Data Do not send is enabled, barcode programming will be disabled. Communication Interfaces Baud Rate 9600 Parity Check None TTL-232 Interface Number of Data Bits...
  • Page 120 Parameter Factory Default Remark Decode Session Timeout 3.0s 0.1-25.5s; 0: infinite. Continuous Mode Timeout between Decodes 1.0s 0-25.5s Decode Session Timeout 3.0s 0.1-25.5s; 0: infinite. Timeout between Decodes 1.0s 0-25.5s Sense Mode Image Stabilization Timeout 0.4s 0-25.5s Sensitivity Medium Command Trigger Mode Decode Session Timeout 3.0s 0.1-25.5s;...
  • Page 121 Parameter Factory Default Remark Symbologies Video Reverse Disabled Applicable to all symbologies. Code 128 Code 128 Enabled （ ） UCC/EAN-128 GS1-128 UCC/EAN-128 Enabled AIM 128 AIM 128 Enabled EAN-8 EAN-8 Enabled Check Digit Transmit 2-Digit Add-On Code Disabled 5-Digit Add-On Code Disabled Add-On Code Not required...
  • Page 122 Parameter Factory Default Remark UPC-E Enabled UPC-E Transmit Check Digit Disabled 2-Digit Add-On Code Disabled 5-Digit Add-On Code Not required Add-On Code Disabled Extend to UPC-A System Character “0” Do not transmit UPC-A Enabled UPC-A Transmit Check Digit Disabled 2-Digit Add-On Code Disabled 5-Digit Add-On Code Not required...
  • Page 123 Parameter Factory Default Remark Industrial 25 Industrial 25 Enabled Check Digit Verification Disabled Check Digit Do not transmit Standard 25 Standard 25 Enabled Check Digit Verification Disabled Check Digit Do not transmit Code 39 Code 39 Enabled Check Digit Verification Disabled Check Digit Do not transmit...
  • Page 124 Parameter Factory Default Remark Plessey Plessey Enabled Check Digit Verification Enabled Check Digit Do not transmit MSI-Plessey MSI-Plessey Enabled One check digit, Check Digit Verification MOD10 Check Digit Transmit RSS-14 RSS-14 Enabled AI (Application Identifier) Transmit RSS-Limited RSS-Limited Enabled AI (Application Identifier) Transmit RSS-Expand RSS-Expand...

  • Page 125: Appendix B: Aim Id Table

    Appendix B: AIM ID Table Symbology AIM ID Remark Code 128 Standard Code 128 UCC/EAN 128 FNC1 is the character right after the start character (GS1-128) AIM 128 FNC1 is the 2nd character after the start character Standard EAN-8 EAN-8 ]E4….]E1…...
  • Page 126 Symbology AIM ID Remark Transmit barcodes as is; Full ASCII disabled; no check digit verification One check digit, MOD 43; transmit check digit Code 39 One check digit, MOD 43; do not transmit check digit Full ASCII enabled; no check digit verification Full ASCII enabled;...
  • Page 127 Symbology AIM ID Remark ECC 200; FNC1 is the 1st or 5th character after the start character; ECI supported ECC 200; FNC1 is the 2nd or 6th character after the start character; ECI supported QR1 (comply with AIM ISS 97-001 specifications) QR2 (2005 symbol), ECI protocol not supported QR2 (2005 symbol), ECI protocol supported QR2 (2005 symbol), ECI protocol not supported;...

  • Page 128: Appendix C: Code Id Table

    Appendix C: Code ID Table Symbology Original Code ID Visible Code ID Code 128 FNC3 A(0x41) Code 128 B(0x42) UCC/EAN 128 C(0x43) EAN-8 D(0x44) EAN-13 E(0x45) UPC-E F(0x46) UPC-A G(0x47) Interleaved 2 of 5 H(0x48) ITF-14 I(0x49) ITF-6 J(0x4A) Code 39 M(0x4D) Codabar O(0x4F)

  • Page 129: Appendix D: Ascii Table

    Appendix D: ASCII Table Char (Null char.) (Start of Header) (Start of Text) (End of Text) (End of Transmission) (Enquiry) (Acknowledgment) (Bell) (Backspace) (Horizontal Tab) (Line Feed) (Vertical Tab) (Form Feed) (Carriage Return) (Shift Out) (Shift In) (Data Link Escape) (XON) (Device Control 1) (Device Control 2) (XOFF) (Device Control 3)
  • Page 130 Char (Request to Send) (Unit Separator) (Space) (Exclamation Mark) " (Double Quote) (Number Sign) (Dollar Sign) (Percent) & (Ampersand) (Single Quote) (Left / Opening Parenthesis) (Right / Closing Parenthesis) (Asterisk) (Plus) (Comma) (Minus / Dash) (Dot) (Forward Slash) (Colon) (Semi-colon) <...
  • Page 131 Char > (Greater Than) (Question Mark) (AT Symbol) (Left / Opening Bracket) (Back Slash) (Right / Closing Bracket)
  • Page 132 Char (Caret / Circumflex) (Underscore) (Grave Accent) (Left/ Opening Brace) (Vertical Bar) (Right/Closing Brace) (Tilde) (Delete)

  • Page 133: Appendix E: Parameter Programming Examples

    Appendix E: Parameter Programming Examples The following examples show you how to program parameters by scanning programming barcodes. Program the Decode Session Timeout Example: Set the decode session timeout to 5.0s Scan the Decode Session Timeout barcode. Scan the numeric barcodes “5” and “0”. Scan the Save barcode.

  • Page 134: Program The Sensitivity Level

    Program the Sensitivity Level Example: Set the sensitivity level to 5 Scan the Custom Sensitivity barcode. Scan the numeric barcode “5”. Scan the Save barcode.

  • Page 135: Appendix F: Digit Barcodes

    Appendix F: Digit Barcodes 0 ~ 5...
  • Page 136 6~ 9...
  • Page 137 A ~ F...

  • Page 138: Appendix G: Save/Cancel Barcodes

    Appendix G: Save/Cancel Barcodes After reading numeric barcode(s), you need to scan the Save barcode to save the data. If you scan the wrong digit(s), you can either scan the Cancel the Last Digit barcode and then the correct digit, or scan the Cancel All Digits barcode and then the digits you want.

  • Page 139: Appendix H: Frequently-Used Serial Commands

    Appendix H: Frequently-Used Serial Commands Feature Serial Command Set baud rate to 9600 7E 00 08 01 00 D9 D3 20 38 Set baud rate to 115200 7E 00 08 01 00 D9 D8 91 53 Save register data in EEPROM 7E 00 09 01 00 00 DE C8 Query the baud rate 7E 00 07 01 00 2A 02 D8 0F...
