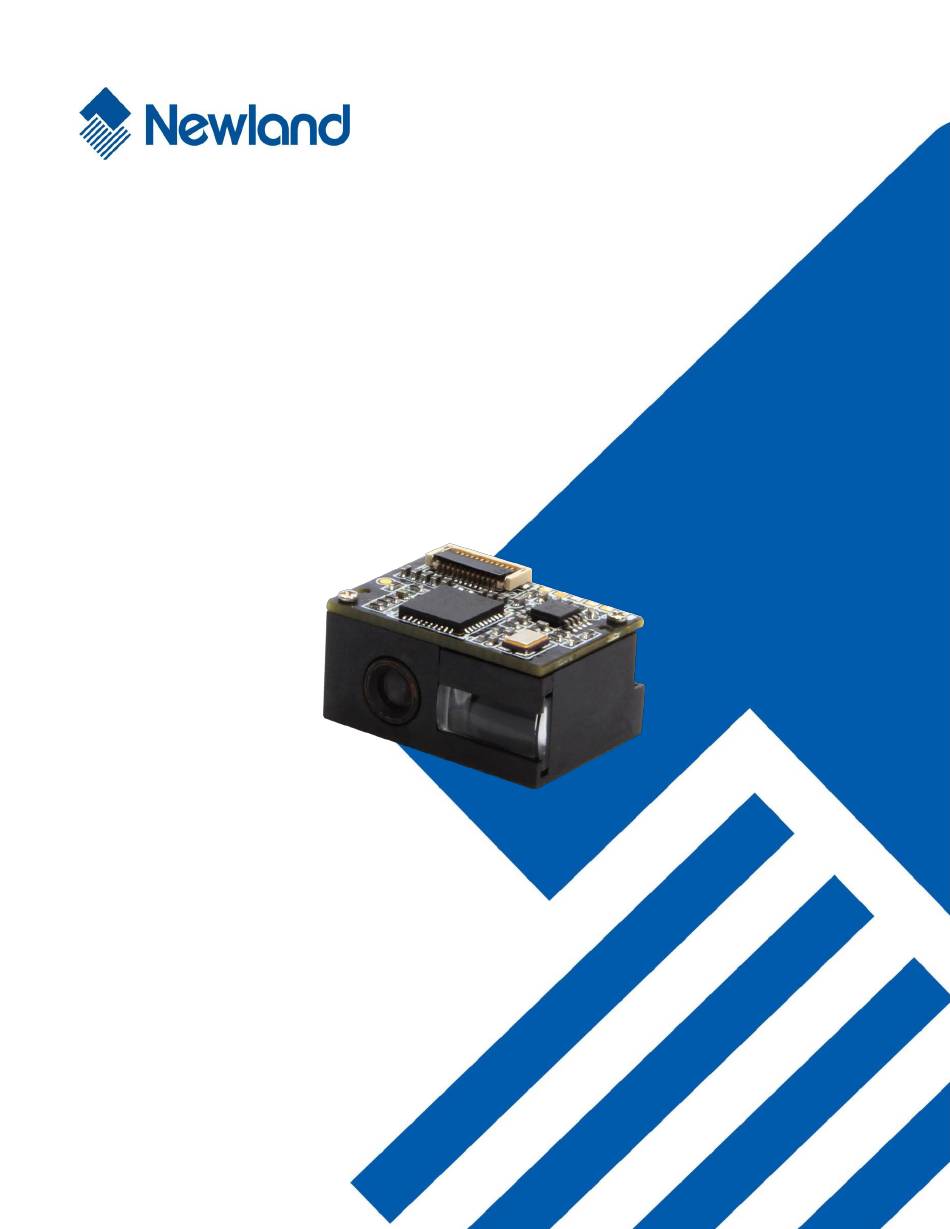

- Page 1 NLS-EM1399-LD OEM Scan Engine Integration Guide...
- Page 2 All pictures in this manual are for reference only and actual product may differ. Regarding to the product modification and update, Fujian Newland Auto-ID Tech. Co., Ltd. reserves the right to make changes to any software or hardware to improve reliability, function, or design at any time without notice. The information contained herein is subject to change without prior notice.
- Page 3 Revision History Version Description Date V1.0.0 Initial release. April 21, 2017...
-
Page 5: Table Of Contents
Table of Contents Chapter 1 Introduction ............................ 1 Overview ..............................1 Illumination ..............................1 Aimer ................................. 1 Chapter 2 Installation ............................2 General Requirements ..........................2 ESD ..............................2 Dust and Dirt ............................. 2 Thermal Considerations ........................2 Installation Orientation ........................3 Optics ................................ - Page 6 Chapter 4 Interfaces ............................11 Host Interface Connector ........................11 Dimensions of the Host Interface Connector (unit: mm) ..............12 FFC Cable (unit: mm) ........................12 Communication Interface ........................13 Trigger ..............................14 Beeper ..............................15 Good Read LED ............................16 Chapter 5 Development Tools ........................
-
Page 7: Chapter 1 Introduction
Chapter 1 Introduction Overview The NLS-EM1399-LD OEM scan engine (the “EM1399-LD” or the “engine”), armed with the Newland patented , a computerized image recognition system, brings about a new era of 1D barcode scan engines. The EM1399-LD’s 1D barcode decoder chip ingeniously blends technology and advanced chip design &... -
Page 8: Chapter 2 Installation
Chapter 2 Installation General Requirements ESD protection has been taken into account when designing the EM1399-LD and the engine is shipped in ESD safe packaging. Always exercise care when handling the engine outside its package. Be sure grounding wrist straps and properly grounded work areas are used. Dust and Dirt The EM1399-LD must be sufficiently enclosed to prevent dust particles from gathering on the lens and circuit board. -
Page 9: Installation Orientation
Installation Orientation The following figure illustrates a front view of the EM1399-LD after correct installation. From left to right in the figure are lens and illumination (aiming), with decoder board on the top and mounting holes on the bottom. Optics Window Placement The window should be positioned properly to let the illumination and aiming beams pass through as much as possible and no reflections back into the engine (reflections can degrade the reading performance). -
Page 10: Window Material And Color
Window Material and Color Wavelength of illumination beam and CIS’s responsiveness (mainly to wavelengths of red light） should be taken into consideration when choosing window material and color, to achieve the possible highest spectral transmission, lowest haze level and homogeneous refractive index. It is suggested to use PMMA or optical glass with spectral transmittance over 90% and haze less than 1%. -
Page 11: Window Size
Window Size The window must not block the field of view and should be sized to accommodate the illumination envelope shown below. Horizontal:... -
Page 12: Ambient Light
Vertical: Ambient Light The EM1399-LD shows better performance with ambient light and it is well able to handle the flicker in fluorescent lights using 50-60Hz AC power. However, high-frequency pulsed light can result in performance degradation. Eye Safety The EM1399-LD has no lasers. It uses a red LED to create aiming and illumination beams. The LED is bright, but testing has been done to demonstrate that the engine is safe for its intended application under normal usage conditions. -
Page 13: Mounting
Mounting The illustrations below show the mechanical mounting dimensions for the EM1399-LD. The structural design should leave some space between components and reserve enough room for the FFC cable. Front View (unit: mm) Left View (unit: mm) -
Page 14: Bottom View (Unit: Mm)
Bottom View (unit: mm) -
Page 15: Chapter 3 Electrical Specifications
Chapter 3 Electrical Specifications Power Supply Do not power up the EM1399-LD until it is properly connected. Be sure the power is cut off before connecting a flexible cable to or disconnecting a flexible cable from the host interface connector. Hot-plugging could damage the engine. -
Page 16: Dc Characteristics
DC Characteristics Operating Voltage Ta=23℃ Parameter Description Minimum Typical Maximum Unit Voltage Drain Drain 3.15 3.45 High Level Input Voltage 0.7*V Low Level Input Voltage 0.2*V High Level Output Voltage 0.9*V Low Level Output Voltage 0.1*V Operating Current Ta=23℃， =3.3V Operating Current Standby Current Unit... -
Page 17: Chapter 4 Interfaces
Chapter 4 Interfaces Host Interface Connector The following table lists the pin functions of the 12-pin host interface connector on the EM1399-LD. PIN# Signal Name Function Not connected. 3.3V power supply. Power-supply ground. TTL level 232 receive data. TTL level 232 transmit data. USB_D- USB_D- differential data signal. -
Page 18: Dimensions Of The Host Interface Connector (Unit: Mm)
Dimensions of the Host Interface Connector (unit: mm) The engine uses a 12-pin ZIF socket (bottom contact). The socket can be connected to a host device with an FFC cable. FFC Cable (unit: mm) A 12-pin FFC cable can be used to connect the EM1399-LD to a host device. The cable design must be consistent with the specifications shown below. -
Page 19: Communication Interface
USB COM Port Emulation: The USB port on the host device is emulated as a serial port with the same data transmission and configuration as a real serial port. A driver is required. USB DataPipe: This protocol is defined by Newland. A driver is required when using this protocol to communicate with scanner. ... -
Page 20: Trigger
Trigger Driving the nTrig pin (PIN 12) on the host interface connector low for over 10ms causes the EM1399-LD to start a scan and decode session. If barcode is decoded, the EM1399-LD waits for the voltage at the nTrig pin to turn high (or the trigger to be released) after sending the data to the Host. If the trigger is released during a scan attempt, the EM1399-LD immediately stops decoding. -
Page 21: Beeper
Beeper The EM1399-LD provides a pin (Buzz, PIN 9) on the host interface connector that provides a PWM output to an external driver circuit for generating audible feedback to the user to indicate statuses like power up or good decode. The PWM output is not strong enough to drive a beeper, thus a beeper driver circuit is needed. -
Page 22: Good Read Led
Good Read LED The EM1399-LD provides a pin (LED, PIN 10) on the host interface connector that can be used by an external driver circuit to drive an LED to indicate a Good Read status. When a good read occurs, the LED pin produces a high level output for about 300ms, then the signal is back to a low level. -
Page 23: Chapter 5 Development Tools
Chapter 5 Development Tools The EVK is provided to help users to test and evaluate the EM1399-LD, which contains beeper & beeper driver circuit, LED & LED driver circuit, trigger & reset buttons, TTL-232 to RS-232 converter & TTL-232 to USB converter, RS-232 & USB interfaces, etc. The EM1399-LD can be connected to the EVK via a 12-pin FFC cable type 1 (contacts on the same side). - Page 24 Headquarters Fujian Newland Auto-ID Tech. Co., Ltd. 3F, Building A, No.1, Rujiang West Rd., Mawei, Fuzhou, Fujian, China 350015 TEL: +86 - (0) 591-83978605 FAX: +86 - (0) 591-83979216 E-mail: marketing@nlscan.com WEB: www.newlandaidc.com Newland Europe BV Rolweg 25, 4104 AV Culemborg, The Netherlands...
