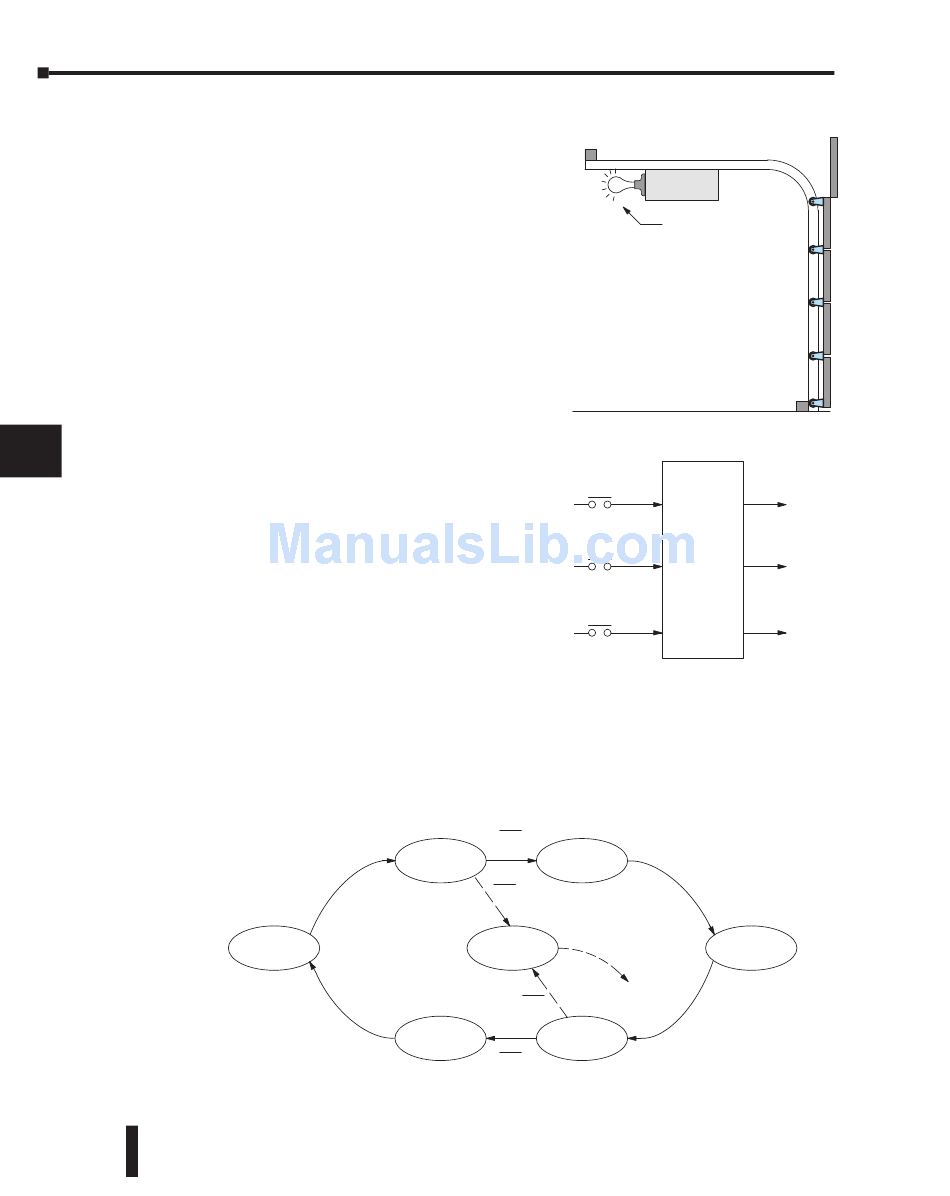

Add Safety Light Feature

1
Next we will add a safety light feature to the door
opener system. It's best to get the main function
2
working first as we have done, then adding the
secondary features.
3
The safety light is standard on many commercially-
available garage door openers. It is shown to the
right, mounted on the motor housing. The light
4
turns on upon any door activity, remaining on for
approximately 3 minutes afterwards.
5
This part of the exercise will demonstrate the use of
parallel states in our state diagram. Instead of using
6
the JMP instruction, we'll use the set and reset
commands.
7

Modify the Block Diagram and State Diagram

To control the light bulb, we add an output to our
controller block diagram, shown to the right, Y3 is the
8
light control output.
In the diagram below, we add an additional state
9
called "LIGHT". Whenever the garage owner presses
the door control switch and releases, the RAISE or
10
LOWER state is active and the LIGHT state is
simultaneously active. The line to the Light state is
dashed, because it is not the primary path.
11
We can think of the Light state as a parallel process to the raise and lower state. The paths to
the Light state are not a transition (Stage JMP), but a State Set command. In the logic of the
12
Light stage, we will place a three-minute timer. When it expires, timer bit T0 turns on and
resets the Light stage. The path out of the Light stage goes nowhere, indicating the Light stage
13
just becomes inactive, and the light goes out!
14
A
B
C
D
7–12
DL05 Micro PLC User Manual, 6th Edition, Rev. A
Stage Programming
X0
DOWN
X2
Inputs
Toggle
Up limit
Down limit
Output equations:
X0
RAISE
Push–UP
X0
LIGHT
X0
LOWER
Push–DOWN
X0
Safety light
Outputs
X0 Y1
X1 Y2
X2 Y3
Y1 = RAISE
Y2 = LOWER
Y3 = LIGHT
X1
UP
T0
X0
Raise
Lower
Light
