Chapter 8: PID Loop Operation
Test the Profile
1

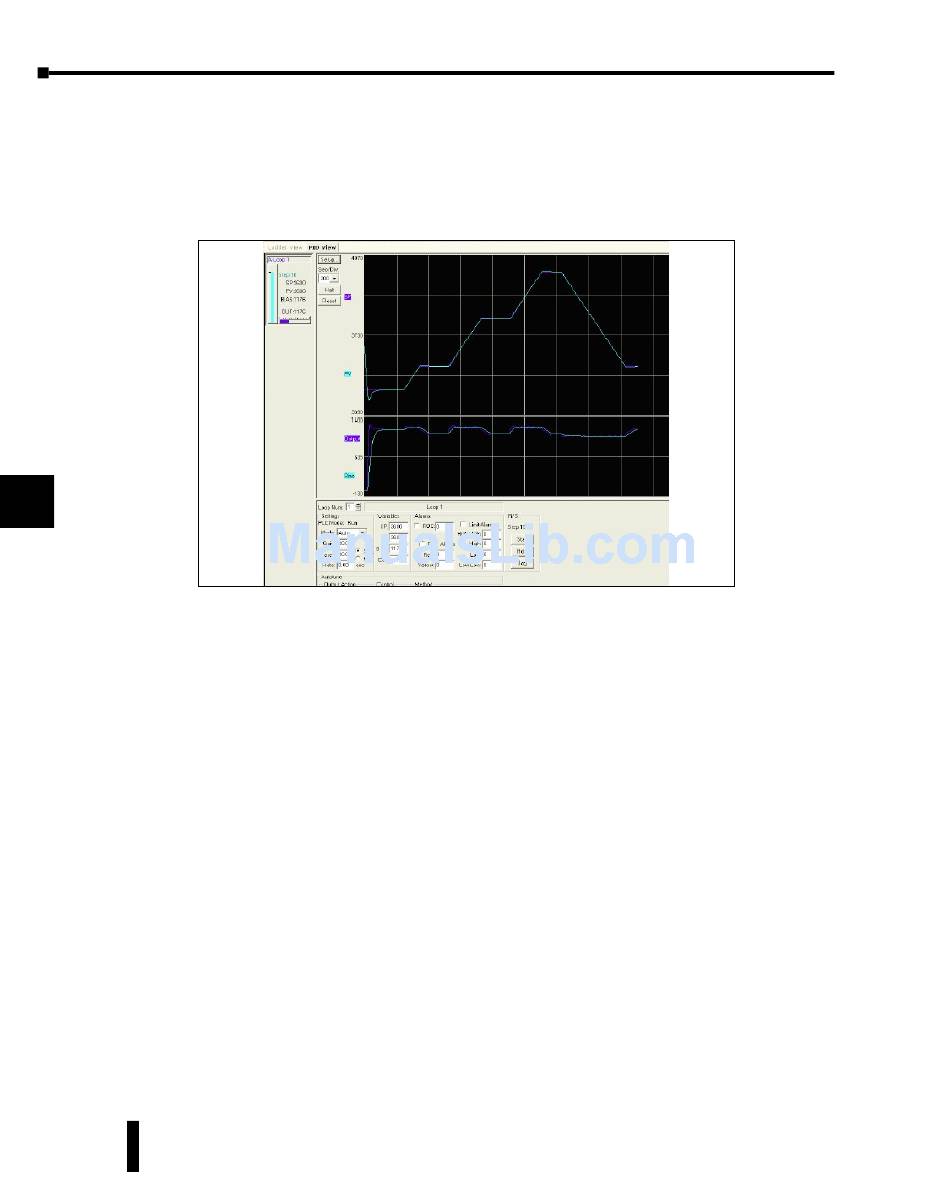

After the Ramp/Soak program has been developed in RLL, test the program. Check your
profile by using PID View. If there are any changes to be made in the profile, they are made
2
in the PID Setup R/S profile. Make the chages in Program mode then start the Ramp/Soak
process again.
