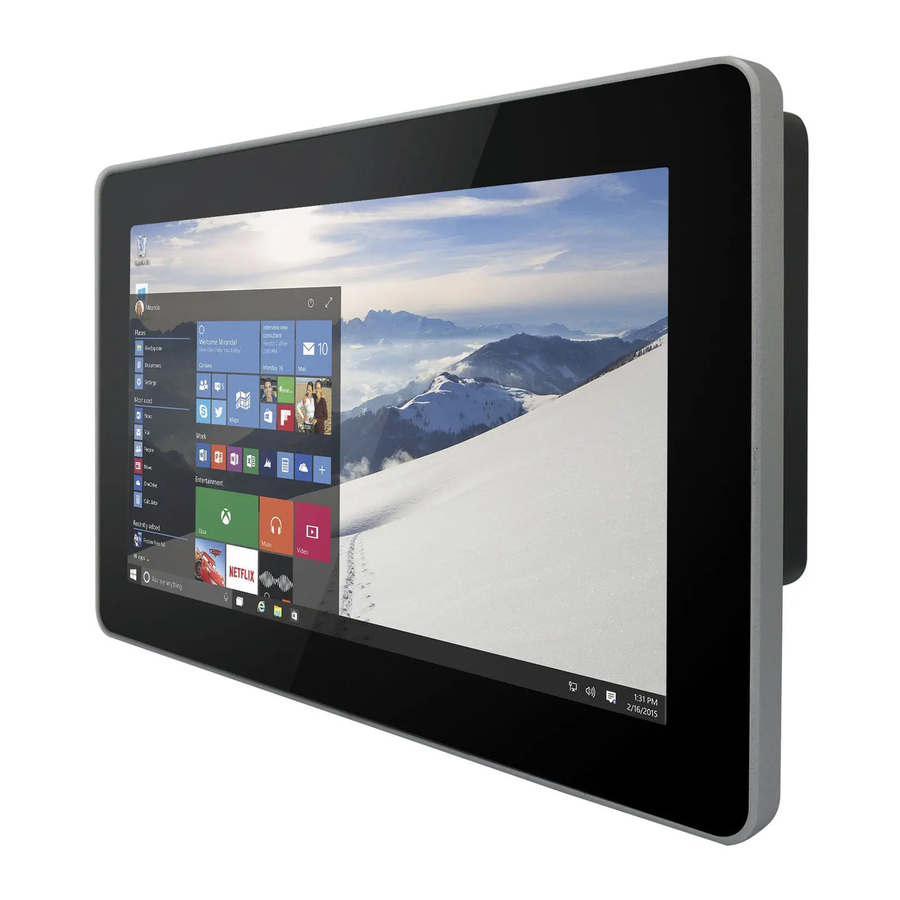

- Page 1 G-WIN Slim IP65 Panel PC Intel® Celeron® Bay Trail-M N2930 1.83 GHz P-CAP Touch W10IB3S-GSH2 W10IB3S-GSH1(HB) R12IB3S-GSM2(HB) R15IB3S-GSC3(HB) User Manual Version 1.0...
-
Page 3: Preface
USER MANUAL PREFACE PREFACE Copyright Notice No part of this document may be reproduced, copied, translated, or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the prior written permission of the original manufacturer. Trademark Acknowledgement Brand and product names are trademarks or registered trademarks of their respective owners. - Page 4 USER MANUAL PREFACE Customer Service We provide a service guide for any problem by the following steps: First, visit the website of our distributor to find the update information about the product. Second, contact with your distributor, sales representative, or our customer service center for technical support if you need additional assistance.
- Page 5 USER MANUAL PREFACE Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. These are Notes, Important, Cautions, and Warnings. The following is an example of each type of advisory. NOTE: A note is used to emphasize helpful information IMPORTANT:...
-
Page 6: Safety Information
USER MANUAL PREFACE Safety Information WARNING! / AVERTISSEMENT! Always completely disconnect the power cord from your chassis whenever you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sudden power surges. Only experienced electronics personnel should open the PC chassis. - Page 7 USER MANUAL PREFACE Before connecting the equipment to the power outlet make sure the voltage of the power source is correct. Position the power cord so that people cannot step on it. Do not place anything over the power cord. ...
- Page 8 USER MANUAL PREFACE Cover workstations with approved anti-static material. Use a wrist strap connected to a work surface and properly grounded tools and equipment. Use anti-static mats, heel straps, or air ionizer for added protection. Handle electrostatic-sensitive components, PCB’s and assemblies by the case or the edge of the board.
-
Page 9: Important Information
USER MANUAL PREFACE Important Information Countries/ Symbol This equipment complies with essential requirements Area Electromagnetic Compatibility Directive(2014/30/EU) Low Voltage Directive (2014/35/EU) Restrictions of the use of certain hazardous substances (RoHS) Directive (2011/65/EU) European Union FCC Part 15 Subpart B Regulations Class B Federal Communications Commission Radio Frequency Interface Statement This device complies with part 15 FCC rules. - Page 10 USER MANUAL PREFACE European Union This equipment is in conformity with the requirement of the following EU legislations and harmonized standards. Product also complies with the Council directions. Electromagnetic Compatibility Directive (2014/30/EU) EN55024: 2010/ A1: 2015 o IEC61000-4-2: 2009 o IEC61000-4-3: 2006+A1: 2007+A2: 2010 o IEC61000-4-4: 2012 o IEC61000-4-5: 2014...
-
Page 11: About This User Manual
ABOUT THIS USER MANUAL ABOUT THIS USER MANUAL This User Manual provides information about using the Winmate® G-WIN Slim IP65 Panel PC (P-CAP) with Intel® Celeron® Bay Trail-M N2930 1.83 GHz processor. This User Manual applies to the G-WIN Slim IP65 Panel PC (P-CAP) – W10IB3S-GSH2, W10IB3S-GSH1(HB), R12IB3S-GSM2(HB), R15IB3S-GSC3(HB). -
Page 13: Table Of Contents
USER MANUAL CONTENTS CONTENTS PREFACE ..........................i ABOUT THIS USER MANUAL ....................i CHAPTER 1: INTRODUCTION ..................... 2 1.1 Product Features ...................... 2 1.2 Package Contents ..................... 3 1.3 Schematics and Dimensions ..................4 1.4 Physical Buttons and LED Indicators ................ 7 CHAPTER 2: GETTING STARTED .................. - Page 14 USER MANUAL CONTENTS 5.2 Graphic Driver ......................47 5.3 Intel Sideband Fabric Device (Intel MBI) Driver (Windows 8) ....... 48 5.4 Intel Trusted Engine Interface (Intel TXE) Driver ........... 49 5.5 Intel Network Connections ..................50 5.6 Audio Driver ......................51 5.7 USB 3.0 Driver (Windows 7) ...................
-
Page 15: Chapter 1: Introduction
USER MANUAL CHAPTER 1 INTRODUCTION INTRODUCTION This chapter gives you product overview, describes features and hardware specification. You will find all accessories that come with the HMI device in the packing list. Mechanical dimensions and drawings included in this chapter. G-WIN SLIM IP65 PANEL PC (P-CAP) -
Page 16: Product Features
INTRODUCTION CHAPTER 1: INTRODUCTION Congratulations on purchasing Winmate® G-WIN Slim IP65 with P-CAP Panel PC. The elegantly designed, yet rugged, industrial grade G-WIN S65 series is designed for usability with brilliant true-flat screens, which offer superior readability and Projected Capacitive Multi-Touch (P-CAP) technology, available in 7”, 10.1”, and 15”... -
Page 17: Package Contents
User Manual Chapter 1 Introduction 1.2 Package Contents Carefully remove the box and unpack your HMI device. Please check if all the items listed below are inside your package. If any of these items are missing or damaged contact us immediately. -
Page 18: Schematics And Dimensions
User Manual Chapter 1 Introduction 1.3 Schematics and Dimensions W10IB3S-GSH2, W10IB3S-GSH1(HB) Unit: mm Dimensions: 263.28 x 173.6 x 40.2 № Description № Description ① 9-36V DC (M12 Type) ④ 1 Watt Speaker ② LAN, USB (M12 Type) ⑤ OSD Control Panel ③... - Page 19 User Manual Chapter 1 Introduction R12IB3S-GSM2(HB) Unit: mm Dimensions: 296.2 x 226.7 x 45.5 № Description № Description ① 9-36V DC (M12 Type) ④ 1 Watt Speaker ② LAN, USB (M12 Type) ⑤ OSD Control Panel ③ RS232 (M12 Type) G-WIN SLIM IP65 PANEL PC (P-CAP)
- Page 20 User Manual Chapter 1 Introduction R15IB3S-GSC3(HB) Unit: mm Dimensions: 363.4 x 277.86 x 45.2 № Description № Description ① 9-36V DC (M12 Type) ④ 1 Watt Speaker ② LAN, USB (M12 Type) ⑤ OSD Control Panel ③ RS232 (M12 Type) G-WIN SLIM IP65 PANEL PC (P-CAP)
-
Page 21: Physical Buttons And Led Indicators
User Manual Chapter 1 Introduction 1.4 Physical Buttons and LED Indicators Physical buttons and LED indicators (OSD Control Panel) located on the rear side of the Panel PC. Physical Buttons Icon Button Description Reset Press to reset the system Power On/ Off Press to power on or power off the device LED Indicators LED Type... -
Page 23: Chapter 2: Getting Started
USER MANUAL CHAPTER 2 GETTING STARTED GETTING STARTED This chapter tells you important information on power supply, adapter and precautions tips. Pay attention to power considerations. G-WIN SLIM IP65 PANEL PC (P-CAP) -
Page 24: Turning On And Off
USER MANUAL CHAPTER 2 GETTING STARTED CHAPTER 2: GETTING STARTED This chapter provides information on how to connect the HMI device to the source of power, connector pinouts and the guideline to turn on/off the HMI device. 2.1 Turning On and Off 2.1.1 Turning on Your Device 1. -
Page 25: Turning Off Your Device
USER MANUAL CHAPTER 2 GETTING STARTED 2.1.2 Turning off Your Device Disconnect the power cord from the Panel PC to completely turn off the device. G-WIN Slim IP65 Panel PC (P-CAP) -
Page 26: Connecting To Other Devices
USER MANUAL CHAPTER 2 GETTING STARTED 2.2 Connecting to Other Devices 2.2.1 Diagram The Panel PC features M12 type connectors with protective cap and has full IP65 rating. This Panel PC comes with various interfaces located on the bottom panel. All of these connectors have been shipped with protective caps. -
Page 27: Connector Description
USER MANUAL CHAPTER 2 GETTING STARTED 2.2.2 Connector Description 2.2.2.1 Power Input Connector Panel PC has M12 type 3 pin male power input connector which accepts 12V DC power input. Use IP65 power cable to connect the Panel PC to the source of power. G-WIN Slim IP65 Panel PC (P-CAP) - Page 28 USER MANUAL CHAPTER 2 GETTING STARTED 2.2.2.2 Serial Interface Connector Panel PC has M12 type 10 pin male RS-232 connector. Use IP65 serial cable to connect the Panel PC to external devices. G-WIN SLIM IP65 PANEL PC (P-CAP)
- Page 29 USER MANUAL CHAPTER 2 GETTING STARTED 2.2.2.3 Giga LAN + USB 2.0 Connector Panel PC has M12 type 12 pin male Giga LAN and USB connector that supports two LAN and one USB 2.0. G-WIN Slim IP65 Panel PC (P-CAP)
-
Page 30: Chapter 3: Operating The Device
USER MANUAL CHAPTER 3 OPERATING THE DEVICE OPERATING THE DEVICE This chapter provides detailed information on how to operate the device. If you have been using Android touch-screen Panel PCs before, the interface may look familiar. Sections include system settings parameters. G-WIN SLIM IP65 PANEL PC (P-CAP) -
Page 31: Operating System
USER MANUAL CHAPTER 3 OPERATING THE DEVICE CHAPTER 3: OPERATING THE DEVICE In this chapter you will find an instruction on how to operate the Panel PC. 3.1 Operating System G-WIN Slim IP65 (P-CAP) Panel PC supports: Windows 10 IoT Enterprise ... -
Page 32: Multi-Touch
USER MANUAL CHAPTER 3 OPERATING THE DEVICE 3.2 Multi-Touch The touchpad supports the core gestures for Windows. Gesture Windows Gesture Action Action Usage Tap/ Click / Click or double-click Double-tap Double-click Panning with Scrolling Drag one or two Inertia fingers up and down Selection/ Mouse-drag/ Drag one finger... -
Page 33: How To Enable Watchdog
OPERATING THE DEVICE 3.3 How to Enable Watchdog To enable Watchdog, you need to download Winmate Watchdog utility. Find more information on Watchdog in “Watchdog Guide” that you can download from Winmate Download Center or File Share. Refer to the User Manual for more details. - Page 34 USER MANUAL CHAPTER 3 OPERATING THE DEVICE Settings Description The system automaticity restarts when this countdown time reaches zero. Watchdog Countdown Time Default: 10 min To set a cycle time to automatically reset Periodically Feed Time watchdog timer. Default: 9 min Enable / Disable Enable or disable watchdog.
-
Page 35: Chapter 4: Bios Setup
USER MANUAL CHAPTER 4 BIOS SETUP BIOS SETUP BIOS Setup Utility is a program for configuration basic Input / Output system settings of the HMI for optimum use. This chapter provides information on how to use BIOS setup, its functions and menu. G-WIN Slim IP65 Panel PC (P-CAP) -
Page 36: When And How To Use Bios Setup
USER MANUAL CHAPTER 4 BIOS SETUP CHAPTER 4: BIOS SETUP 4.1 When and How to Use BIOS Setup To enter the BIOS setup, you need to connect an external USB keyboard, press <Del> key when the prompt appears on the screen during start up. The prompt screen shows only few seconds, you need to press <Del>... - Page 37 USER MANUAL CHAPTER 4 BIOS SETUP The following Keys can be used after entering the BIOS Setup. Function General Help Previous Values Optimized Defaults Save & Exit Exit Change Opt. Enter Select or execute command Cursor ↑ Moves to the previous item Cursor ↓...
-
Page 38: Main Menu
USER MANUAL CHAPTER 4 BIOS SETUP 4.2.1 Main Menu When you enter BIOS setup, the first menu that appears on the screen is the main menu.It contains the system information including BIOS version, processor RC version, system language, time, and date. Immediately after the [DEL] key is pressed during startup, the main BIOS setup menu appears: BIOS Setting... -
Page 39: Advanced Menu
USER MANUAL CHAPTER 4 BIOS SETUP 4.2.2 Advanced Menu The advanced menu also uses to set configuration of the CPU and other system devices. There are sub menus on the left frame of the screen. IMPORTANT: Handle advanced BIOS settings page with caution. Any changes can affect the operation of your computer. - Page 40 USER MANUAL CHAPTER 4 BIOS SETUP BIOS Setting Description Setting Option Effect ACPI Settings Configures ACPI Enter Opens submenu settings F81866 Super IO Configures IO Enter Opens submenu Configuration settings Hardware Monitor Configures Enter Opens submenu Hardware Monitor settings S5 RTC Wake Configures RTC Enter Opens submenu...
- Page 41 USER MANUAL CHAPTER 4 BIOS SETUP 4.2.2.1 ACPI Settings Advanced Configuration and Power Interface (ACPI) settings allow to control how the power switch operates. The power supply can be adjusted for power requirements. You can use the screen to select options of ACPI configuration. A description of the selected items will appear on the right side of the screen.
- Page 42 USER MANUAL CHAPTER 4 BIOS SETUP 4.2.2.2 F81866 Super IO Configuration You can use the screen to select options for Super IO Configuration, and change the value of the option selected. A description of the selected item appears on the right side of the screen.
- Page 43 USER MANUAL CHAPTER 4 BIOS SETUP 4.2.2.2.3 GPI0 Port Configuration You can use the screen to change GPI0 Port setting. Use these items to set parameters related to PIN3-PIN14 Control. 4.2.2.3 Hardware Monitor You can check PC Health Status parameters such as system temperature, fan speed etc. G-WIN Slim IP65 Panel PC (P-CAP)
- Page 44 USER MANUAL CHAPTER 4 BIOS SETUP 4.2.2.4 S5 RTC Wake Settings Wake system from S5 enables or disables system wake on alarm event. It allows you to wake up the system in a certain time. 4.2.2.4.1 Wake System from S5 with fixed time setting Select Fixed Time to set the system to wake on the specified time.
- Page 45 USER MANUAL CHAPTER 4 BIOS SETUP 4.2.2.4.2 Wake system from S5 after dynamic time setting Select Dynamic Time to set the system to wake on the current time + increase minute (s). G-WIN Slim IP65 Panel PC (P-CAP)
- Page 46 USER MANUAL CHAPTER 4 BIOS SETUP 4.2.2.5 CPU Configuration BIOS Setting Description Setting Option Effect Socket CPU This item contains Enter Open sub-menu Information socket specific CPU information. CPU Thermal Thermal control Enter Open sub-menu Configuration Limit CPUID Limits CPIID Disabled/Enabled Enable/Disable this Maximum...
- Page 47 USER MANUAL CHAPTER 4 BIOS SETUP 4.2.2. PPM Configuration BIOS Setting Description Setting Option Effect CPU C State Report Shows CPU C State Enabled/ Enable or Disable Report Disabled CPU C state report to OS Max CPU C-State Allows to enter C1E, C3, C6, C7, Enable or Disable power-saving...
- Page 48 USER MANUAL CHAPTER 4 BIOS SETUP 4.2.2.7 Thermal Configuration This menu allows controlling thermal settings of the computer. Refer to the descriptions on the top right side of the screen for detailed information about each setting. BIOS Setting Description Setting Option Effect Critical Trip Point Specifies the...
- Page 49 USER MANUAL CHAPTER 4 BIOS SETUP 4.2.2.8 IDE Configuration BIOS Setting Description Setting Option Effect Serial- ATA (SATA) Responsible for Enabled/ Enable or disable supporting chipset Disabled this function drives with SATA interface. SATA Speed Allows forcing the Gen1 The maximum Support speed limit SATA II speed will be...
- Page 50 USER MANUAL CHAPTER 4 BIOS SETUP SATA Mode This option specifies the [AHCI] Selecting this option allows operation mode of you to take full advantage modern IDE / SATA- of the extended host controller chipset controller SATA II [IDE] SATA controller will operate in a mechanism similar to a conventional IDE-controller...
- Page 51 USER MANUAL CHAPTER 4 BIOS SETUP 4.2.2.9 Miscellaneous Configuration 4.2.2.9.1 OS Selection This item allows users to select the proper Operating System. BIOS Setting Description Setting Option Effect Windows 8.X Allows user to Enter Use Windows 8.X choose the proper Windows 7 Allows user to Enter...
- Page 52 USER MANUAL CHAPTER 4 BIOS SETUP 4.2.2.10 CSM Configuration BIOS Setting Description Setting Option Effect CSM Support The Compatibility Enabled/ Enable or disable Support Module (CSM) is Disabled the Compatibility a component of the UEFI Support Module firmware that provides legacy BIOS compatibility by emulating a BIOS environment, allowing...
- Page 54 USER MANUAL CHAPTER 4 BIOS SETUP Video Specifies which Video option ROM UEFI Only UEFI option is booted ROMs are booted Legacy Only Legacy option ROMs are booted Other PCI Specifies which option ROM is UEFI Only UEFI option Devices booted for devices other than the ROMs are booted network, storage or video...
- Page 56 USER MANUAL CHAPTER 4 BIOS SETUP XHCI Hand‐off This is a Disable Disables this workaround for OSs function without XHCI hand‐ Enable Enables this off support. function EHCI Hand‐off This is a Disable Disables this workaround for OSs function without ECHI hand‐ Enable Enables this off support.
- Page 57 USER MANUAL CHAPTER 4 BIOS SETUP 4.2.2.12 Platform Trust Technology BIOS Setting Description Setting Option Effect fTPM Trusted Platform Enabled/Disabled Enables or Module parameters disables this function G-WIN SLIM IP65 PANEL PC (P-CAP)
- Page 58 USER MANUAL CHAPTER 4 BIOS SETUP 4.2.2.13 Security Configuration BIOS Setting Description Setting Option Effect Trusted Execution Enabled/Disabled Enables or Technology disables this parameters function TXE HMRFPO TXE HMRFPO Enabled/Disabled Enables or parameters disables this function TXE Firmware TXE Firmware Enabled/Disabled Enables or Update...
-
Page 59: Chipset Menu
USER MANUAL CHAPTER 4 BIOS SETUP 4.2.3 Chipset Menu For items marked with ►, please press <Enter> for more options. BIOS Setting Description Setting Option Effect High Precious Allow to set up Enabled/ Enables/Disables Timer High Precious Disabled this function Timer settings Restore AC Power This function allows... -
Page 60: Security Menu
USER MANUAL CHAPTER 4 BIOS SETUP 4.2.4 Security Menu In the Security menu, users can set administrator password, user password, and HDD security configuration. BIOS Setting Description Setting Option Effect Administrator Displays whether Enter Enter password Password or not an administrator password has been set. -
Page 61: Boot Configuration
USER MANUAL CHAPTER 4 BIOS SETUP 4.2.5 Boot Configuration The Boot menu sets the sequence of the devices to be searched for the operating system. The bootable devices will be automatically detected during POST and shown here, allowing you to set the sequence that the BIOS uses to look for a boot device from which to load the operating system. - Page 62 USER MANUAL CHAPTER 4 BIOS SETUP Fast Boot Enables or disables Disabled Disables this Fast Boot to function shorten the OS Enabled Enables this boot process. function (Default: Disabled). Boot Mode Select Specifies which Legacy Only Legacy option mode will be used is booted for booting UEFI...
-
Page 63: Save & Exit
USER MANUAL CHAPTER 4 BIOS SETUP 4.2.6 Save & Exit The Exit menu displays a way how to exit BIOS Setup utility. After finishing your settings, you must save and exit for changes to be applied. BIOS Setting Description Setting Option Effect Save Changes and This saves the... - Page 64 USER MANUAL CHAPTER 4 BIOS SETUP Discard Changes Reset system setup Enter <YES> Saves the changes and Reset without saving any changes Enter <NO> Return to the BIOS Setup Main Menu Save Changes Save changes done Enter <YES> Saves the changes so far to any of the setup options.
-
Page 65: Using Recovery Wizard To Restore Computer
USER MANUAL CHAPTER 4 BIOS SETUP 5.3 Using Recovery Wizard to Restore Computer Note: Before starting the recovery process, make sure to backup all user data. The data will be lost after the recovery process. To enable quick one-key recovery procedure: ... -
Page 66: Driver Installation
USER MANUAL CHAPTER 5 DRIVER INSTALLATION DRIVER INSTALLATION This chapter describes hot to install drivers to the Panel PC. G-WIN SLIM IP65 PANEL PC (P-CAP) -
Page 67: Chapter 5: Driver Instalation
USER MANUAL CHAPTER 5 DRIVER INSTALLATION CHAPTER 5: DRIVER INSTALATION This chapter provides guideline to driver installations. 5.1 Chipset Driver Step 1 Insert the CD that comes with the motherboard. Open the file document “Chipset Driver” and click “infinst_auto.exe” to install driver. Step 2 Click Next to continue. - Page 68 USER MANUAL CHAPTER 5 DRIVER INSTALLATION Step 3 Click Yes to agree the license terms. Step 4 Click Next to install the driver. Step 5 Software setup progress window will appear, click Next to continue. Step 6 Click “Yes, I want to restart this computer now” to finish the installation. G-WIN SLIM IP65 PANEL PC (P-CAP)
-
Page 69: Graphic Driver
USER MANUAL CHAPTER 5 DRIVER INSTALLATION 5.2 Graphic Driver Step 1 Insert the CD that comes with the motherboard. Open the file document “Graphics Driver” and click Setup to execute the setup. Step 2 Setup Welcome Window will appear, click Next to continue the process. Step 3 Carefully read the license terms and click Yes to agree. -
Page 70: Intel Sideband Fabric Device (Intel Mbi) Driver (Windows 8)
USER MANUAL CHAPTER 5 DRIVER INSTALLATION 5.3 Intel Sideband Fabric Device (Intel MBI) Driver (Windows 8) Step 1 Insert the CD that comes with the motherboard. Open the file document “MBI” and click “Setup.exe” to install the driver. Step 2 Welcome to the setup program window will appear, click Next to start the installation. -
Page 71: Intel Trusted Engine Interface (Intel Txe) Driver
USER MANUAL CHAPTER 5 DRIVER INSTALLATION 5.4 Intel Trusted Engine Interface (Intel TXE) Driver Step 1 Insert the CD that comes with the motherboard. Open the file document “TXE” and click “Setup TXE.exe” to install the driver. Step 2 Welcome to the setup program window will appear, click Next to start the installation. -
Page 72: Intel Network Connections
USER MANUAL CHAPTER 5 DRIVER INSTALLATION 5.5 Intel Network Connections User must confirm the type of operating system is being used before installing Intel Network Connections. Follow the steps below to complete the installation. Step 1 Click “PROWin64.exe” Step 2 Click Yes to start the installation. Step 3 Welcome window will appear, click Next to install the driver. -
Page 73: Audio Driver
USER MANUAL CHAPTER 5 DRIVER INSTALLATION 5.6 Audio Driver The ALC886 series are high-performance 7.1+2 channel high definition audio codecs that provide ten DAC channels for simultaneous support of 7.1 sound playback, plus 2 channels of independent stereo sound output (multiple streaming) through the front panel stereo outputs. -
Page 74: Usb 3.0 Driver (Windows 7)
USER MANUAL CHAPTER 5 DRIVER INSTALLATION 5.7 USB 3.0 Driver (Windows 7) This HMI features Intel Celeron Trail-M N2930 CPU with the Intel® USB 3.0 extensible Host Controller. You need to install the Intel® USB 3.0 extensible Host Controller driver to enable the function. -
Page 75: Watchdog Driver
User Manual Chapter 4 Software Installation 5.8 Watchdog Driver For more details about Winmate Watchdog, please download Watchdog Guide from Winmate Downloads Center: http://dc.winmate.com.tw/_downloadCenter/2017/Embedded%20Computing/Watchdo g%20Guide_IB_IH_IV_IK.pdf Follow instructions below to install Watchdog driver. 1. Open the Driver CD (included in the package) and select Watchdog driver. -
Page 76: Chapter 6: Mounting
USER MANUAL CHAPTER 6 MOUNTING MOUNTING This chapter provides step-by-step mounting guide for all available mounting options. G-WIN SLIM IP65 PANEL PC (P-CAP) -
Page 77: Cable Mounting Considerations
USER MANUAL CHAPTER 6 MOUNTING CHAPTER 6: MOUNTING This chapter provides mounting guide for all available mounting options. Pay attention to cautions and warning to avoid any damages. WARNING! / AVERTISSEMENT! Follow mounting instructions and use recommended mounting hardware to avoid the risk of injury. Suivez les instructions de montage et d'utilisation recommandé... -
Page 78: Safety Precautions
USER MANUAL CHAPTER 6 MOUNTING 6.2 Safety Precautions Observe the following common safety precautions before installing any electronic device: • Use separate, non-intersecting paths to route power and networking wires. If power wiring and device wiring paths must be crossed make sure the wires are perpendicular at the intersection point. -
Page 79: Vesa Mounting
Use Philips M4x5 screws to fix the desk stand to VESA holes on the back cover of the device. *The picture is for demonstration purposes only. VESA Mounting accessories are not supplied by Winmate. G-WIN SLIM IP65 PANEL PC (P-CAP) -
Page 80: Panel Mounting
USER MANUAL CHAPTER 6 MOUNTING 6.3.2 Panel Mounting Panel Mount mounting solutions is suitable for many applications where Panel PC should be embedded. With this mounting solution flat surface leave no bezel in the front. Size Wall Cutout, mm Screw Hole Diameter, 10.1”... -
Page 81: Chapter 7: Technical Support
USER MANUAL CHAPTER 7 TECHNICAL SUPPORT Technical Support This chapter includes pathway to technical support. G-WIN SLIM IP65 PANEL PC (P-CAP) -
Page 82: Software Developer Support
If any problem occurs fill in Problem Report Form enclosed and immediately contact us. 7.1 Software Developer Support Winmate® provides Software Development Kit (SDK). The table below lists SDK provided by Winmate for Winmate® G-WIN Slim IP65 with P-CAP Panel PC with Intel® Celeron® Bay Trail-M N2930 processor: Item... -
Page 83: Problem Report Form
USER MANUAL CHAPTER 7 TECHNICAL SUPPORT 7.2 Problem Report Form G-WIN Slim IP65 (P-CAP) Customer name: Company: Tel.: Fax: E-mail: Date: Product Serial Number: ____________________________________________________ Problem Description: Please describe the problem as clearly as possible. Detailed description of the occurred problem will allow us to find the best solution to solve the problem as soon as possible. -
Page 84: Appendix A: Product Specifications
USER MANUAL APPENDIX A PRODUCT SPECIFICATIONS Product Specifications This section includes product specifications. Appendix G-WIN SLIM IP65 PANEL PC (P-CAP)) - Page 85 USER MANUAL APPENDIX A PRODUCT SPECIFICATIONS APPENDIX A: PRODUCT SPECIFICATIONS Hardware Specifications Model Name W10IB3S- W10IB3S- R12IB3S- R15IB3S- GSH2 GSH1(HB) GSM2(HB) GSC3(HB) Display 10.1” TFT 10.1” TFT Size/Type 12.1” TFT 15” TFT (Widescreen) (Widescreen) Resolution 1280 x 800 1024 x 600 1024 x 768 1024 x 768 200 nits...
- Page 86 USER MANUAL APPENDIX A PRODUCT SPECIFICATIONS Input/ Output COM Port 1 x RS232 (M12 type) (Optional 422/485) USB Port 1 x USB 2.0 (M12 type) Ethernet 1 x 10/100/1000 LAN (M12 type) Speaker 1 x 1 Watt Speaker Power Specifications Power Input 9~36V DC Power...
- Page 87 USER MANUAL APPENDIX A PRODUCT SPECIFICATIONS Software Support Item File Type Description Programming Guide For Android Programming Guide For Linux G-WIN SLIM IP65 PANEL PC (P-CAP)
- Page 88 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, Taipei 241, Taiwan, R.O.C Tel: 886-2-8511-0288 Fax: 886-2-8511-0211 Email: sales@winmate.com.tw Official website: www.winmate.com...
