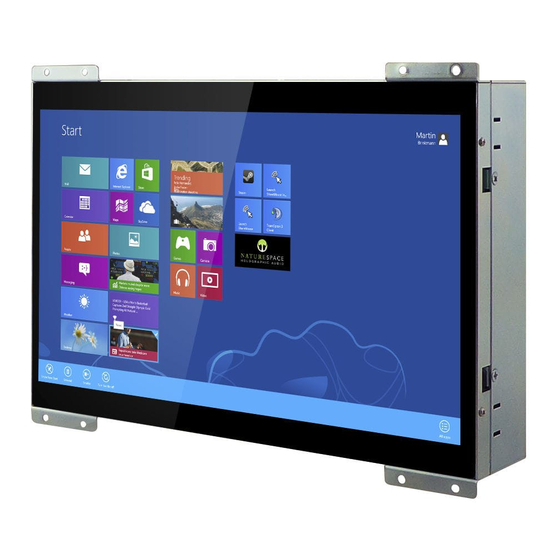

P-Cap Open Frame Panel PC
Quick Start Guide
Document Version 1.2
Document Part No. 9152111I102J
Please read this instructions before operating the device and retain them for future reference.
7~23.8"
Intel® Celeron® Bay Trail-M N2930 1.83 GHz
Model No. W07IB3S-POT1
W10IB3S-POA1
R15IB3S-POC3
W15IB3S-POA4
R19IB3S-POM1
W22IB3S-POA3
W24IB3S-POA2
Advertisement
Table of Contents
Related Manuals for Winmate W07IB3S-POT1
Summary of Contents for Winmate W07IB3S-POT1
- Page 1 7~23.8” P-Cap Open Frame Panel PC Intel® Celeron® Bay Trail-M N2930 1.83 GHz Model No. W07IB3S-POT1 W10IB3S-POA1 R15IB3S-POC3 W15IB3S-POA4 R19IB3S-POM1 W22IB3S-POA3 W24IB3S-POA2 Quick Start Guide Document Version 1.2 Document Part No. 9152111I102J Please read this instructions before operating the device and retain them for future reference.
-
Page 2: Table Of Contents
7~23.8" P-Cap Open Frame Panel PC Quick Start Guide Contents Preface ........................3 Chapter 1: Introduction ................... 6 1.1 Product Features ....................6 1.2 Package Contents ....................6 1.3 Product Overview ....................7 Chapter 2: Mounting ....................11 2.1 Wall Mount ......................11 Chapter 3: Installation ................... -
Page 3: Preface
Preface Preface Copyright Notice No part of this document may be reproduced, copied, translated, or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the prior written permission of the original manufacturer. Trademark Acknowledgement Brand and product names are trademarks or registered trademarks of their respective owners. - Page 4 7~23.8" P-Cap Open Frame Panel PC Quick Start Guide Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. These are Notes, Important, Cautions, and Warnings.
- Page 5 Preface Safety Precautions For your safety carefully read all the safety instructions before using the device. Keep this user manual for future reference. Always disconnect this equipment from any AC outlet before cleaning. Do not use liquid or spray detergents for cleaning. Use a damp cloth. ...
-
Page 6: Chapter 1: Introduction
Varies by product *Notice: Screw bolts provided by Winmate only to be used to screw the panel PC onto a console from the rear side. If you prefer your own bolts, please make sure to use M4 and 30mm in length... -
Page 7: Product Overview
This section describes physical appearance of the P-Cap Open Frame Panel PC. Notice that input and output connectors vary by product size and specifications. The picture above shows only a prototype model for information purposes only. 7”, W07IB3S-POT1 Unit: mm Dimensions: 198.3 x 116.1 x 42.7 №... - Page 8 7~23.8" P-Cap Open Frame Panel PC Quick Start Guide 10.1”, W10IB3S-POA1 Unit: mm Dimensions:279.28 x 168 x 41.1 № № Description Description ① ④ RJ-45 (LAN) x 2 RS-232/422/485 ② ⑤ HDMI 12V DC IN Power Jack ③ USB 2.0 x 1, USB 3.0 x 1 15”, R15IB3S-POC3 Unit: mm Dimensions:382 x 274.5 x 53.2...
- Page 9 Chapter 1: Introduction 15.6”, W15IB3S-POA4 Unit: mm Dimensions:375.5 x 252 x 48 № № Description Description ① RJ-45 (LAN) x 2 ④ RS-232/422/485 ② ⑤ HDMI 12V DC IN Power Jack ③ USB 2.0 x 1, USB 3.0 x 1 19”, R19IB3S-POM1 Unit: mm Dimensions: 438.9 x 382.3 x 54...
- Page 10 7~23.8" P-Cap Open Frame Panel PC Quick Start Guide 21.5”, W22IB3S-POA3 Unit: mm Dimensions:552 x 312.72 x 52.8 № № Description Description ① ④ RJ-45 (LAN) x 2 RS-232/422/485 ② ⑤ HDMI 12V DC IN Power Jack ③ USB 2.0 x 1, USB 3.0 x 1 23.8”, W24IB3S-POA2 Unit: mm Dimensions:593.6 x 382.3x 54...
-
Page 11: Chapter 2: Mounting
Chapter 2: Mounting Chapter 2: Mounting This chapter provides mounting guide for all available mounting options. Pay attention to cautions and warning to avoid any damages. WARNING! / AVERTISSEMENT! Follow mounting instructions and use recommended mounting hardware to avoid the risk of injury. Suivez les instructions de montage et d'utilisation recommandé... -
Page 12: Chapter 3: Installation
7~23.8" P-Cap Open Frame Panel PC Quick Start Guide Chapter 3: Installation This chapter provides hardware installation instructions and mounting guide for all available mounting options. Pay attention to cautions and warning to avoid any damages. 3.1 Cable Mounting Considerations For a nice look and safe installation, make sure cables are neatly hidden behind the device. -
Page 13: Connecting Power
Chapter 3: Installation 3.3 Connecting Power This section provides information on how to use connectors on the P-Cap Open Frame Panel PC. Notice that connectors are located on the top rear side of the device. Be cautious while working with these modules. Please carefully read the content of this chapter in order to avoid any damages. -
Page 14: Serial Port Connector
7~23.8" P-Cap Open Frame Panel PC Quick Start Guide 3.4.2 Serial Port Connector Use serial port to connect your panel PC to external devices such as mouse, modem or printer. Pin № RS232 RS422 RS485 TxD- TxD+ RxD+ RxD- Refer to User Manual for instructions on how to configure serial port settings. -
Page 15: Chapter 4: Operating The Device
OS settings. 4.2 How to Enable Watchdog To enable Watchdog, you need to download Winmate Watchdog utility. Find more information on Watchdog in “Watchdog Guide” that you can download from Winmate Download Center. Refer to the User Manual for more details. -
Page 16: Using Recovery Wizard To Restore Computer
7~23.8" P-Cap Open Frame Panel PC Quick Start Guide Example: Every 10 min watchdog will monitor the system, in case any error occurs the system will restart automatically when the countdown time reaches 0. Every 9 min watchdog timer will be reset to 10 min. -
Page 17: Chapter 5: Product Specifications
Chapter 5: Product Specifications Chapter 5: Product Specifications Model Name W07IB3S-POT1 W10IB3S-POA1 R15IB3S-POC3 W15IB3S-POA4 Display Size 7" 10.1" 15" 15.6" Resolution 1024 x 600 1920 x 1200 1024 x 768 1920x1080 Brightness Contrast Ratio 700:1 (typ.) 750:1 (typ.) 700:1 (typ.) 800:1 (typ.) - Page 18 7~23.8" P-Cap Open Frame Panel PC Quick Start Guide Model Name R19IB3S-POM1 W22IB3S-POA3 W24IB3S-POA2 Display 23.8” Size 19" 21.5" Resolution 1280 x 1024 1920 x 1080 1920 x 1080 Brightness Contrast Ratio 1000 : 1 (typ.) 1000:1 (typ.) 3000 : 1 (typ.) -89~89(H);...
-
Page 19: Chapter 6: Technical Support
Chapter 6: Technical Support Chapter 6: Technical Support Winmate provides the following SDK and Utilities for Open Frame Panel PC with Intel® Celeron® N2930: Item File Type Description Watchdog SDK Utility Watchdog Utility To find the Drivers and SDK, please refer to the Driver CD that comes in the package or contact us. - Page 20 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C www.winmate.com Copyright © Winmate Inc. All rights reserved.
