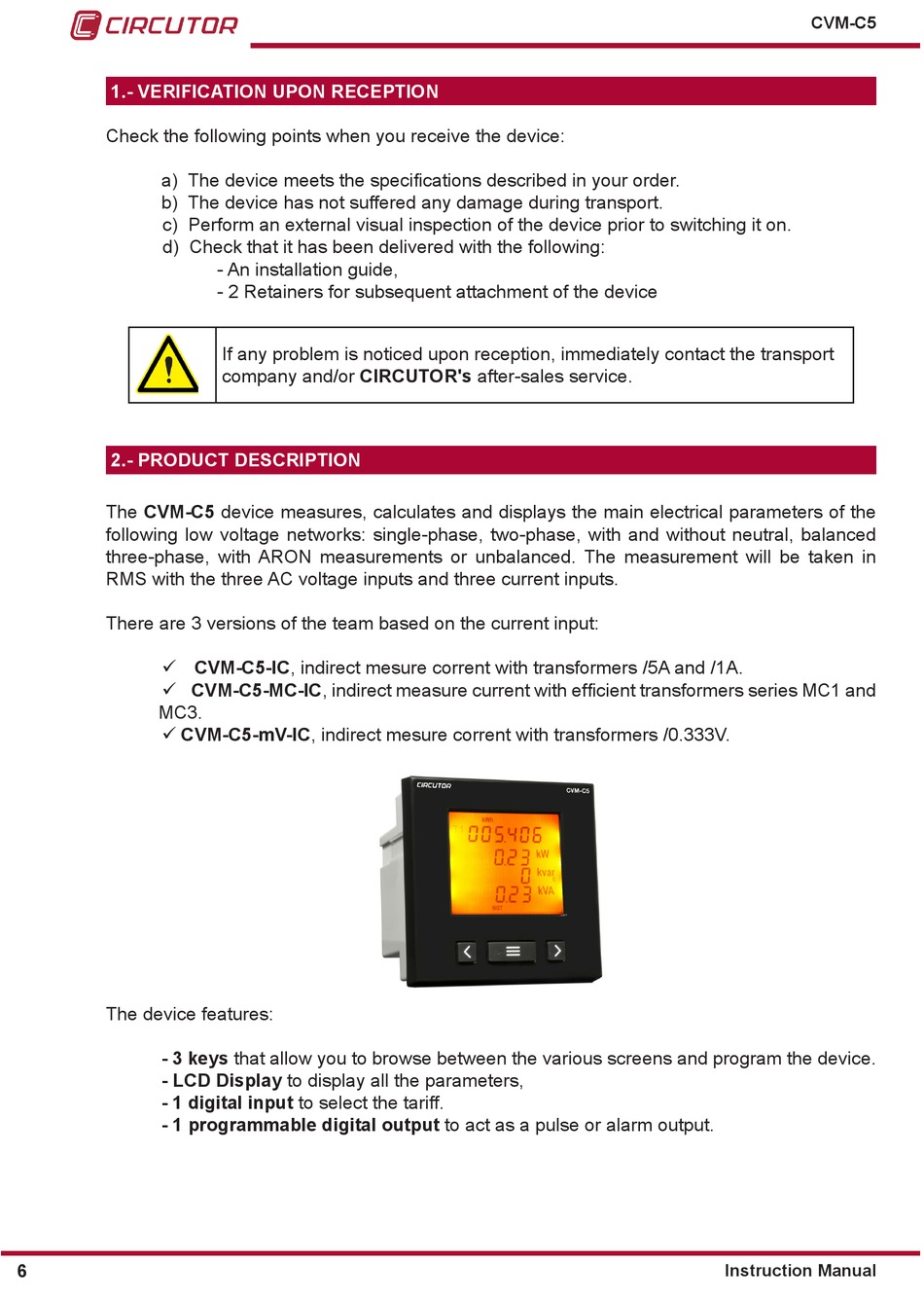

1�- Verification Upon Reception; 2�- Product Description - Circutor CVM-C5-IC Instruction Manual

1�- VERIFICATION UPON RECEPTION
Checkthefollowingpointswhenyoureceivethedevice:
 a)Thedevicemeetsthespecificationsdescribedinyourorder�
 b)Thedevicehasnotsufferedanydamageduringtransport�
c)Performanexternalvisualinspectionofthedevicepriortoswitchingiton�
d)Checkthatithasbeendeliveredwiththefollowing:

2�- PRODUCT DESCRIPTION
TheCVM-C5 devicemeasures,calculatesanddisplaysthemainelectricalparametersofthe
following low voltage networks: single-phase, two-phase, with and without neutral, balanced
three-phase, with ARON measurements or unbalanced� The measurement will be taken in
RMSwiththethreeACvoltageinputsandthreecurrentinputs�
Thereare3versionsoftheteambasedonthecurrentinput:
 CVM-C5-IC,indirectmesurecorrentwithtransformers/5Aand/1A�
 CVM-C5-MC-IC,indirectmeasurecurrentwithefficienttransformersseriesMC1and
MC3�
 CVM-C5-mV-IC,indirectmesurecorrentwithtransformers/0�333V�
Thedevicefeatures:
- 3 keysthatallowyoutobrowsebetweenthevariousscreensandprogramthedevice�
- LCD Displaytodisplayalltheparameters,
- 1 digital inputtoselectthetariff�
- 1 programmable digital outputtoactasapulseoralarmoutput�
6
-Aninstallationguide,
 -2Retainersforsubsequentattachmentofthedevice
Ifanyproblemisnoticeduponreception,immediatelycontactthetransport
companyand/orCIRCUTOR'safter-salesservice�
CVM-C5
Instruction Manual
