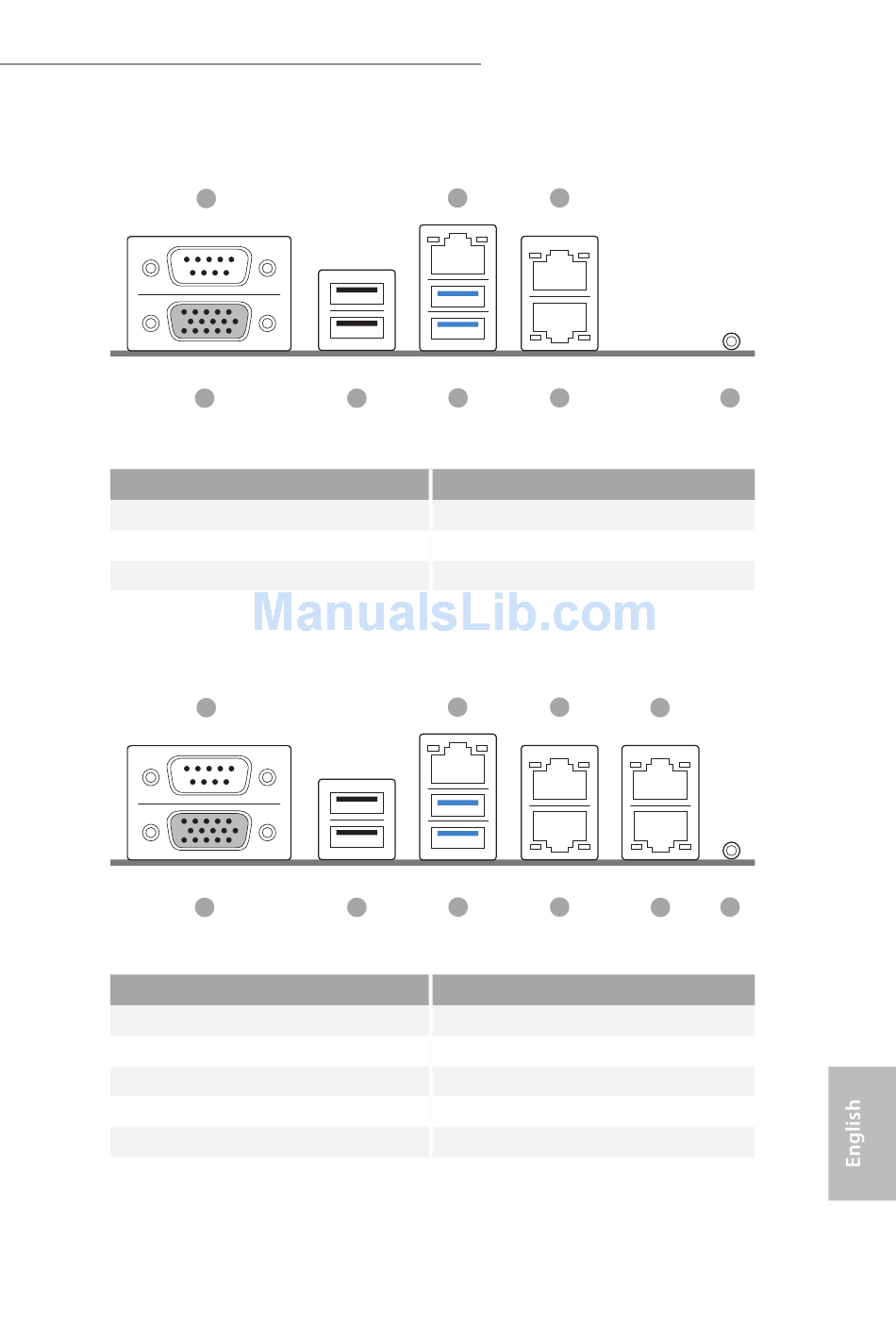

1.6 I/O Panel

2
1
EP2C612D24
No. Description
1 Serial Port (COM1)
2 VGA Port (VGA1)
3 USB 2.0 Ports (USB_1_2)
4 USB 3.0 Ports (USB3_1_2)
Note: LAN1 supports NCSI.
2
1
EP2C612D24-4L
No. Description
1 Serial Port (COM1)
2 VGA Port (VGA1)
3 USB 2.0 Ports (USB_1_2)
4 USB 3.0 Ports (USB3_1_2)
5 LAN RJ-45 Port (IPMI_LAN)*
Note: LAN1 supports NCSI.
EP2C612D24 / EP2C612D24-4L
5
3
4
No. Description
5 LAN RJ-45 Port (IPMI_LAN)*
6 LAN RJ-45 Port (LAN1)**
7 LAN RJ-45 Port (LAN2)**
8 UID Switch (UID)
5
3 4
No. Description
6 LAN RJ-45 Port (LAN1)**
7 LAN RJ-45 Port (LAN2)**
8 LAN RJ-45 Port (LAN3)**
9 LAN RJ-45 Port (LAN4)**
10 UID Switch (UID)
7
6
7
9
6 8 10
8
